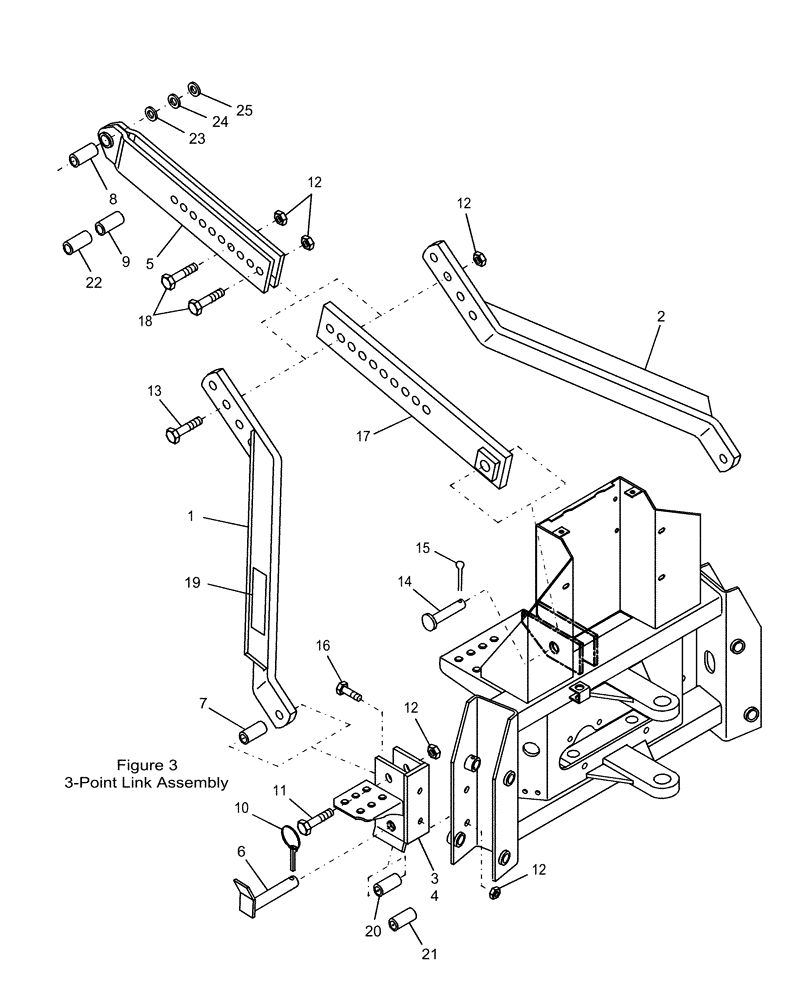

Запчасти Case IH 716393006 (11) - UPPER LINK CAT I/II, 3-POINT APPLICATIONS, 716495016

1

SML455051

SUPPORT

Brace, Left

1шт.

2

SML455052

SUPPORT

Brace,, Right

1шт.

3

SML501391

BRACKET

Mounting, Bracket, Left

1шт.

4

SML501392

BRACKET

Mounting, Bracket, Right

1шт.

5

SML50133

LINK

Front, Center

1шт.

6

SML45112

PIN

Hitch Pin

2шт.

7

SML501411

BUSHING

1.22 long x .88 ID x 1.75 OD

2шт.

8

SML425885

BUSHING

1.88 long x 3/4 ID x 1.25 OD (Upper 3-pt)

1шт.

9

SML501371

BUSHING

1.88 long 1.00 ID x 1.25 OD (Upper 3-pt)

1шт.

10

SML447561

PIN

Lynch Pin

2шт.

11

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

Screw, Cap, HH, G5, 3/4"-10 x 3-1/2"

2шт.

12

280375

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

9шт.

13

88007

BOLT,Hex, 3/4" - 10 x 4 1/2", Gr 5

HH, G5, 3/4"-10 x 4-1/2"

1шт.

14

SML602153

PIN

Clevis Pin, 1 x 3-7/8"

1шт.

15

88182

COTTER PIN,1/4" OD x 2" L

Pin, Split (Cotter), 1/4" x 2"

1шт.

16

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

4шт.

17

SML45107

CONNECTING LINK

Link, Rear, Center

1шт.

18

280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

Screw, Cap, HH, G5, 3/4"-10 x 2-3/4"

2шт.

19

SML45491

DECAL

Warning

2шт.

20

SML451141

BUSHING

1.88 long x .88 ID x 1-1/8 OD (Cat II 3 Point Hitch)

2шт.

21

SML501351

BUSHING

1.88 long x .88 ID x 1.44 OD (Cat III 3 Point Hitch)

2шт.

22

SML501361

BUSHING

2.00 long x .1-1/8 ID x 1.25 OD (Upper 3 Point)

1шт.

23

SML425776

WASHER

Machinery, 3/4 ID

2шт.

24

SML425775

WASHER

Machinery, 1.00 ID

2шт.

25

SML425777

WASHER

Machinery, 1-1.8 ID

2шт.
