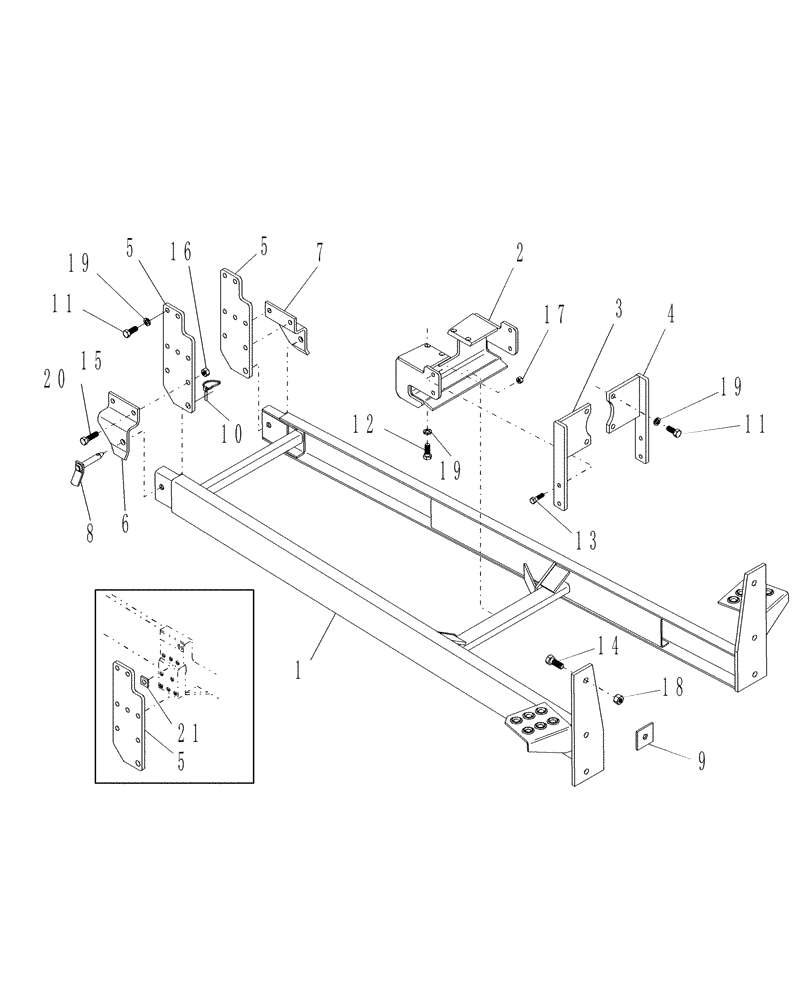

Запчасти Case IH 716393006 (10) - SUBFRAME, 716394016 - DX48 & DX55

1

SML45400

FRAME ASSY

Subframe, Backhoe

1шт.

2

SML51499

SUPPORT

Bracket, Subframe Mounting

1шт.

3

SML449221

SUPPORT

Subframe Rear Mounting, Left

1шт.

4

SML449222

SUPPORT

Subframe Rear Mounting, Right

1шт.

5

SML51179

MOUNTING PLATE

Plate, Mounting, Subframe Mid Hanger

2шт.

6

SML511891

BRACKET

Subframe Mid Hanger, Left

1шт.

7

SML511892

BRACKET

Subframe Mid Hanger, Right

1шт.

8

SML44892

PIN,3.25" L

Hitch

2шт.

9

SML31897

SPACER

Flat

2шт.

10

SML447561

PIN

Linch

2шт.

11

PL

PROCURE LOCALLY

Screw, Cap, Hex, 16MM-2.0 x 40MM

14шт.

12

PL

PROCURE LOCALLY

Screw, Cap, Hex, 16MM-2.0 x 45MM

4шт.

13

PL

PROCURE LOCALLY

Screw, Cap, Hex, 1/2-13 x 1-1/2"

4шт.

14

PL

PROCURE LOCALLY

Screw, Cap, Hex, 3/4-10 x 2"

6шт.

15

PL

PROCURE LOCALLY

Screw, Cap, Hex, 5/8-11 x 1-3/4"

4шт.

16

PL

PROCURE LOCALLY

Nut, Hex, Lock, 5/8-11

4шт.

17

PL

PROCURE LOCALLY

Nut, Hex, Lock, 1/2-13

4шт.

18

PL

PROCURE LOCALLY

Nut, Hex, Lock, 3/4-10

6шт.

19

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

18шт.

20

PL

PROCURE LOCALLY

Screw, Cap, Hex, 5/8"-11 x 2-1/4"

4шт.

21

SML51210

SPACER

Used When Mounting Loader

1шт.
