Запчасти Case IH 716393006 (60) - SEAT

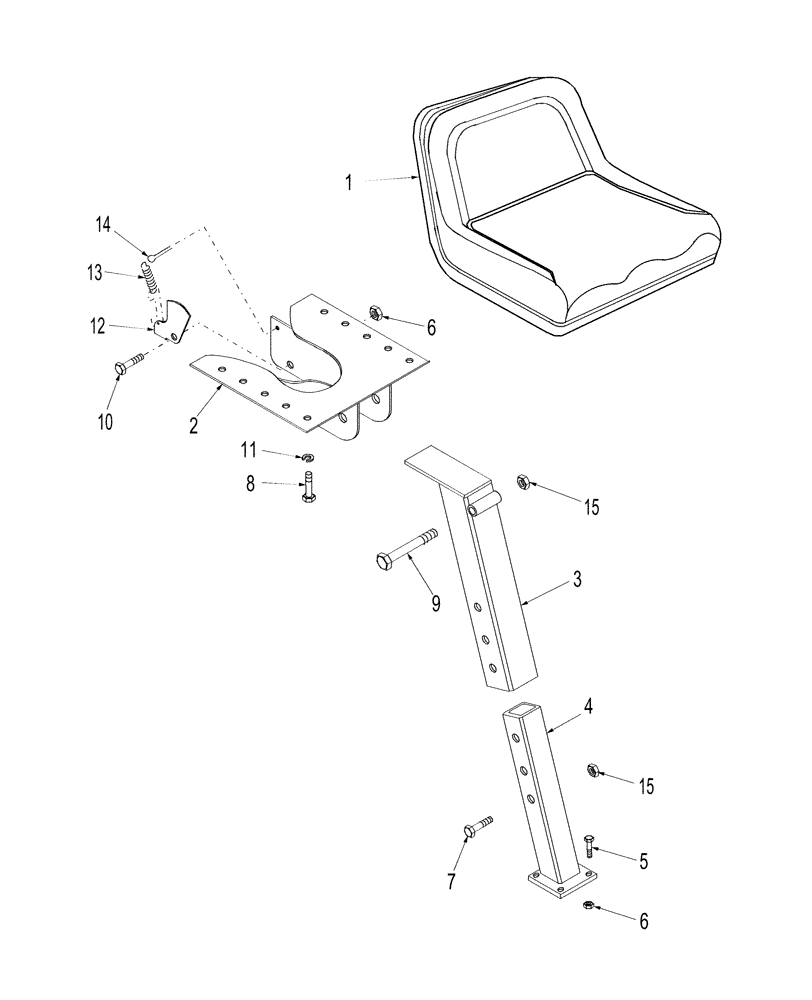

Схема запчастей Case IH 716393006 - (60) - SEAT
2
6
3
5
12
9
15
7
4
6
11
13
15
10
14
1
8

Артикул

Название

Примечание

Количество

1

SML52139

SEAT

1шт.

2

Plate, Seat

1шт.

3

CSE44773

BRACKET

Pedestal, Upper

1шт.

4

CSE45116

SPARE PART

Post, Seat

1шт.

5

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

6

88902

NUT,3/8"-16

NUT, 3/8"-16, GC

5шт.

7

280234

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

Screw, Cap, HH, G5, 1/2"-13 x 3"

2шт.

8

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Screw, Cap, HH, G5, 5/16"-18 x 3/4"

10шт.

9

NLS

NO LONGER SERVICED

Screw, Cap, HH, Drilled, G5, 1/2"-20 x 3-1/2"

1шт.

10

SML247135

BOLT

Shoulder, 3/8"-16 x 1-1/2"

1шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

12

SML44814

LATCH

Spacer

1шт.

13

SML44819

SPRING

1шт.

14

87019

COTTER PIN,3/16" x 3/4"

3/16" x 3/4"

1шт.

15

9636698

NUT,1/2"-13, GB

NUT, LOCK, GC, 1/2"-13

3шт.

Выбрано товаров: 15
