Запчасти Case IH 716392006 (17) - BOOM

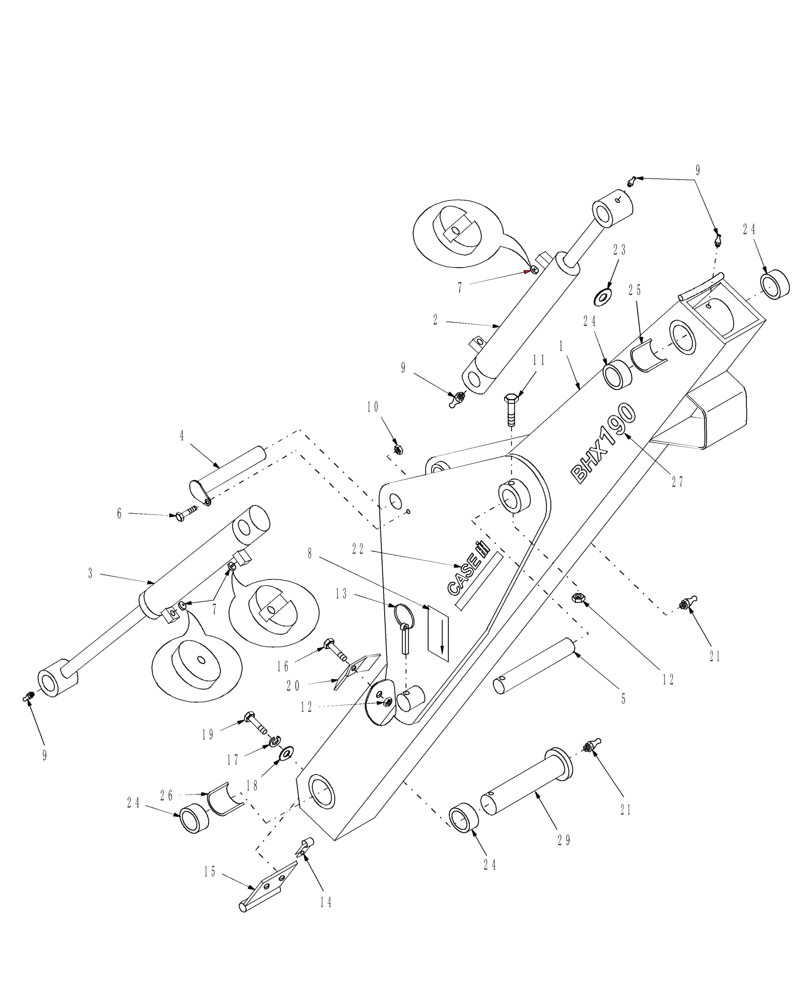

Схема запчастей Case IH 716392006 - (17) - BOOM
21
18
6
10
1
17
29
15
27
9
9
19
26
9
13
2
4
24
24
14
20
12
8
24
23
7
5
16
7
11
25
22
12
24
3
21

Артикул

Название

Примечание

Количество

1

CSE49221

BOOM

1шт.

2

CSE44838

CYLINDER,Double Acting, 425.45mm Stroke

Dipperstick, 2-3/4"

1шт.

3

CSE44545

CYLINDER,Double Acting, 425.45mm Stroke

Boom, 2-3/4"

1шт.

4

SML313328

PIN

Dipper Stick Base, 1 x 5"

1шт.

5

SML44853

PIN,25.4mm OD x 155.45mm L

Lift Cylinder, Base 1 x 6"

1шт.

6

SML31353

BOLT

Sholder Bolt, 3/8 - 16 x 1"

1шт.

7

SML44942

RESTRICTOR VALVE

Restrictor, 0.078

3шт.

8

SML44908

DECAL

Boom Lock

1шт.

9

SML60754

LUBE NIPPLE

Fitting, Grease, 1/4"-28

4шт.

10

88902

NUT,3/8"-16

NUT, 3/8"-16, GC

1шт.

11

PL

PROCURE LOCALLY

Screw, Cap, HH, G5, 5/16"-18 x 2"

1шт.

12

88902

NUT,3/8"-16

Nut, Lock, 5/16 - 18

1шт.

13

SML60752

LUBE NIPPLE

Pin, Lynch, 5/16-18 x 1-5/8"

1шт.

14

9626645

NUT

Speed, 5/16"-18

2шт.

15

CSE44767

HOSE CLAMP

Clamp, Hose

1шт.

16

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

Screw, Cap, HH, G5, 3/8"-16 x 1-1/2"

1шт.

17

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

20

86583623

CLAMP

1шт.

21

SML60752

LUBE NIPPLE

Fitting, Grease, 1/8 NPT

2шт.

22

CSE51467

DECAL

CASE IH

2шт.

23

SML60799

GROMMET

Rubber

1шт.

24

SML474051

BUSHING

1.25" ID x 1.50" OD

4шт.

25

SML482712

SPACER

1-15/16"

1шт.

26

SML4827110

SPACER

1-7/16"

1шт.

27

CSE51464

DECAL

BHX190

2шт.

29

SML44833

PIN

Boom Base, 1-1/4 x 6-1/2"

1шт.

Выбрано товаров: 28
