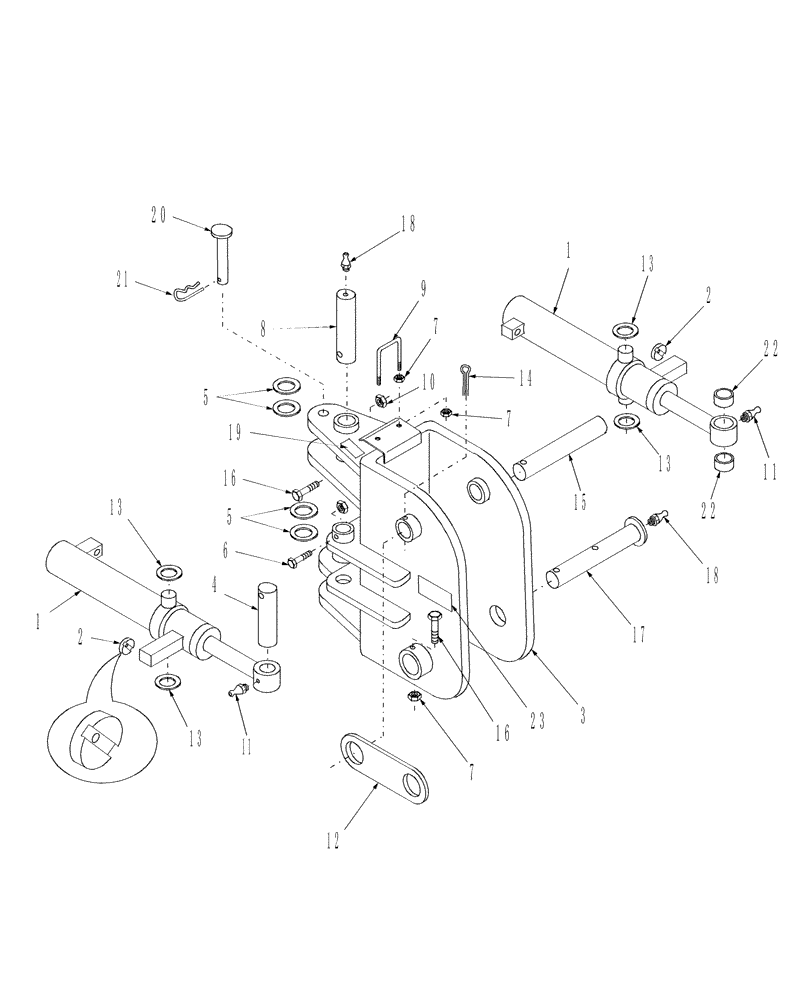

Запчасти Case IH 716392006 (13) - SWING POST & SWING CYLINDERS

1

CSE44524

HYDRAULIC CYLINDER,227.84mm Stroke

Swing, 2-1/4" with Bronze Bushings

2шт.

2

SML33740

PLATE

Restrictor, 0.062

2шт.

3

CSE44712

FRAME

Swing

1шт.

4

SML359576

PIN

Swing Cylinder, 1 x 4-3/4

2шт.

5

SML44873

BUSHING

Machine, 1-1/2 I.D. x 2-1/4 O.D. x 0.09 Thickness

8шт.

6

280649

BOLT,Tap, Hex, 5/6" - 18 x 2", Gr 5

Screw, Cap, HH, G5, 5/16"-18 x 2"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

Lock, 5/16 - 18

6шт.

8

SML44832

PIN

Swing Post, 1-1/2 x 4

2шт.

9

SML44813

U-BOLT

Clamp, U-Bolt, 5/16

1шт.

10

9637692

NUT,3/8"-16, GB

NUT, LOCK, 3/8 - 16

3шт.

11

SML60754

LUBE NIPPLE

Fitting, Lube, Straight, 1/4"-28

2шт.

12

CSE44869

LOCK

Boom

1шт.

13

PL

PROCURE LOCALLY

Bushing, machine, 1" ID

4шт.

14

PL

PROCURE LOCALLY

Pin, Cotter, 5/16" x 2-1/2"

1шт.

15

SML466321

PIN

Boom Cylinder Base, 1 x 7-1/4

1шт.

16

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Hex, 3/8"-16 x 2-1/2", G5

2шт.

17

SML44833

PIN

Boom Base, 1-1/4 x 7-1/4

1шт.

18

SML60752

LUBE NIPPLE

Fitting, Grease, 1/8 NPT

3шт.

19

SML44909

DECAL

Swing Lock

4шт.

20

SML602113

PIN

Swing Lock, 3/4 x 3, Clevis

1шт.

21

SML419011

PIN, SPLIT (COTTER)

Pin, Cotter, Hair, Int, 2-3/4" L

1шт.

22

SML452523

BUSHING

1" I.D. x 1.25" O.D.

4шт.

23

SML44908

DECAL

Boom, Lock

1шт.
