Запчасти Case IH 716392006 (62) - HEAVY DUTY, GRAVE & MUCK BUCKETS

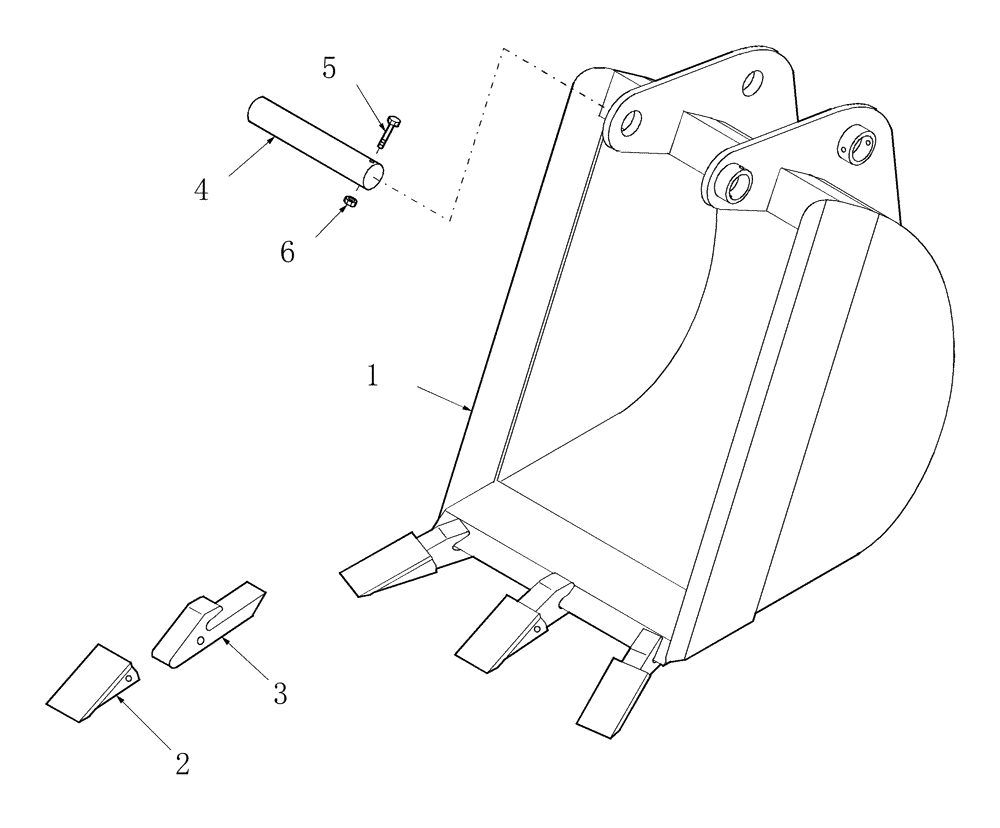

Схема запчастей Case IH 716392006 - (62) - HEAVY DUTY, GRAVE & MUCK BUCKETS
5
1
4
6
2
3

Артикул

Название

Примечание

Количество

1

W0

ORDER WHOLEGOODS

Heavy Duty Bucket, 12", 3 Teeth, 1.24 Heaped, {9864036, 716433001, 716433016}

1шт.

BHX190

1шт.

1

W0

ORDER WHOLEGOODS

Heavy Duty Bucket, 12", 3 Teeth, 1.24 Heaped, {716433006, 716433026}

1шт.

BHX1102

1шт.

1

W0

ORDER WHOLEGOODS

Heavy Duty Bucket, 16", 3 Teeth, 1.76 Heaped, {716494016, 716494036}

1шт.

BHX190

1шт.

1

W0

ORDER WHOLEGOODS

Heavy Duty Bucket, 16", 3 Teeth, 1.76 Heaped, {716494026, 716494046}

1шт.

BHX1102

1шт.

1

W0

ORDER WHOLEGOODS

Heavy Duty Bucket, 18", 4 Teeth, 2.02 Heaped, {716407006, 716407016}

1шт.

BHX1102

1шт.

1

W0

ORDER WHOLEGOODS

Heavy Duty Bucket, 24", 5 Teeth, 2.82 Heaped, {716493016, 716493026}

1шт.

BHX1102

1шт.

1

W0

ORDER WHOLEGOODS

Grave Bucket, 36", 6 Teeth, 4.00 Heaped, {9864038, 716435001}

1шт.

BHX190

1шт.

1

W0

ORDER WHOLEGOODS

Muck Bucket, 36", 6 Teeth, 4.00 Heaped, {9864039, 716436001, 716436016}

1шт.

BHX190

1шт.

2

SML448671

BUCKET TOOTH

Tooth

1шт.

3

SML41703

SHANK

1шт.

4

SML359578

PIN

1 x 8-1/8

2шт.

5

280649

BOLT,Tap, Hex, 5/6" - 18 x 2", Gr 5

HH, Tap, G5, 5/16"-18 x 2"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

G5, 5/16"-18

2шт.

Выбрано товаров: 21
