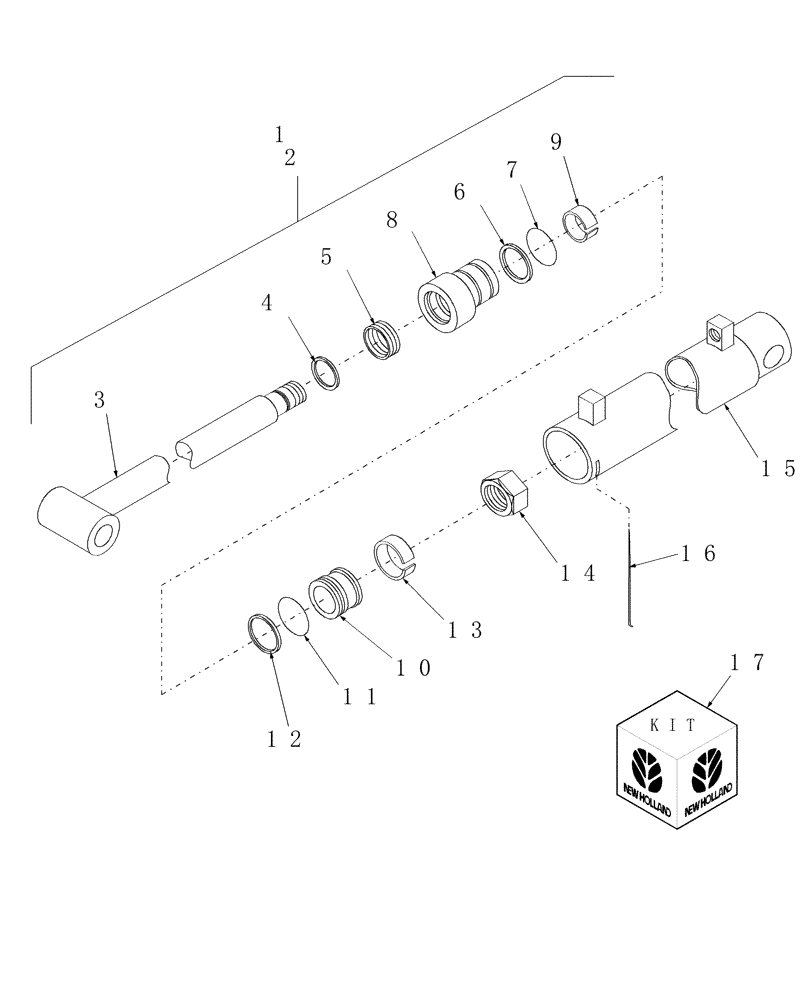

Запчасти Case IH 716392006 (53) - BOOM & DIPPER CYLINDER

1

CSE44545

CYLINDER,Double Acting, 425.45mm Stroke

Assy., Boom, 2-3/4"

1шт.

2

CSE44838

CYLINDER,Double Acting, 425.45mm Stroke

Dipper Cylinder Assy., 2-3/4

1шт.

3

SML44544

ROD

Weldment, 1.5" (Boom Cylinder)

1шт.

3

SML44839

ROD

Weldment, 1.5" (Dipper Cylinder)

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Wiper

1шт.

5

NSS

NOT SOLD SEPARAT

Seal, V-Cup

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

8

86581661

CYLINDER HEAD

Head, Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

10

86581662

PISTON

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

12

NSS

NOT SOLD SEPARAT

Seal Piston

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

14

SML329032

LOCK NUT

Lock, G8, 1"-14

1шт.

15

CSE44540

TUBE ASSY.

Cylinder Tube, Weldment (Boom Cylinder)

1шт.

15

CSE44837

TUBE ASSY.

Cylinder, Tube, Weldment (Dipper Cylinder)

1шт.

16

NSS

NOT SOLD SEPARAT

Lockwire

1шт.

17

86581665

SEAL KIT

Repair Kit. Includes: Ref. 4 thru 7, 9, 11 thru 13, 16

1шт.
