Запчасти Case IH 716392006 (34) - HYDRAULIC KIT - 715396016 - DX29 S/N HBA010464 AND UP & DX33 S/N HBA010010 AND UP

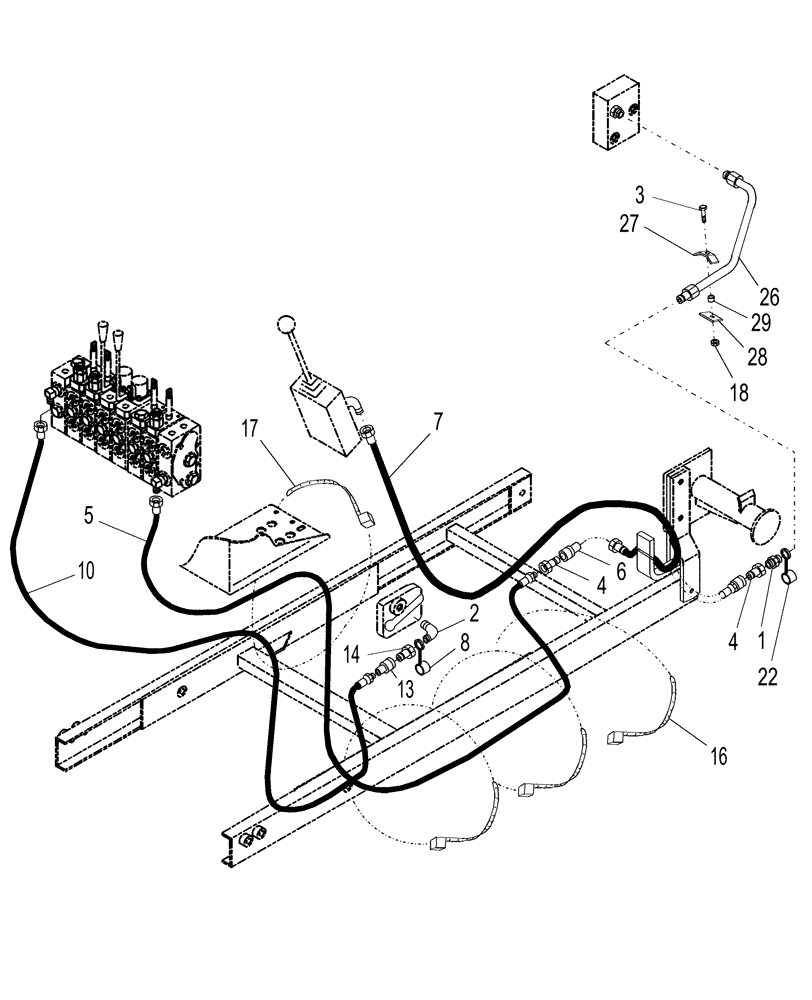

Схема запчастей Case IH 716392006 - (34) - HYDRAULIC KIT - 715396016 - DX29 S/N HBA010464 AND UP & DX33 S/N HBA010010 AND UP
5
22
27
7
28
16
29
3
14
2
4
1
26
10
4
17
18
6
8
13

Артикул

Название

Примечание

Количество

1

SML312213

ADAPTER

Fitting, 3/4 JIC x 3/8 NPTF

1шт.

2

SML346442

ELBOW

Fitting, 1/2 NPT x 3/8 NPT, 90 Degrees

1шт.

3

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

4

86583622

ADAPTER

Quick Coupler, Male, 3/8

2шт.

5

SML3633613

HOSE,0.38" ID x 90.00"

- 3/4 - 16 JIC x 3/8 NPT 0.38" ID x 90.00"

1шт.

6

86583553

ADAPTER

Quick Coupler, Female, 3/8

1шт.

7

SML521581

HOSE

1/2 x 24" 3/4-16 JIC x 3/8 NPT

1шт.

8

86581687

COVER

Dustcap, 1/2

1шт.

9

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Screw, Cap, 5/16-18 x 3/4 GR5

2шт.

10

SML410534

HOSE,0.50" ID x 72.00"

- 3/4 JIC x 1/2 NPT 0.50" ID x 72.00"

1шт.

11

86629544

NUT,5/16” – 18, GR B

NUT LOCK, 5/16"-18, GB

4шт.

12

86505972

BOLT,5/16" - 18 x 2 - 1/4", Gr 5

Screw, 5/16-18 x 2-1/4 GR5

2шт.

13

SML61478

COUPLING, QUICK, FEM

Quick Coupler, Female, 1/2

1шт.

14

SML61376

QUICK MALE COUPLING

Quick Coupler, Male, 1/2

1шт.

15

SML51000

PLATE

Flat, Toolbox Bracket Relocation

1шт.

16

86581720

SECURING STRAP

Strap, Tie, Adjustable, 1/2x20"

3шт.

17

SML81376

CABLE TIE

Strap, Adjustable Tie, 5/16" x 11"

1шт.

18

9637692

NUT,3/8"-16, GB

NUT, LOCK, 3/8-16

1шт.

19

SML50997

BRACKET

Seat Stop

1шт.

20

SML50998

BRACKET

Toolbox

1шт.

21

SML50999

BRACKET

Lock, Toolbox

1шт.

22

86583637

DUST CAP

CAP Dust, 3/8

1шт.

23

88616

BOLT,Hex, 3/8" - 16 x 1.50", Gr 5

2шт.

24

SML52161

BRACKET

Extension Flat

1шт.

25

87362

WASHER,5/16" SAE

Flat, 5/16

2шт.

26

SML52160

HOSE

Oil Line

1шт.

27

86583623

CLAMP

1шт.

28

SML52159

CLAMP

Flat

1шт.

29

313458A1

SPACER

3/4 O.D. x 7/16" Long

1шт.

Выбрано товаров: 29
