Запчасти Case IH 716392006 (33) - HYDRAULIC KIT - 716397016 - D25, DX25, D29, DX29, D33, DX33 TRACTORS

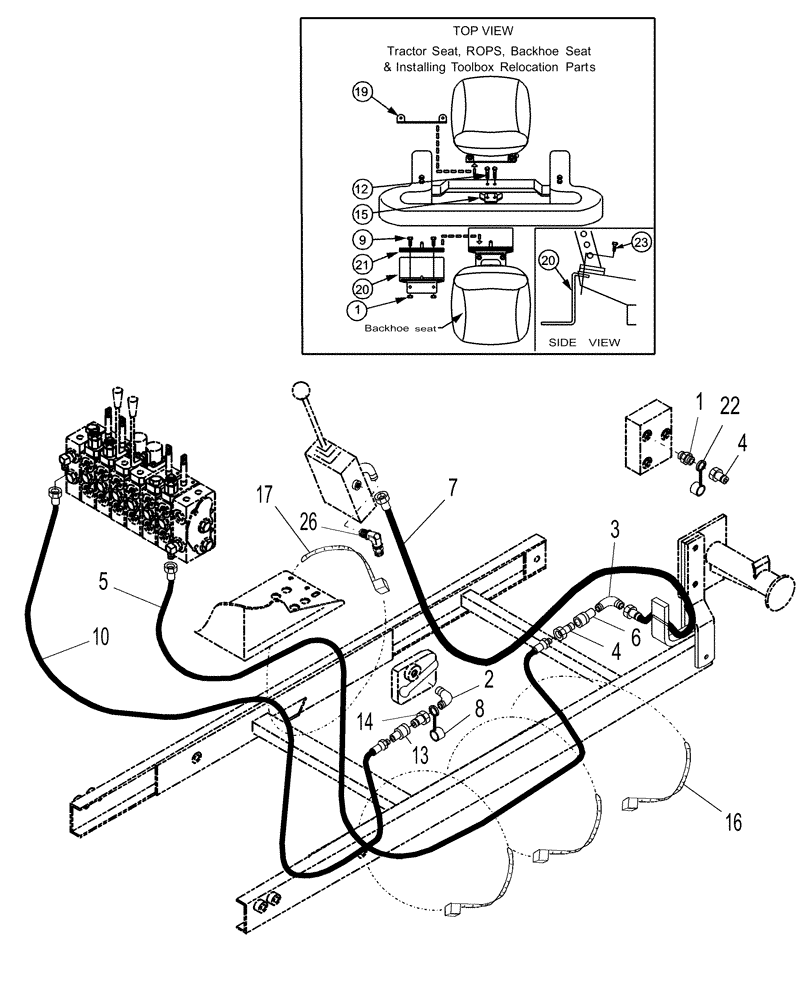

Схема запчастей Case IH 716392006 - (33) - HYDRAULIC KIT - 716397016 - D25, DX25, D29, DX29, D33, DX33 TRACTORS
8
s
r
1
7
actor
5
13
side
4
2
14
6
top view
t
10
view
nst
26
i
backhoe
17
seat
oolbox
4
t
part
alling
backhoe
s
16
r
3
relocation
seat
22

Артикул

Название

Примечание

Количество

1

87560

HYD CONNECTOR

Fitting, Adapter, 3/8 x 3/8

1шт.

2

SML346442

ELBOW

Fitting, Elbow, 1/2 NPT x 3/8 NPT, 90°

1шт.

3

86513075

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1/2"-14 NPTF, LG

Fitting Elbow, 3/4 - 16 JIC x 3/8 NPT, 90°

1шт.

4

86583622

ADAPTER

Quick Coupler, Male, 3/8

2шт.

5

SML3633613

HOSE,0.38" ID x 90.00"

- 3/4 - 16 JIC x 3/8 NPT 0.38" ID x 90.00"

1шт.

6

86583553

ADAPTER

Quick Coupler, Female, 3/8

1шт.

7

SML387929

HOSE,0.50" ID x 38.00"

0.50" ID x 38.00"

1шт.

8

86581687

COVER

Dustcap, 1/2

1шт.

9

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Screw, Cap, HH, G5, 5/16"-18 x 3/4"

2шт.

10

SML410534

HOSE,0.50" ID x 72.00"

- 3/4 JIC x 1/2 NPT 0.50" ID x 72.00"

1шт.

11

86629544

NUT,5/16” – 18, GR B

NUT LOCK, 5/16"-18, GB

1шт.

12

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

Screw, Cap, HH, G5, 3/8"-16 x 2-1/4"

2шт.

13

SML61478

COUPLING, QUICK, FEM

Quick Coupler, Female, 1/2

1шт.

14

SML61376

QUICK MALE COUPLING

Quick Coupler, Male, 1/2

1шт.

15

SML51000

PLATE

Spacer, Flat, Toolbox Bracket Relocation

1шт.

16

86581720

SECURING STRAP

Strap, Tie, Adjustable, 1/2x20"

3шт.

17

SML81376

CABLE TIE

Strap, Adjustable Tie, 5/16" x 11"

1шт.

18

9637692

NUT,3/8"-16, GB

NUT, LOCK, 3/8-16

2шт.

Not Illustrated

1шт.

19

SML50997

BRACKET

Seat Stop

1шт.

20

SML50998

BRACKET

Toolbox

1шт.

21

SML50999

BRACKET

Lock, Toolbox

1шт.

22

86583637

DUST CAP

Dustcap, 3/8

1шт.

23

88616

BOLT,Hex, 3/8" - 16 x 1.50", Gr 5

2шт.

24

SML52161

BRACKET

Flat, Extension

1шт.

25

87362

WASHER,5/16" SAE

Flat, 5/16

1шт.

26

313458A1

SPACER

Fitting, Elbow, 3/4-16 O-Ring x 7/8-14 JIC Male

1шт.

Выбрано товаров: 27
