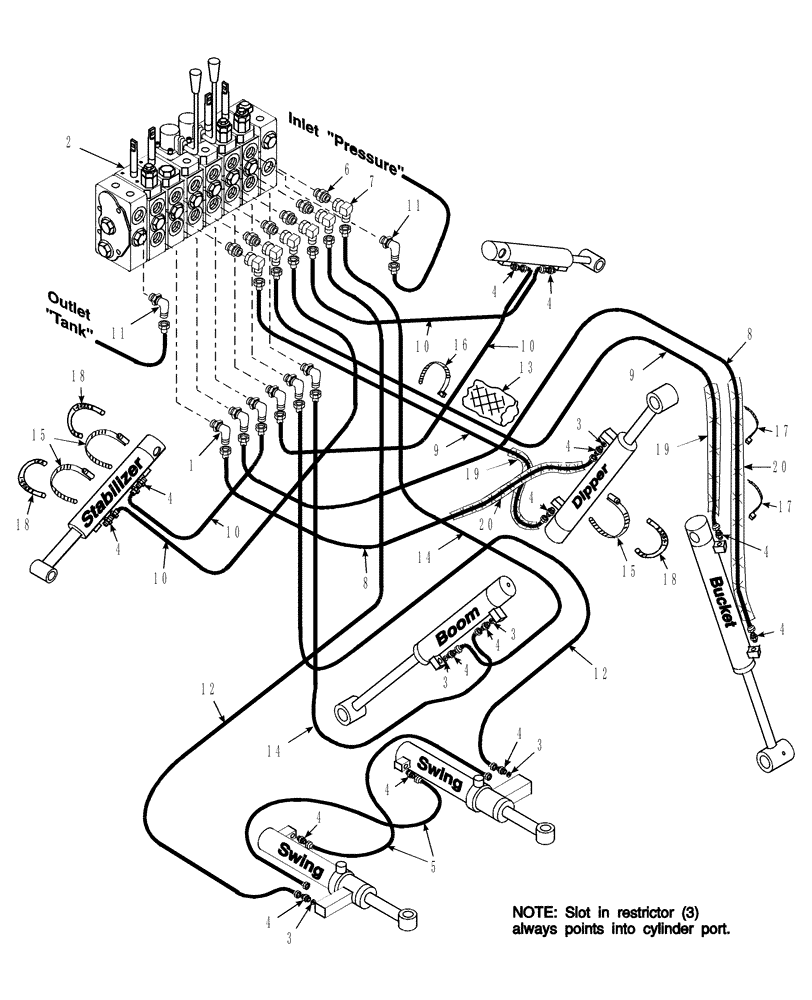

Запчасти Case IH 716392006 (29) - HYDRAULIC HOSES & FITTINGS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Fitting, Elbow, 9/16 - 18 JIC x 3/4 O-Ring, 90o

6шт.

1a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Not Illustrated

1шт.

2

SML44752

CONTROL VALVE

Valve, Gresen V-10 Refer to Fig. 27 for breakdown

1шт.

3

SML44942

RESTRICTOR VALVE

Restrictor, 0.074 (NOTE: Slot In Restrictor (3) Always Points Into Cylinder Port.)

5шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

CONNECTOR, HYD., 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

4

86509028

HYD CONNECTOR,3/4" - 16 JIC x 9/16" - 18 ORB

37° FL to O-Ring, 1/2" Tube, W/O-Ring

1шт.

4a

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Not Illustrated

1шт.

5

SML382909

HOSE

1/4 x 24" (Swing Cylinder to Swing Cylinder)

2шт.

6

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

Fitting, Adapter, 3/4 O-Ring x 9/16 JIC

6шт.

6a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Not Illustrated

1шт.

7

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

90°, Swivel Nut, 9/16"-18 Male Flare

6шт.

8

SML3283713

HOSE,0.25" ID x 124.00"

(Dipper & Bucket Rod) 0.25" ID x 124.00"

2шт.

9

SML3283711

HOSE,0.25" ID x 108.00"

(Dipper & Bucket Base) 0.25" ID x 108.00"

2шт.

10

SML3283710

HOSE,0.25" ID x 54.00"

(Stabilizer to Valve) 0.25" ID x 54.00"

4шт.

11

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

11a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Not Illustrated

1шт.

12

SML328379

HOSE,0.25" ID x 40.00"

(Swing Cylinder to Valve) 0.25" ID x 40.00"

2шт.

13

SML348532

SLEEVE

Nylon Sleeve

1шт.

14

SML3283712

HOSE,0.25" ID x 66.00"

0.25" ID x 66.00"

2шт.

15

SML60762

CLAMP

Hose Clamp

6шт.

16

86581720

SECURING STRAP

Strap, Tie, Adjustable, 1/2x20"

2шт.

17

86582400

STRAP

Adjustable Tie, 3/16" x 11"

6шт.

18

SML448651

LOOM

Woven Cotton Loom, Protector

12шт.

19

SML3485321

SLEEVE

Nylon, 33"

2шт.

20

SML3485330

SLEEVE

Nylon, 50"

2шт.
