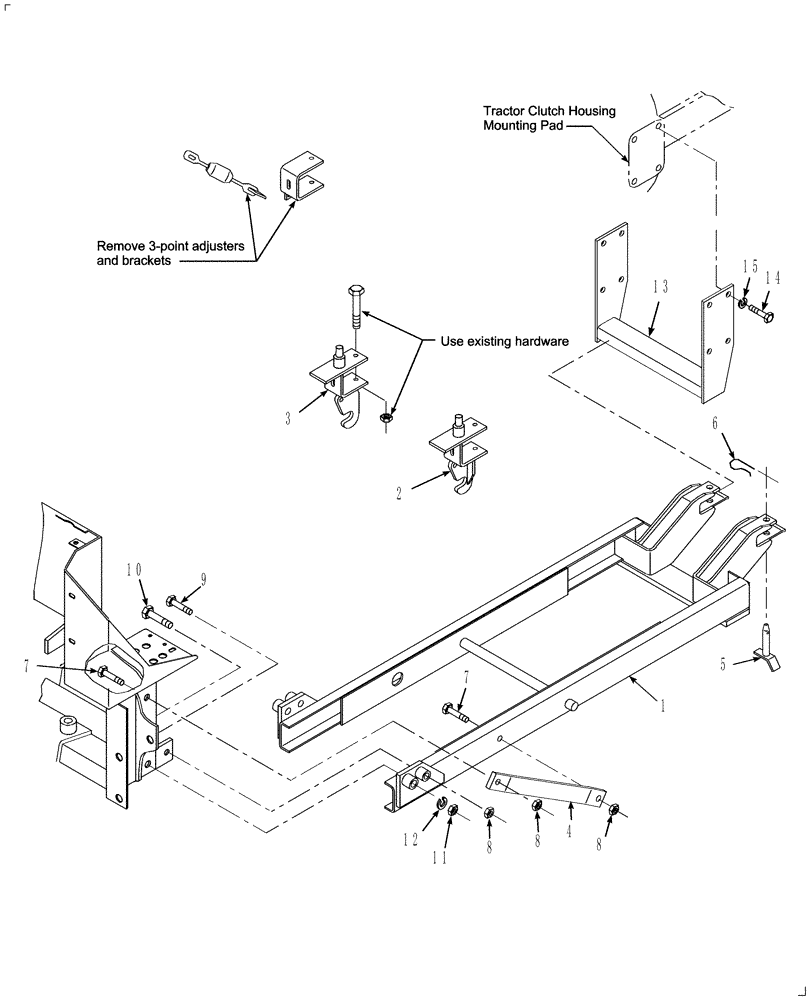

Запчасти Case IH 715651026 (05[A]) - SUBRAME. 715651026 - DX21,DX23,DX24,DX26

1

SML46010

FRAME

Subframe

1шт.

2

SML464582

BRACKET

Bracket, Rear Axle, Right

1шт.

3

SML464581

BRACKET

Bracket, Rear Axle, Left

1шт.

4

SML44836

SUPPORT

Brace, Rear

2шт.

5

SML44892

PIN,3.25" L

Pin, Clevis, 3/4"x3"

2шт.

6

SML447561

PIN

Pin, Hair, Cotter

2шт.

7

PL

PROCURE LOCALLY

Screw, Cap, 3/4"-10 x 2 Grade 8

4шт.

8

280375

NUT,3/4"-10, GC

Nut, Lock, GC, 3/4"-10

8шт.

9

86977759

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 5

Screw, Cap, HH, G5, 3/4"-10 x 3-1/2"

2шт.

10

PL

PROCURE LOCALLY

Screw, Cap, 7/8"-9x4"

2шт.

11

9849647

NUT,7/8"-9, G5

Nut, G5, 7/8"-9

2шт.

12

87341

LOCK WASHER,7/8"

Washer, Lock, 7/8"

2шт.

13

NSS

NOT SOLD SEPARAT

Bracket, Center Support

1шт.

14

848780

BOLT

16mm-2.0x40mm

8шт.

16

12034871

WASHER

Washer, Lock, 5/8"

8шт.
