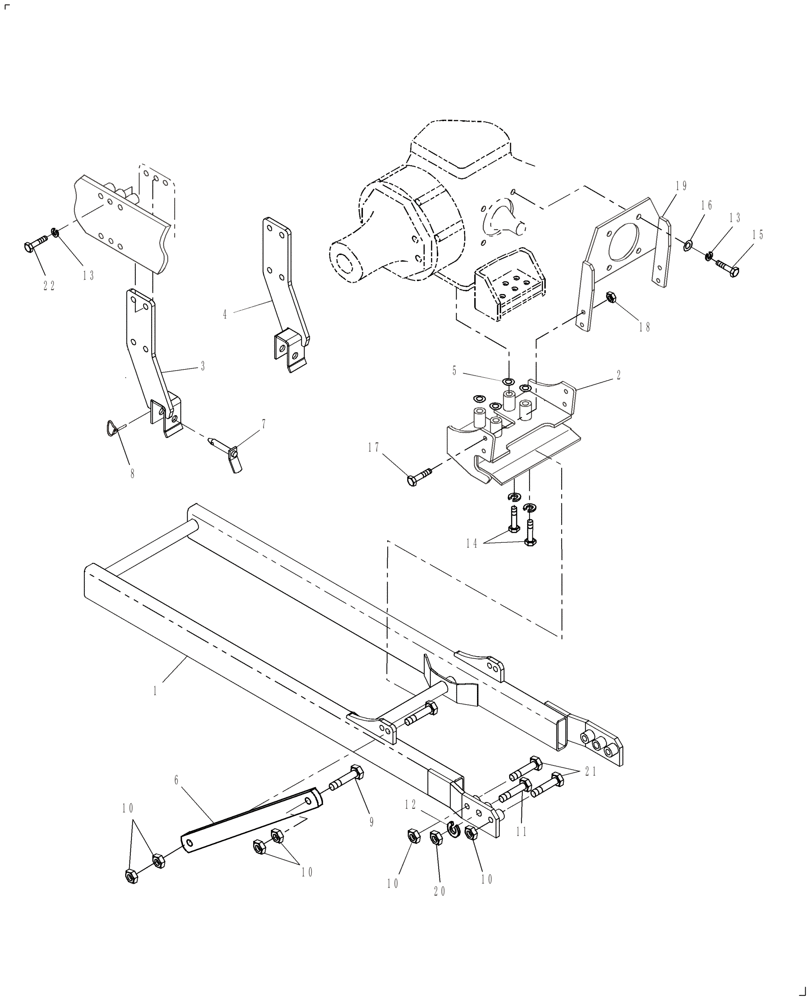

Запчасти Case IH 715451156 (011) - SUBFRAME KIT - D35,DX35.D40,DX40,D45,DX45,FARMALL40/45/50 - 715451156

1

SML53894

FRAME

Sub

1шт.

2

SML53901

BRACKET

Mounting, Rear

1шт.

3

SML53899

BRACKET

Mounting, Front, Left

1шт.

4

SML53900

BRACKET

Mounting, Front, Right

1шт.

5

SML612027

BUSHING

.75 I.D. x 1.25 O.D. x 1"

4шт.

6

SML53885

BAR

Mount

2шт.

7

SML44892

PIN,3.25" L

3/4" x 3"

2шт.

8

SML447561

PIN

Lynch

2шт.

9

SML429694

SCREW

Cap, HH, G8, 3/4"-10 x 2-3/4"

4шт.

10

SML472648

LOCK NUT

Lock, 3/4"-10

12шт.

11

SML41838102

SCREW

HH Cap, 7/8-9 x 4-1/2"

2шт.

12

SML418377

LOCK WASHER

Washer, Lock, 7/8"

2шт.

13

SML418377

LOCK WASHER

Washer, Lock, 5/8"

14шт.

14

SML4904022

SCREW

Cap, HH, M16 x 2 x 130

4шт.

15

SML4267211

SCREW

Cap, HH, M16 x 2 x 35

4шт.

16

SML4250212

WASHER

Flat 5/8"

2шт.

17

SML4183833

SCREW

Cap, HH, 1/2"-13 x 1-1/2"

4шт.

18

SML418405

LOCK NUT

1/2"-13

4шт.

19

SML48114

BRACKET

Hanger, Rear

1шт.

20

SML418369

NUT

Hex 7/8"-9

2шт.

21

SML4183871

SCREW

HH Cap 3/4-10x4, GR5

4шт.

22

SML490408

SCREW

HHCS, M16-2.00mm x 100mm

8шт.
