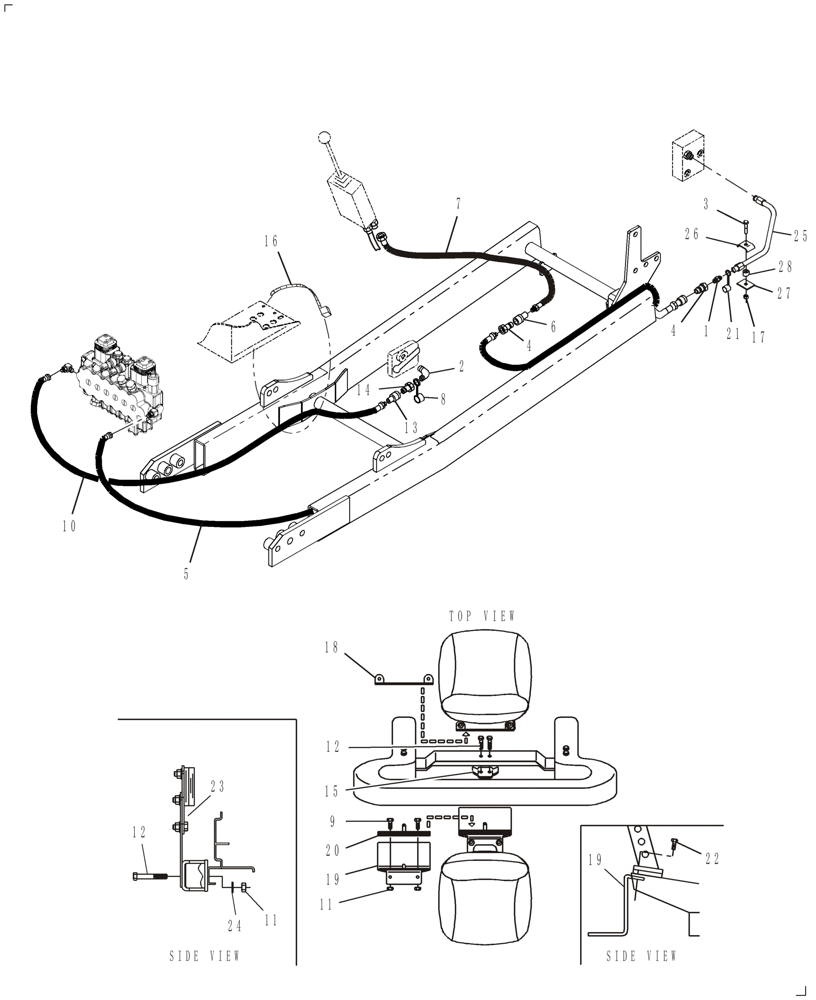

Запчасти Case IH 715396026 (042) - HYDRAULIC KIT - DX29,DX31,DX33,DX34 - 715396026

1

SML312213

ADAPTER

Fitting, 3/4 JIC x 3/8 NPTF

1шт.

2

SML346442

ELBOW

Fitting, 1/2 NPT x 3/8 NPT, 90 Degrees

1шт.

3

SML418389

SCREW

HH Cap G5, 3/8"-16 x 1-1/4"

1шт.

4

86583622

ADAPTER

Quick Coupler, Male, 3/8

2шт.

5

SML3633613

HOSE,0.38" ID x 90.00"

3/4 - 16 JIC x 3/8 NPT

1шт.

6

86583553

ADAPTER

Quick Coupler, Female, 3/8

1шт.

7

SML521581

HOSE

1/2 x 24" 3/4-16 JIC x 3/8 NPT

1шт.

8

333721A1

CAP

Dustcap, 1/2

1шт.

9

SML4183826

SCREW

HH Cap, 5/16-18 x 3/4 GR5

2шт.

10

SML410534

HOSE,0.50" ID x 72.00"

3/4 JIC x 1/2 NPT

1шт.

11

SML418402

NUT

LOCK, 5/16"-18, GB

4шт.

12

SML4183885

SCREW

HH Cap, 5/16-18 x 2-1/4 GR5

2шт.

13

SML61478

COUPLING, QUICK, FEM

Female, 1/2

1шт.

14

SML61376

QUICK MALE COUPLING

Male, 1/2

1шт.

15

SML51000

PLATE

Flat, Toolbox Bracket Relocation

1шт.

16

SML81376

CABLE TIE

CABLE STRAP Adjustable Tie, 5/16" x 11"

1шт.

17

SML418403

NUT

Lock 3/8-16

1шт.

18

SML50997

BRACKET

Seat Stop

1шт.

19

SML50998

BRACKET

Toolbox

1шт.

20

SML50999

BRACKET

Lock, Toolbox

1шт.

21

SML48385

DUST CAP

3/8

1шт.

22

SML4183823

SCREW

HH Cap, 3/8-16 x 1-1/2 GR 5

2шт.

23

SML52161

BRACKET

Extension Flat

1шт.

24

SML425027

WASHER

Flat, 5/16

2шт.

25

SML52160

HOSE

Oil Line

1шт.

26

86583623

CLAMP

1шт.

27

SML52159

CLAMP

Flat

1шт.

28

SML502276

SPACER

3/4 O.D. x 7/16" Long

1шт.
