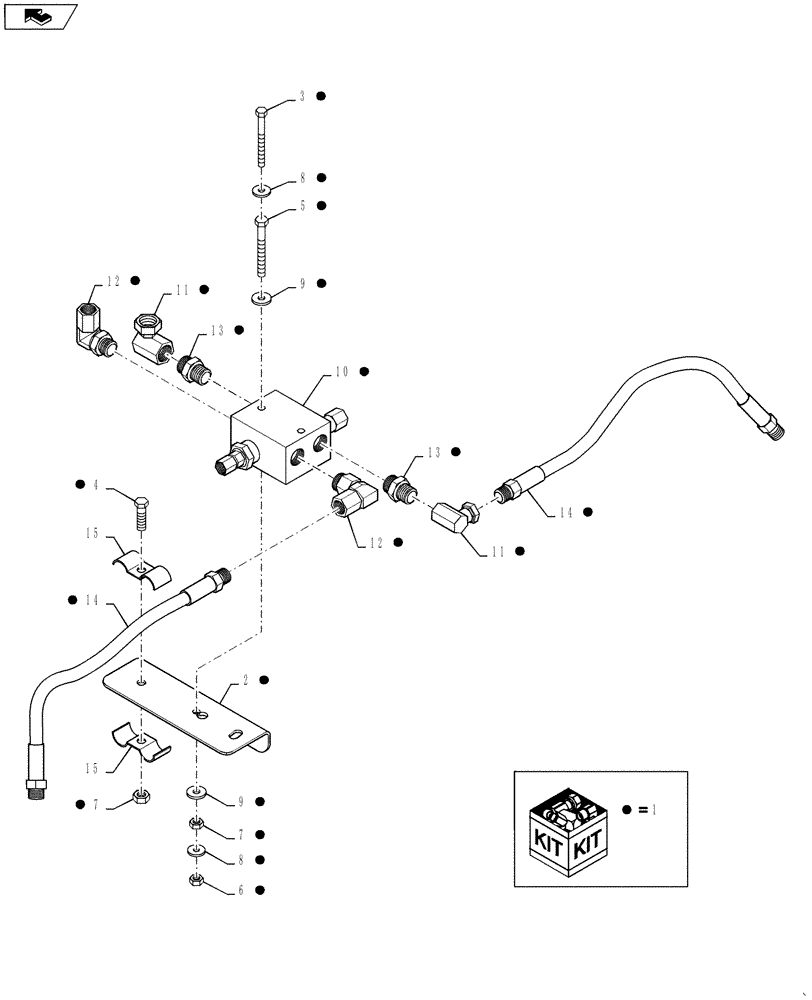

Запчасти Case IH 715349056 (115) - DUAL CROSSOVER VALVE KIT - BERBER0076

1

BERBER0076

KIT

KIT, Dual Crossover Valve Includes: Ref. 2-14

1шт.

2

BER669701

SUPPORT

Hydraulic Block

1шт.

3

PL

PROCURE LOCALLY

BOLT, HEX 1/4" X 2-3/4" GR5

2шт.

4

PL

PROCURE LOCALLY

BOLT, HEX 5/16" X 1-1/4" GR5

1шт.

5

PL

PROCURE LOCALLY

BOLT, HEX 5/16" X 2-3/4" GR5

2шт.

6

PL

PROCURE LOCALLY

NYLON INSERT LOCKNUT 1/4"

2шт.

7

PL

PROCURE LOCALLY

NYLON INSERT LOCKNUT 5/16"

3шт.

8

PL

PROCURE LOCALLY

FLAT WASHER 1/4" (5/16" HOLE)

4шт.

9

PL

PROCURE LOCALLY

FLAT WASHER 5/16" (3/8" HOLE)

4шт.

10

BER3920003

VALVE

Dual Crossover Relief

1шт.

11

BER654658

90 ELBOW

3/8" X 3/8"

2шт.

12

BER655374

90 ELBOW

3/4" X 3/8"

2шт.

13

BER656103

ADAPTER

SPARE PART ADAPTER, 3/4" x 3/8"

2шт.

14

BER663417

HOSE ASSY.

1/4" x 19" Long 3/8" x 3/8"

2шт.

15

BER666583

HOSE CLAMP

Double

2шт.
