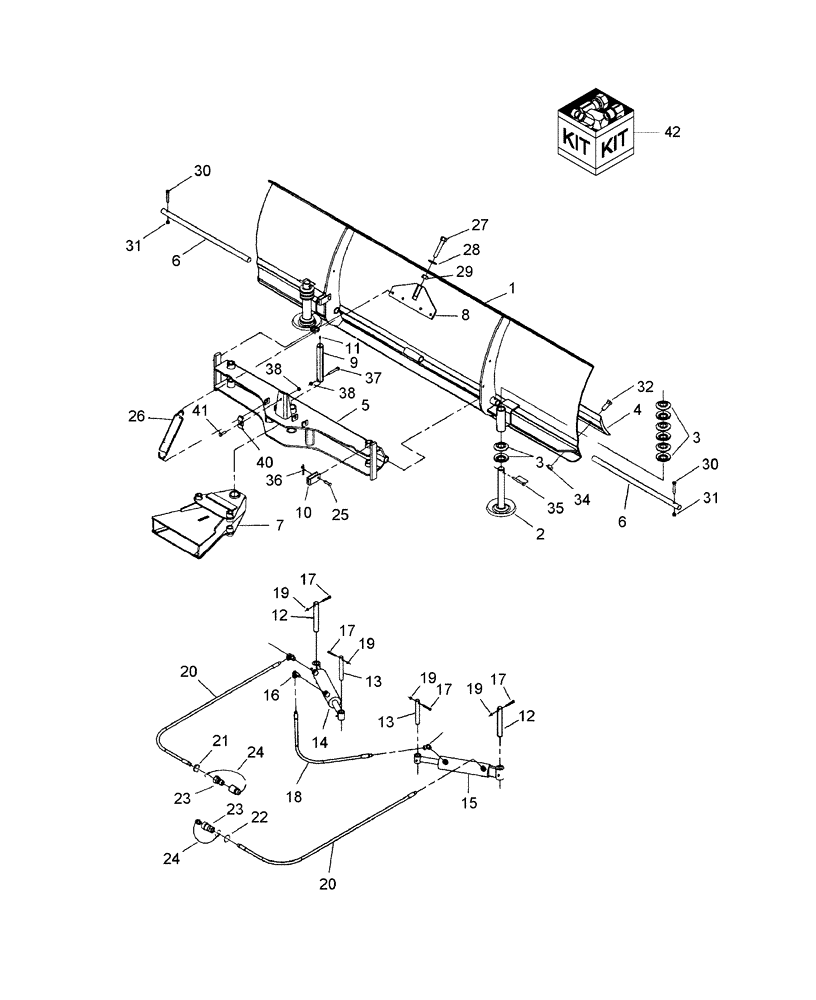

Запчасти Case IH 715349056 (101) - 72" FRONT BLADE

1

CSE666757

BLADE

72"

1шт.

2

BER664564

SHOE

Skid

2шт.

3

BER659393

WASHER

16шт.

4

BER661724

CUTTING EDGE

72"

1шт.

5

CSE666722

HITCH

Adjustable

1шт.

6

BER664959

PIN

Blade

2шт.

7

BER666396

HITCH

Female

1шт.

8

BER665197

PLATE

Spring

1шт.

9

BER665252

PIVOT PIN

1шт.

10

BER665251

TRIP

Spring

2шт.

10

BER667405

SPRING LOCK

2шт.

USED ON & ABOVE SN RAD012522

1шт.

11

BER654106

FITTING

Grease, 1/4"

1шт.

12

BER664993

PIN

7/8" x 6 -5/16"

2шт.

13

BER664994

PISTON PIN

3/4" x 5 -3/16"

2шт.

14

BER661404

CYLINDER,Double Acting, 165.1mm Stroke

LH, 2" x 6 -1/2"

1шт.

15

BER661289

CYLINDER,Double Acting, 165.1mm Stroke

RH, 2" x 6 -1/2"

1шт.

16

BER654557

ELBOW

90°

2шт.

17

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 1 -3/4"

4шт.

18

BER663417

HOSE ASSY.

1/4" x 19"

1шт.

19

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/4"

4шт.

20

PL

PROCURE LOCALLY

Hose

2шт.

21

BER658206

RING

Identification - Yellow

2шт.

22

BER658209

RING

Identification - Green

2шт.

23

BER658118

QUICK MALE COUPLING

3/8"

2шт.

24

BER658397

DUST CAP

3/8"

2шт.

24

BER658203

DUST CAP

3/8"

2шт.

715349056 On & ASN RAD012541

1шт.

25

BER657489

PIN

3/8" x 1 -1/4"

2шт.

25

BER4600028

PIN

1/2" x 1 -27/64"

2шт.

USED ON & ABOVE SN RAD012522

1шт.

26

BER31205

SPRING

Tension

4шт.

27

BER665002

BOLT

Hex, 5/8" x 3 -1/2"

1шт.

28

PL

PROCURE LOCALLY

Washer, Flat, 11/16"

1шт.

29

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

1шт.

30

PL

PROCURE LOCALLY

Bolt, Hex, 5/16" x 2"

2шт.

31

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 5/16"

2шт.

32

BER0400008

BOLT

Plow, 5/8" x 2"

9шт.

33

PL

PROCURE LOCALLY

Washer, Lock, 5/8"

9шт.

34

PL

PROCURE LOCALLY

Nut, Hex, 5/8"

9шт.

35

BER1900001

LINCH PIN

5/16"

2шт.

36

BER1800004

COTTER PIN

3mm x 65mm

2шт.

37

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 2 -1/4"

1шт.

38

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 3/8"

2шт.

39

BER3900095

RESTRICTOR

Flow, .063", 45°

1шт.

40

BER666583

HOSE CLAMP

1шт.

41

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1 -1/4"

1шт.

42

BER665017

SEAL KIT

Cylinder

1шт.
