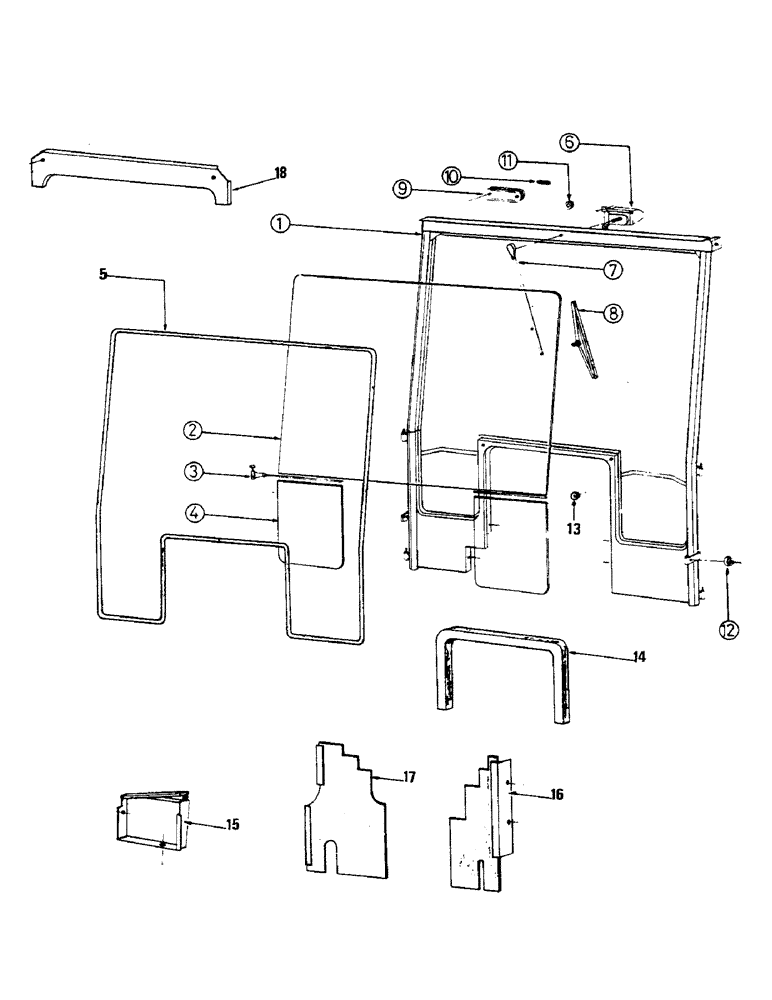

Запчасти Case IH 433 (06) - COMPLETE FRONT PANEL (09) - CHASSIS

3404753R91

PANEL

front assembly Consists of Ref. No. 1 to, Serial Range: 1-17

1шт.

1

NSS

NOT SOLD SEPARAT

PANE front framework

1шт.

2

3217166R1

GLASS

windshield

1шт.

3

3220988R1

FLUID

SEAL adhesive, 100 gr

1шт.

4

3137439R1

GLASS

2шт.

5

3217167R1

SEAL

windshield, 5.52 m

1шт.

6

3058767R92

WIPER MOTOR

MOTOR, WIPER

1шт.

7

3058769R91

WIPER ARM

ARM, WIPER

1шт.

8

3058768R92

WIPER BLADE,400mm L

BLADE wiper

1шт.

9

3146544R1

INTERIOR LIGHT

celling

1шт.

3217178R1

BOLT

2шт.

10

3142760R1

BULB

LAMP, 10 x 38

1шт.

11

3217168R1

PLUG

GROMMET, No. 25 - 17 x 30 x 6

1шт.

12

3217024R1

STOP

PLUG rubber

2шт.

3220301R1

ELECTRICAL WIRE

WIRE ground

1шт.

3399474R1

PLATE name

1шт.

13

NSS

NOT SOLD SEPARAT

CAP "0" 11

2шт.

14

3217177R1

BAND

SEAL, 40 x 30 - Longueur 1220 mm

1шт.

15

3217172R1

POCKET

SPARE PART BOX with cover

1шт.

3217187R1

SEALING WASHER,6mm ID x 18mm OD x 1mm Thk

plain

1шт.

3217186R1

WASHER

JZC 6

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

934719R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

H 6 x 25 mm

1шт.

3217154R1

WASHER

plain 45 x 17 x 5 mm

1шт.

16

GASKET front L.H.

1шт.

17

3217174R1

PLATE

SPARE PART GASKET front R.H.

1шт.

3217176R1

ELECTRICAL WIRE

WIRE electric, part on cab

1шт.

1091860R1

SEAL

ADHESIVE

1шт.

3216462R1

SCREW

6 x 12 mm

2шт.

934966R1

SCREW,M6 x 20mm

T.C. 6 x 20 mm

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

3217183R1

WASHER

plain

2шт.

3217187R1

SEALING WASHER,6mm ID x 18mm OD x 1mm Thk

plain 6 x 18 x 1 mm

3шт.

3217186R1

WASHER

JZC 6

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

3217181R1

BOLT

H 6 x 20 mm

3шт.

3217187R1

SEALING WASHER,6mm ID x 18mm OD x 1mm Thk

plain 6 x 18 x 1 mm

2шт.

18

3217158R1

PLATE

ADDITIVE front plate framework (for high fenders)

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

3217161R1

WASHER

AZ 6

2шт.
