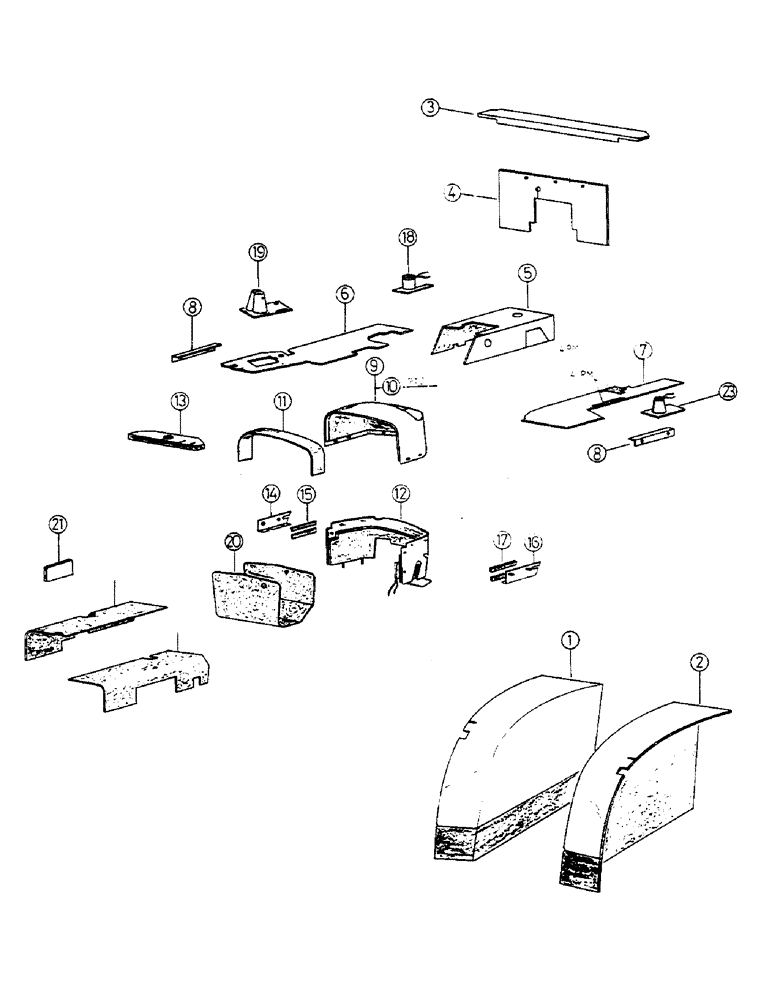

Запчасти Case IH 433 (48) - TRACTOR SOUNDPROOFING KIT (09) - CHASSIS

DAMPING tractor set

1шт.

1

3402299R1

LINING

SPARE PART fender, R.H.

1шт.

2

3402298R1

LINING

fender, L.H.

1шт.

3

3402300R1

LINING

sheet rear

1шт.

4

3402301R1

GASKET

SPARE PART sheet rear

1шт.

3224114R1

SCREW

6 x 15 mm

3шт.

3217186R1

WASHER

JZC 6

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

5

3402302R1

MAT

CARPET central

1шт.

6

3402304R1

MAT

CARPET R.H. side

1шт.

7

3402303R1

MAT

CARPET L.H. side

1шт.

8

3402305R1

ANGLE

FIXATION carpet

1шт.

9

3402089R1

COWL

DASHBOARD upper

1шт.

10

3402090R1

PANEL

DASHBOARD upper, P.T.O.

1шт.

11

3402307R1

BRACKET

DAMPING

1шт.

12

3402306R1

PANEL

DASHBOARD lower

1шт.

13

3402308R1

LINING

DAMPING dashboard

1шт.

3402310R1

BRACKET

FIXATION damping dashboard, R.H., consists of Ref. No. 14 - 15

1шт.

14

NSS

NOT SOLD SEPARAT

FIXATION, R.H.

1шт.

14

NSS

NOT SOLD SEPARAT

FIXATION, R.H.

1шт.

14

NSS

NOT SOLD SEPARAT

FIXATION, R.H.

1шт.

15

NSS

NOT SOLD SEPARAT

FOAM, 20 x 4 - Length 175 mm

2шт.

3402309R1

BRACKET

FIXATION damping dashboard, L.H. consists of Ref. No. 16 - 17

1шт.

16

NSS

NOT SOLD SEPARAT

FIXATION, L.H.

1шт.

17

NSS

NOT SOLD SEPARAT

FOAM, 20 x 4 - Length 175 mm

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

6шт.

3224183R1

WASHER

6 x 30 x 2 mm

4шт.

3217186R1

WASHER

JZC 6

2шт.

3224207R1

CAP

NUT, 6

4шт.

18

3402311R1

NUT

BELLOWS handbrake

1шт.

19

BELLOWS brakepedal

1шт.

20

3402313R1

LINING

DAMPING tank

1шт.

21

3402314R1

LINING

DAMPING fan

1шт.

22

BELLOWS, lever for 4 wheel - drive

1шт.

23

3402092R1

LINING

DAMPING hood, (only for 4 cylinder tractors)

1шт.

24

3402093R1

LINING

DAMPING opening hood, (only for 4 cylinder tractors)

1шт.

25

3402094R1

LINING

DAMPING hood, (only for 3 cylinder tractors)

1шт.

26

3402095R1

LINING

DAMPING opening hood, (only for 3 cylinder tractors)

1шт.
