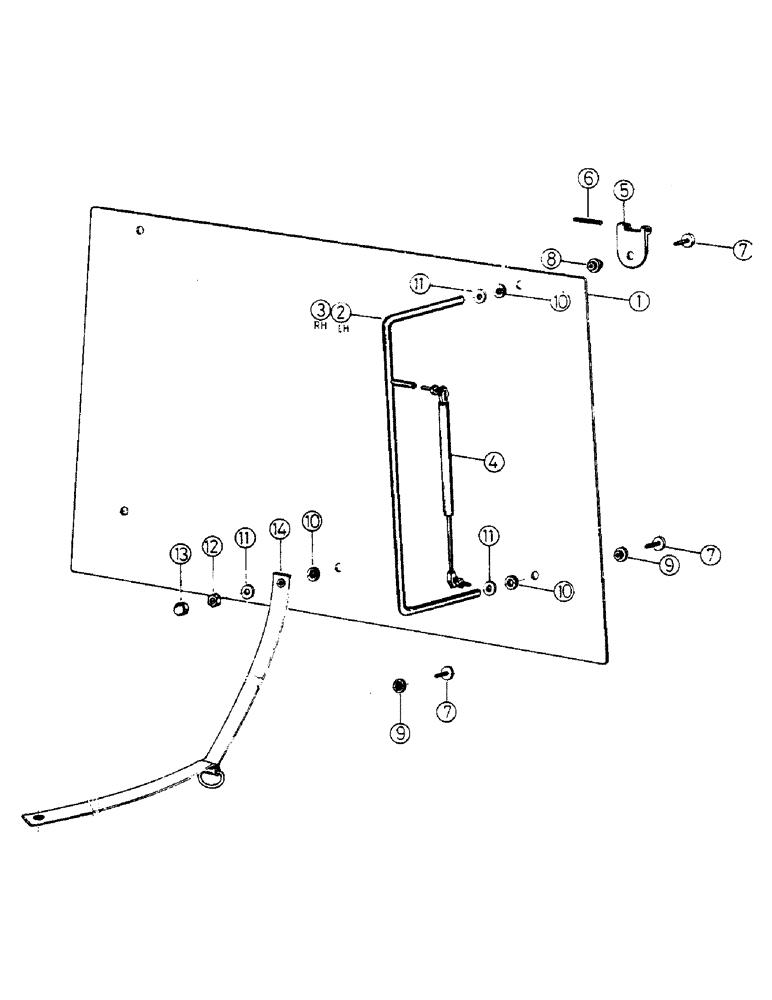

Запчасти Case IH 433 (46) - COMPLETE REAR GLASS (09) - CHASSIS

3402289R91

GLASS

rear, complete, consists of Ref. No. 1 to, Serial Range: 1-14

1шт.

1

3402290R1

GLASS

rear

1шт.

2

3224054R1

HANDLE

rear, L.H.

1шт.

3

3224055R1

HANDLE

rear, R.H.

1шт.

4

3225465R1

CYLINDER ASSY.

SPRING air, 20 kg

2шт.

5

3402006R1

HINGE

half female

2шт.

6

932292R1

LOCK PIN,M6 x 50, Slotted

2шт.

7

3224006R1

SCREW

chromed, 8 x 25 mm

5шт.

8

3225452R1

SPACER

plastic

2шт.

9

3225885R1

WASHER

plastic

3шт.

10

3137761R1

RUBBER WASHER

rubber, 9 x 30 x 2 mm

5шт.

11

3224069R1

TOP

WASHER plain, 9 x 30 x 2 mm

5шт.

12

3225260R1

NUT

8

1шт.

13

3224127R1

CAP

NUT, 8

1шт.

14

3402292R1

STRAP

rear glass

1шт.
