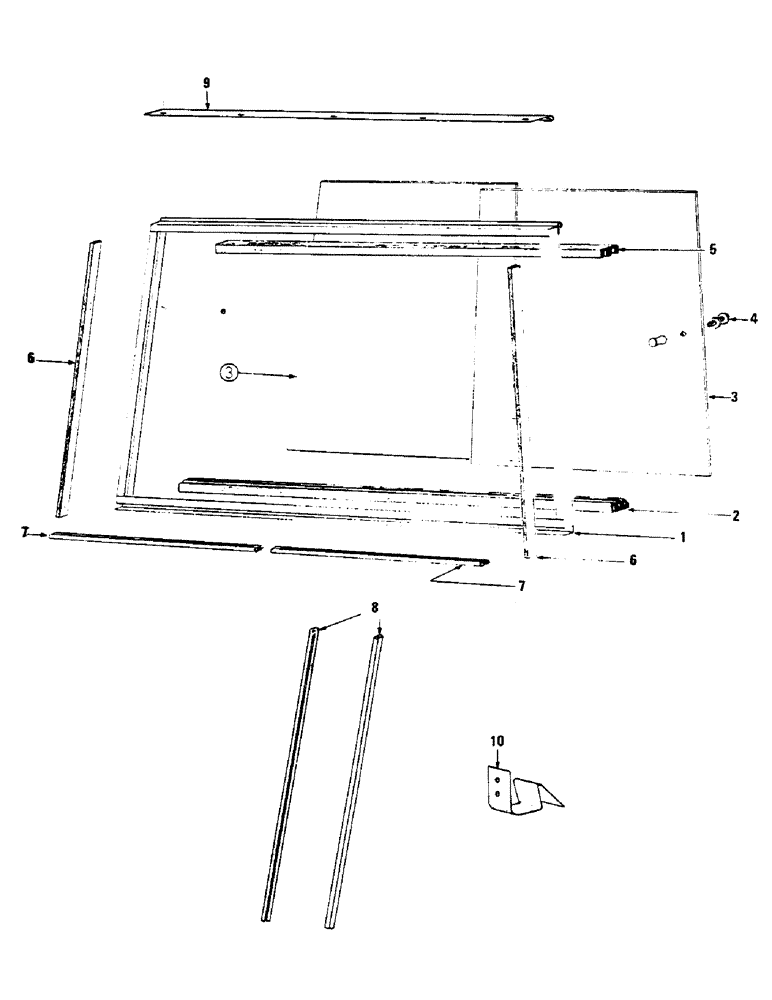

Запчасти Case IH 433 (44) - COMPLETE REAR PANEL, OPTIONAL (09) - CHASSIS

3217769R91

FRAME

PANEL, rear, complete, consists of Ref., Serial Range: 1-7

1шт.

1

3217770R1

FRAME

PANEL, rear

1шт.

2

3217772R1

CHANNEL

SUPPORT sliding lower, 1060 mm

1шт.

3

3217771R1

GLASS

for rear panel, MC 840

1шт.

4

3058773R91

BUTTON

KNOB chromed

1шт.

5

3217773R1

DOOR SEAL

SUPPORT sliding upper, 974 mm

1шт.

6

3217774R1

FOAM

STOP glass, 25 x 10 - Length 767 mm

2шт.

7

NSS

NOT SOLD SEPARAT

SEAL, 525 mm

2шт.

8

3217777R1

STRIP

SPARE PART SEAL, 745 mm

2шт.

9

3217776R1

GASKET

SPARE PART FASTENER, 990 mm

1шт.

10

3217778R1

LATCH

CLIP closing, rear panel

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

3217186R1

WASHER

JZC 6

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.
