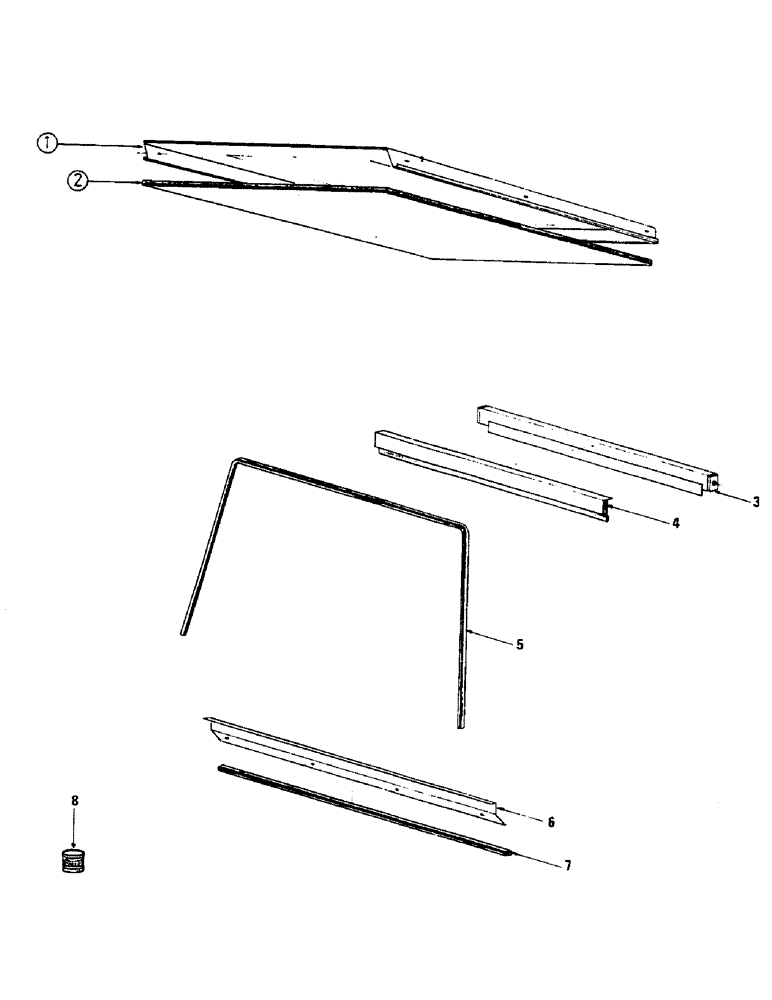

Запчасти Case IH 433 (42) - ROOF AND ACCESSORIES (09) - CHASSIS

3402281R91

ROOF

complete, consists or Ref. No. 1 - 2

1шт.

1

3217155R1

ROOF

framework

1шт.

2

3402282R1

LINING

roof

1шт.

3217142R1

WASHER

AZ 10

6шт.

3217143R1

WASHER

plain, 11 x 30 x 2 mm

6шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

H 10 x 25

6шт.

3402283R91

BEAM

upper rear complete, consists of Ref. No. 3 - 4

1шт.

3

3402284R1

CROSSBAR

BEAM rear framework

1шт.

4

3402285R1

LINING

rear

1шт.

5

3402286R1

SEAL

SEAL, 2.58 m

1шт.

0C

ORDER COMPONENTS

STOP lower glass, rear, complete, consists of Ref. No. 6 and 7

1шт.

6

3402287R1

SUPPORT ASSY.

STOP lower glass, rear

1шт.

7

3402288R1

SEAL

1.08 m

1шт.

3224114R1

SCREW

6 x 15 mm

4шт.

3217186R1

WASHER

JZC 6

4шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

8

3131320R1

GLUE

BOX of glue, 514 (for repair)

1шт.
