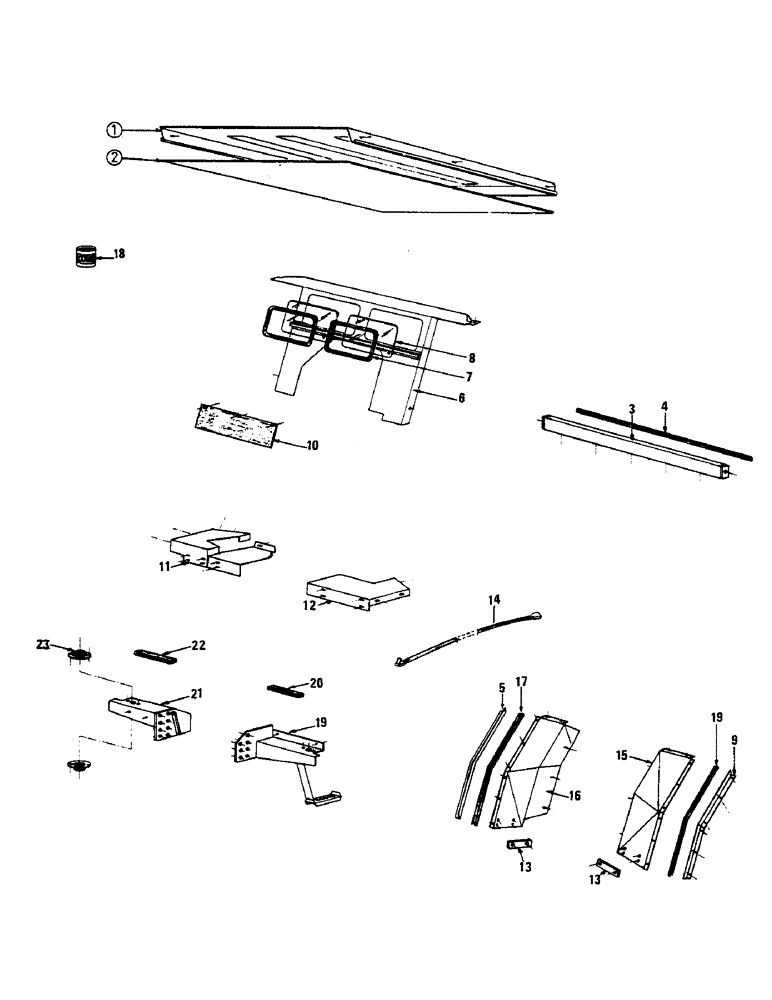

Запчасти Case IH 433 (38) - ROOF AND ACCESSORIES (09) - CHASSIS

3217796R91

ROOF

complete consists of Ref. No. 1 - 2

1шт.

1

3217155R1

ROOF

framework

1шт.

2

3217797R1

LINING

roof

1шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

H 10 x 25 mm

6шт.

3217143R1

WASHER

plain, 30 x 11 x 2 mm

6шт.

3217142R1

WASHER

AZ 10

6шт.

3404762R91

BEAM

rear complete, consists of Ref. 3 - 4

1шт.

3

3217799R1

RAIL

BEAM rear

1шт.

4

3217832R1

INSULATOR

FOAM, 15 x 6 mm

1шт.

3216462R1

SCREW

6 x 12 mm

5шт.

5

3402297R1

STOP

door, R.H.

1шт.

3224114R1

SCREW

6 x 15 mm

12шт.

3217186R1

WASHER

JZC 6

12шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

12шт.

6

3217801R1

PANEL

SHEET rear

1шт.

7

3217802R1

SEAL

1.10 m

2шт.

8

3146043R1

GLASS

for rear sheet

2шт.

9

3402296R1

STOP

door L.H.

1шт.

10

3404765R1

GASKET

rear

1шт.

3224114R1

SCREW

6 x 15 mm

3шт.

3217186R1

WASHER

JZC 6

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

11

3217806R1

EXTENSION

platform, R.H.

1шт.

12

3217805R1

EXTENSION

platform, L.H.

1шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

5шт.

3217184R1

LOCK WASHER

JZC 8

5шт.

43362

NUT,M8 x 1.25, Cl 10

5шт.

13

3217804R1

SPACER

(for low fenders)

2шт.

3217991R1

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

H 6 x 30 mm

4шт.

3217186R1

WASHER

JZC 6

4шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

14

3217815R1

CABLE

WIRE electric

1шт.

15

3402294R1

EXTENSION

fender, L.H.

1шт.

16

3402295R1

EXTENSION

fender, R.H.

1шт.

17

3217814R1

SEAL

760 mm

2шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

10шт.

934673R1

WASHER,M8.4 x 25 x 2

plain, 25 x 9 x 2 mm

10шт.

3217184R1

LOCK WASHER

JZC 8

10шт.

43362

NUT,M8 x 1.25, Cl 10

10шт.

18

3131320R1

GLUE

CAN, 514 (only for repair)

1шт.

19

3217807R1

SUPPORT

SPARE PART BRACKET front L.H.

1шт.

20

3217169R1

FOAM

40 x 20 mm - Longer 200 mm

1шт.

21

3217808R1

SUPPORT

BRACKET front, R.H.

1шт.

22

3217170R1

STRIP

FOAM, 40 x 20 mm - Longer 240 mm

1шт.

23

3146523R1

SILENTBLOC

SILENT bloc

4шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

934899R1

LOCK WASHER,8.2mm ID x 14mm OD

AZ 8

4шт.

43362

NUT,M8 x 1.25, Cl 10

4шт.

934780R1

SCREW,M16 x 90mm, Cl 8.8

H 16 x 90 mm

2шт.

3142703R1

NUT safety, 16

2шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

934673R1

WASHER,M8.4 x 25 x 2

plain, 25 x 9 x 2 mm

2шт.

3217184R1

LOCK WASHER

JZC 8

2шт.

43362

NUT,M8 x 1.25, Cl 10

2шт.
