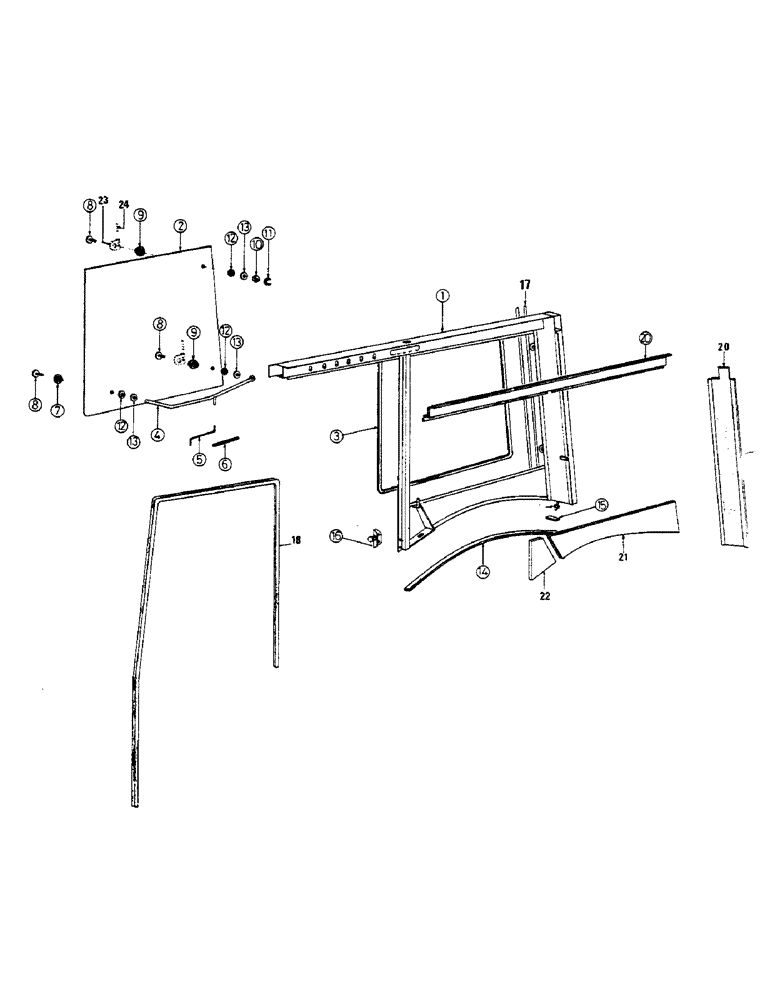

Запчасти Case IH 433 (34) - COMPLETE SIDE PANEL RIGHT HAND (09) - CHASSIS

NLS

NO LONGER SERVICED

PANEL side, R.H. complete consists of Ref., Serial Range: 1-24

1шт.

3217153R1

SCREW

H 16 x 60 mm

1шт.

934781R1

NUT,M16, Cl 8

1шт.

3217116R1

WASHER

AZ 16

2шт.

3217154R1

WASHER

plain 45 x 17 x 5 mm

2шт.

1

NSS

NOT SOLD SEPARAT

PANEL side, framework, R.H.

1шт.

2

3402264R1

GLASS

side R.H. opening

1шт.

3

3402265R1

GASKET

SEAL, 2285 mm

1шт.

4

3225456R1

HANDLE

side glass, R.H.

1шт.

5

3224007R1

SPRING

handle

1шт.

6

3224008R1

HOSE

plastic

1шт.

7

3225885R1

WASHER

plastic

1шт.

8

3224006R1

SCREW

chromed, 8 x 25 mm

3шт.

9

3225452R1

SPACER

plastic

2шт.

10

3225260R1

NUT

lock 8

1шт.

11

3224127R1

CAP

NUT, 8

1шт.

12

3137761R1

RUBBER WASHER

rubber, 9 x 30 x 2 mm

3шт.

13

3224069R1

TOP

WASHER plain, 9 x 30 x 2 mm

3шт.

14

3402266R1

SEAL ASSY.

fenders, 870 mm

1шт.

15

3217198R1

INSULATOR

FOAM, 25 x 10 mm - Length75 mm

1шт.

16

3217045R1

CATCH

LOCK staple

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

JCC

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

3217186R1

WASHER

JZC 6

2шт.

17

NSS

NOT SOLD SEPARAT

STRIP adhesive grey, 820 mm

2шт.

18

NSS

NOT SOLD SEPARAT

SEAL, 2970 mm

1шт.

19

3402273R1

LINING

side beam, L.H.

1шт.

20

3402274R1

LINING

profile rear, R.H.

1шт.

21

3402275R1

HATCH LINING

side sheet, R.H.

1шт.

22

3402276R1

LINING

front side sheet

1шт.

23

3402006R1

HINGE

half female

2шт.

24

932292R1

LOCK PIN,M6 x 50, Slotted

(only for repair)

2шт.

934781R1

NUT,M16, Cl 8

(Only for repair)

1шт.
