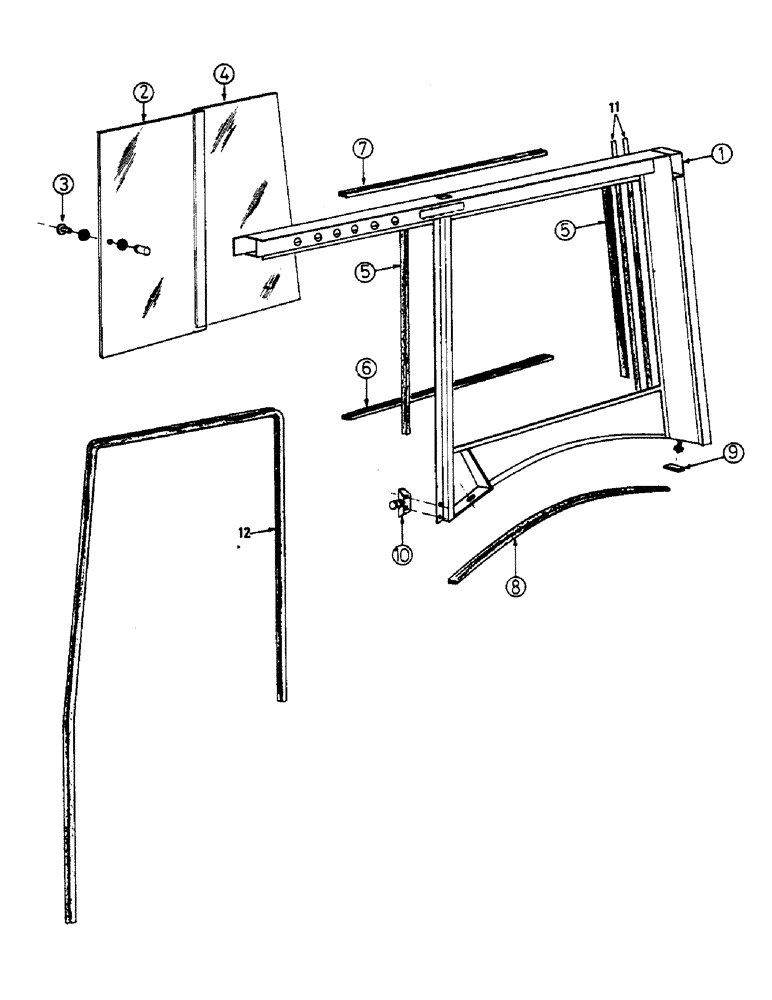

Запчасти Case IH 433 (30) - COMPLETE SIDE PANEL RIGHT HAND (09) - CHASSIS

NLS

NO LONGER SERVICED

PANEL side, complete R.H. consists of Ref. No. 1 to, Serial Range: 1-10

1шт.

1

NSS

NOT SOLD SEPARAT

PANEL side, R.H.

1шт.

2

3217192R1

GLASS

sliding, MC 843

1шт.

3

3058773R91

BUTTON

KNOB, for glass, chromed

1шт.

4

3217193R1

GLASS

MC 844

1шт.

5

NSS

NOT SOLD SEPARAT

FOAM, 25 x 10 - Length 625 mm

2шт.

6

3217195R1

CHANNEL

SUPPORT sliding lower 630 mm

1шт.

7

3217196R1

SLIPPER

SUPPORT sliding upper 545 mm

1шт.

8

3402266R1

SEAL ASSY.

FOAM, 25 x 10 - Length 870 mm

1шт.

9

3217198R1

INSULATOR

FOAM, 25 x 10 - Length 75 mm

1шт.

10

3217045R1

CATCH

STAPLE lock

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

JCC

2шт.

3217186R1

WASHER

JZC 6

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

11

3225882R1

BAND

STRIP adhesive grey 820 mm

2шт.

12

3217766R1

SEAL

SEAL, 4 mm - Length 2.97 m

1шт.

3217153R1

SCREW

H 16 x 60 mm

1шт.

934781R1

NUT,M16, Cl 8

1шт.

3217116R1

WASHER

AZ 16

2шт.

3217154R1

WASHER

plain, 45 x 17 x 5 mm

2шт.

934781R1

NUT,M16, Cl 8

(For repair only)

1шт.
