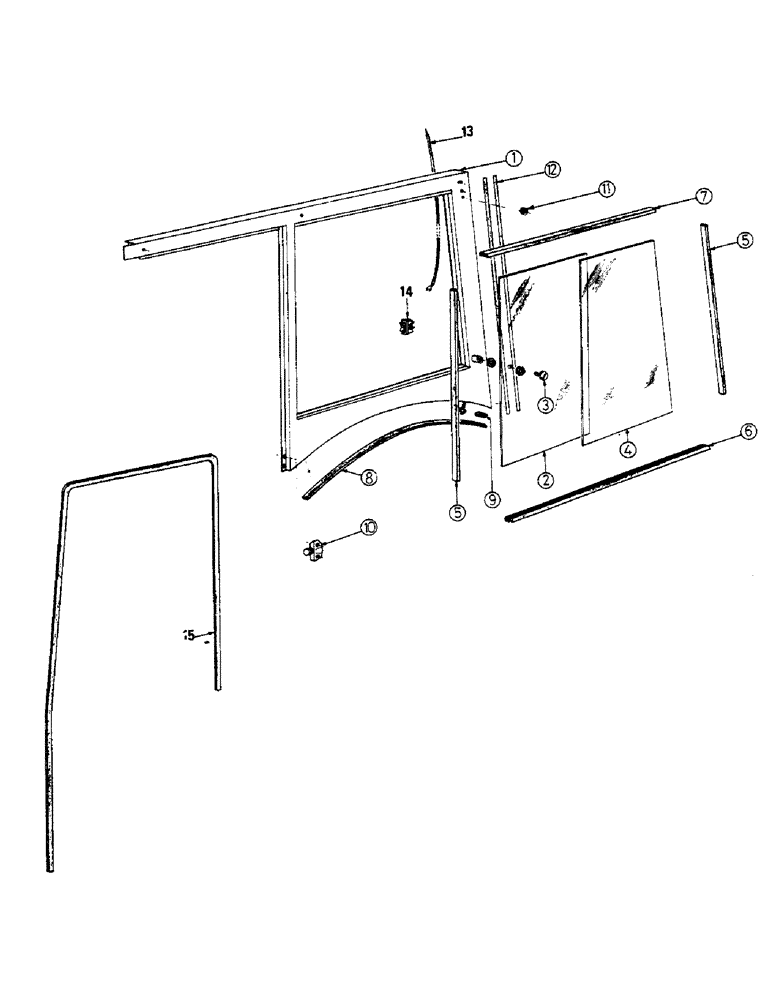

Запчасти Case IH 433 (26) - COMPLETE SIDE PANEL LEFT HAND, 433-733 L (09) - CHASSIS

NLS

NO LONGER SERVICED

PANEL side, L.H. complete consists of Ref. No. 1 to 1, Serial Range: 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

PANEL side, L.H.

1шт.

2

3217192R1

GLASS

side sliding

1шт.

3

3058773R91

BUTTON

KNOB chromed

1шт.

4

3217193R1

GLASS

side

1шт.

5

NSS

NOT SOLD SEPARAT

STOP glass, 25 x 10 - Length 625 mm

1шт.

6

3217195R1

CHANNEL

SUPPORT sliding lower, 630 mm

1шт.

7

3217196R1

SLIPPER

SUPPORT sliding upper, 545 mm

1шт.

8

3402266R1

SEAL ASSY.

25 x 10 - Longer, 870 mm

1шт.

9

3217198R1

INSULATOR

FOAM, 25 x 10 - Length 75 mm

1шт.

10

3217045R1

CATCH

STAPLE lock

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

JCC

2шт.

3217186R1

WASHER

JZC 6

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

11

3220290R1

GROMMET

No. 3 (6 x 15 x 6 mm)

1шт.

12

3225882R1

BAND

STRIP adhesive grey, 820 mm

2шт.

13

3399479R1

ELECTRICAL WIRE

WIRE electric, for spot light

1шт.

14

3142755R1

LIGHT SWITCH

rear light

1шт.

15

3217766R1

SEAL

SEAL, 4 mm - Length 2.97 mm

1шт.

3217153R1

SCREW

H 16 x 60

1шт.

934781R1

NUT,M16, Cl 8

1шт.

3217116R1

WASHER

AZ 16

2шт.

3217154R1

WASHER

plain 45 x 17 x 5 mm

2шт.

934781R1

NUT,M16, Cl 8

1шт.
