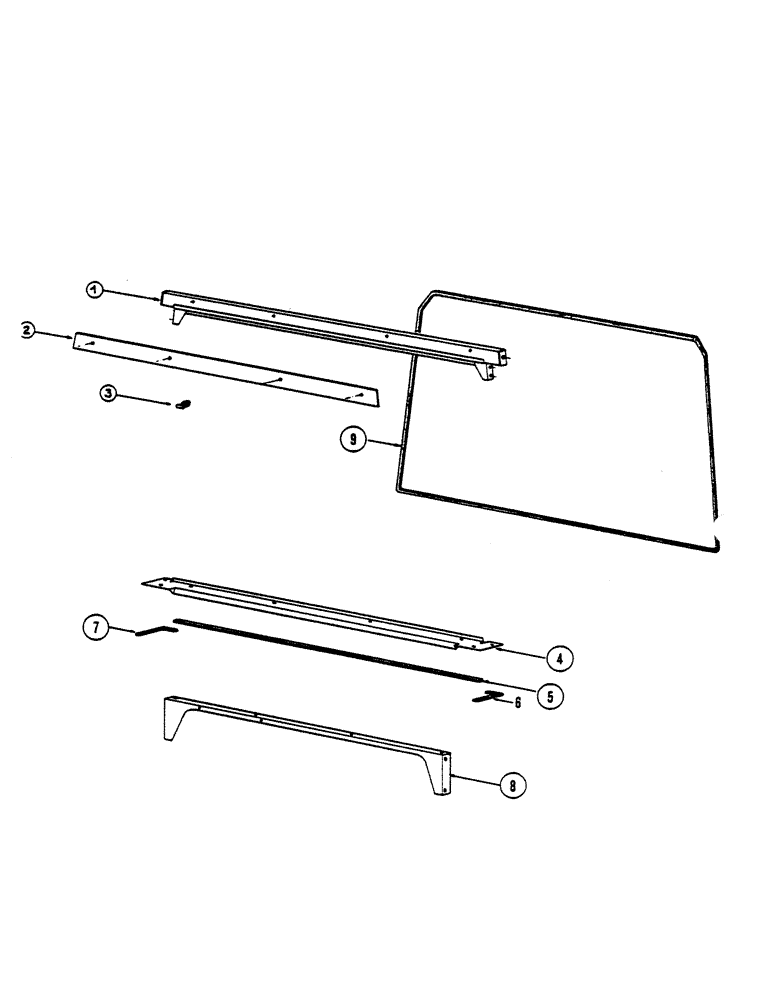

Запчасти Case IH 1055 (34) - REAR ACCESSORIES

3224063R91

CROSSBAR

complete upper rear beam, composed of Ref. No. 1, 2, 3

1шт.

1

3224064R1

BEAM

UPPER REAR ASSEMBLY

1шт.

2

3224065R1

LINING

upper rear beam

1шт.

3

CLASP

4шт.

SCREW, 8 x 20 mm

4шт.

3217184R1

LOCK WASHER

j z c 8

4шт.

3224051R91

STOP

complete lower rear glass, composed of Ref. No., Serial Range: 4-7

1шт.

4

3225466R1

STOP

lower rear glass

1шт.

5

3225467R1

STRIP

SEAL 10 x 4 - 1.30 m

1шт.

6

3225468R1

STRIP

SEAL, L.H 20 x 4 - 225 mm

1шт.

7

3225469R1

STRIP

SEAL, R.H 20 x 4 - Longueur 225 mm

1шт.

934870R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

3шт.

SCREW, H8 x 60 mm WASHER j z c 8

1шт.

43362

NUT,M8 x 1.25, Cl 10

4шт.

8

3225491R1

REINFORCEMENT

REAR STIFFENER ASSEMBLY

1шт.

9

3224124R1

SEAL

SEAL, 3.68 m

1шт.
