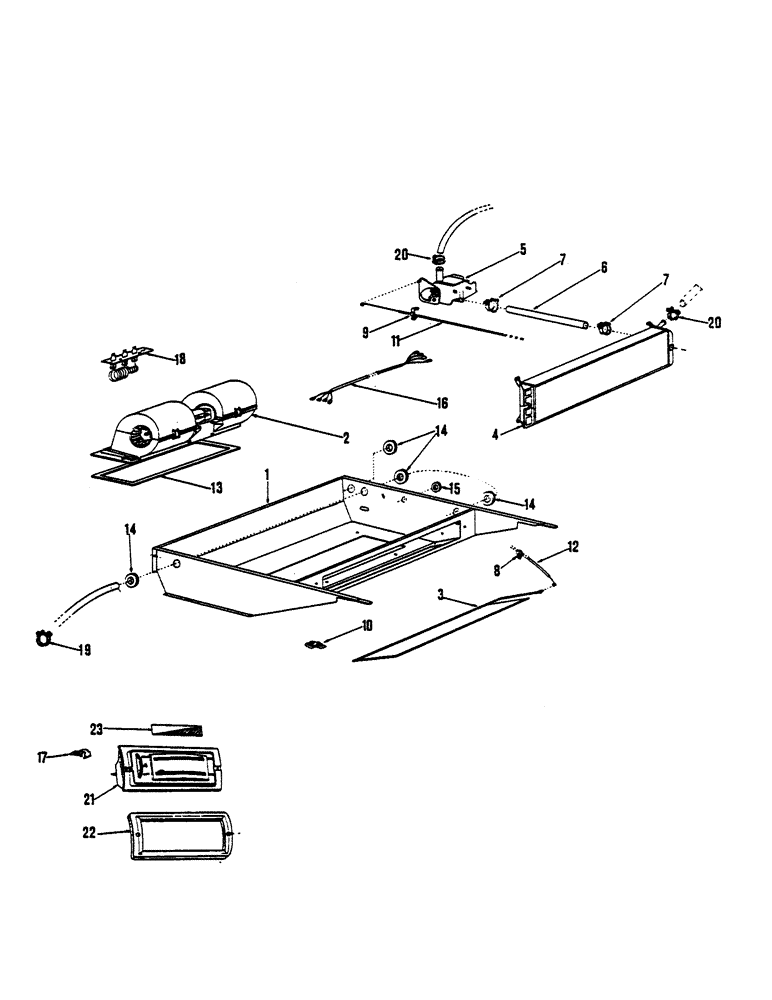

Запчасти Case IH 1055 (28) - HEATER AND VENTILATOR

3224092R91

HEATER

VENTILATOR ASSEMBLY, composed of parts No., Serial Range: 1-23

1шт.

1

3224093R1

FRAME

SPARE PART

1шт.

2

3224094R91

MOTOR, ELECTRIC

ventilator, 680 M3/H

1шт.

SCREW, 6 x 15 mm

4шт.

3217186R1

WASHER

j z c 6

4шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

3

3224100R1

COVER

1шт.

4

3224101R1

RADIATOR

1шт.

SCREW, H6 x 60 mm

1шт.

SCREW, 6 x 15 mm

1шт.

3217186R1

WASHER

j z c 6

2шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

5

3224110R1

VALVE

cock

1шт.

6

3225486R1

HOSE

200 mm (18 x 23)

1шт.

7

3224102R1

CLAMP

hose

2шт.

8

3224103R1

CLIP

SPARE PART

1шт.

9

3224111R1

CLIP

SPARE PART

1шт.

10

3224097R1

CLIP

2шт.

11

3224104R1

CABLE

case tap

1шт.

12

3224112R1

CABLE

1шт.

13

3224096R1

STRIP

SEAL, 10 x 4 mm - 1.58 m

1шт.

14

3224106R1

GROMMET

25 x 45 x 15 mm

4шт.

15

3224160R1

GROMMET

11 (12 x 27 x 12 mm)

1шт.

16

3225488R1

ELECTRICAL WIRE

WIRE electric

1шт.

17

3225430R1

CLIP

2шт.

18

3225487R1

RHEOSTAT

3 speeds

1шт.

19

3225429R1

CLAMP

hose

2шт.

20

3224102R1

CLAMP

hose

2шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

3217186R1

WASHER

j z c 6

2шт.

21

3225481R1

GRILLE

ventilation or heating

1шт.

22

3225479R1

FRAME

SPARE PART of ventilation order

1шт.

23

3225480R1

PRODUCT GRAPHIC

transfer

1шт.

SCREW, 4.8 x 31.7 mm

2шт.
