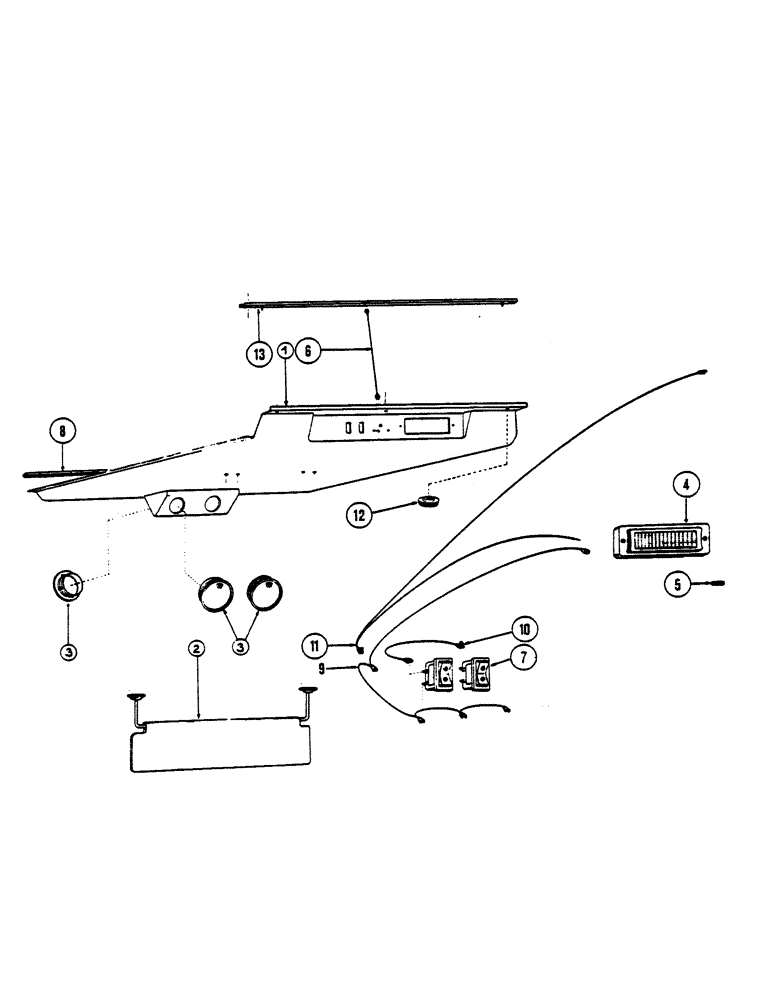

Запчасти Case IH 1055 (24) - COMPLETE NOISE REDUCTION COVER

3224080R91

HOOD

complete cover noise reduction, composed of Ref. No. 1 to 1, Serial Range: 1-11

1шт.

1

3225478R1

LINING

cover noise reduction

1шт.

2

3224082R1

SUNSHADE

SCREEN sun

1шт.

3224228R1

SCREW

4 x 30

4шт.

3220338R1

LOCK WASHER

j z c 4

4шт.

933763R1

NUT

H4

4шт.

3

3142751R1

DIFFUSER

air

3шт.

4

3146544R1

INTERIOR LIGHT

inner

1шт.

5

3142760R1

BULB

LAMP, 10 x 38 12 v. 7 w

1шт.

6

3217055R1

CABLE

300 mm

1шт.

3220339R1

SCREW

4 x 16 mm

2шт.

3220338R1

LOCK WASHER

j z c 4

2шт.

933763R1

NUT

H4

2шт.

7

3225482R1

LIGHT SWITCH

light

2шт.

8

3225492R1

SEAL

SEAL, 1.15 m

1шт.

9

3225483R1

ELECTRICAL WIRE

WIRE electric

1шт.

10

3225484R1

ELECTRICAL WIRE

WIRE electric

1шт.

11

3225485R1

HARNESS

WIRE electric

1шт.

3220965R1

SCREW

6 x 30 mm

2шт.

3217186R1

WASHER

j z c 6

4шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

4шт.

12

3220281R1

NUT

2шт.

13

3225428R1

SUPPORT

ASSEMBLY

1шт.

934876R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

905212R1

SCREW,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

4 x 15 mm

1шт.

3220338R1

LOCK WASHER

j z c 4

1шт.

933763R1

NUT

H4

1шт.
