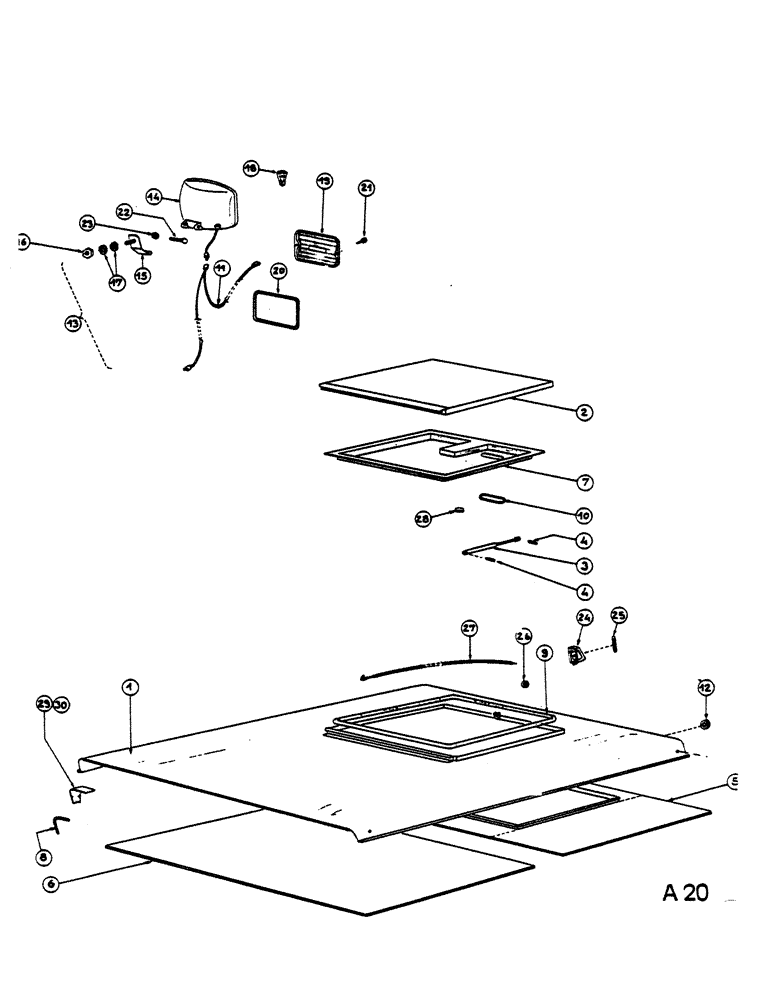

Запчасти Case IH 1055 (18) - COMPLETE ROOF

3224068R92

ROOF

complete, composed of Ref. No., Serial Range: 1-30

1шт.

1

3224069R1

TOP

ROOF framework

1шт.

2

3224078R1

ROOF

opening, complete

1шт.

3

3225471R1

CYLINDER ASSY.

SPRING air

1шт.

4

PIN slotted, 6.4 x 3.6 x 15 mm

2шт.

5

3225470R1

LINING

rear

1шт.

6

3224070R1

LINING

LINING front 120 x 57 x 1.5

1шт.

7

3225473R1

LINING

for opening roof

1шт.

8

SEAL, 6 mm - 175 mm

2шт.

9

SEAL, 2.48 m

1шт.

10

3224042R1

SEAL

SEAL, 6 mm - 300 mm

1шт.

11

3225476R1

WIRE HARNESS

LIGHT electric

2шт.

12

3142722R1

GROMMET

8 x 20 x 7 mm

2шт.

13

3225472R91

HEADLIGHT

LIGHT spot , composed of Ref. No., Serial Range: 14-23

2шт.

14

NSS

NOT SOLD SEPARAT

BODY, HEAD LAMP + GROMMET + ELECTRIC WIRE

1шт.

15

3225477R1

BRACKET

SUPPORT light

1шт.

16

3217140R1

NUT

HM, 10

1шт.

17

3217142R1

WASHER

AZ 10

2шт.

18

3220994R1

LAMP

12 v - 45 W

1шт.

19

3220993R1

LENS

GLASS

1шт.

20

3220995R1

GASKET

SEAL

1шт.

21

SCREW, 3.5 x 18 mm

2шт.

22

SCREW, HM 6 x 40 mm

1шт.

23

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

24

LIGHT

1шт.

25

3142760R1

BULB

LAMP, 10 x 38

1шт.

26

3220290R1

GROMMET

6 x 15 x 6 mm

1шт.

27

WIRE electric

1шт.

WASHER, j z c 10 - 26,3 x 14 mm

6шт.

SCREW, 10 x 30 mm

6шт.

28

CAP "0", 20, 2 mm

1шт.

29

ADHESIVE, black R.H.

1шт.

30

ADHESIVE, black L.H.

1шт.
