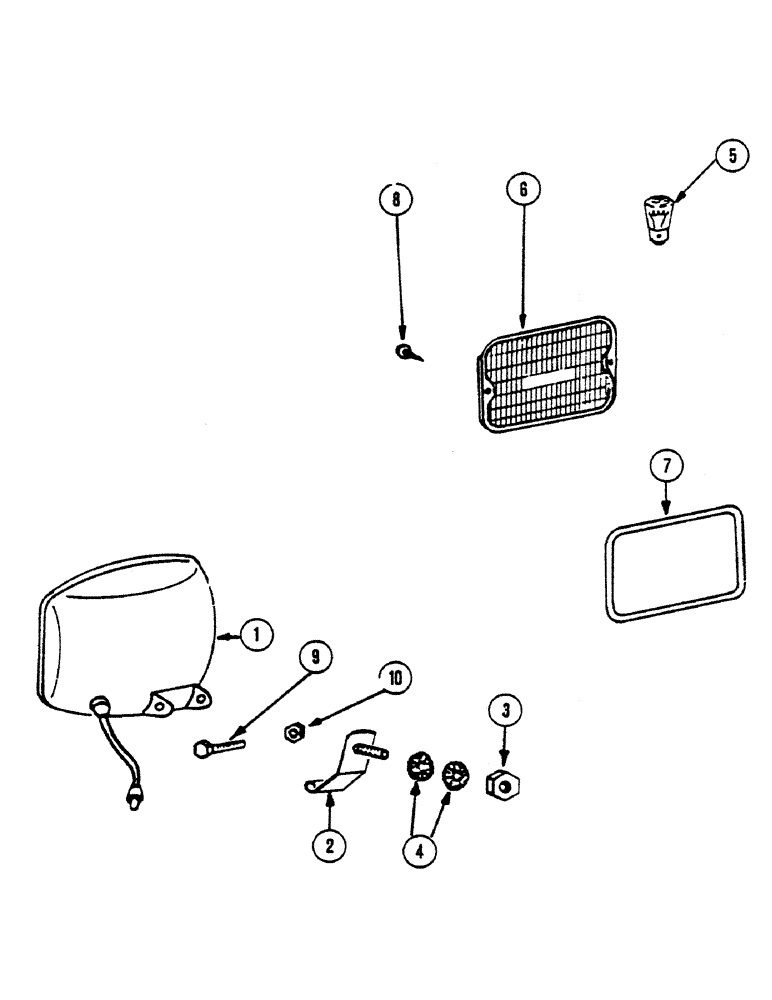

Запчасти Case IH 1055 (36) - SPOT LIGHT

3225472R91

HEADLIGHT

SPOT LIGHT ASSEMBLY, composed of Ref. No. 1 to, Serial Range: 1-10

2шт.

1

NSS

NOT SOLD SEPARAT

BODY, HEAD LAMP + GROMMET + ELECTRIC WIRE

1шт.

2

3225477R1

BRACKET

SUPPORT OF LIGHT

1шт.

3

3217140R1

NUT

HM, 10

1шт.

4

3217142R1

WASHER

AZ, 10

2шт.

5

3220994R1

LAMP

12 v - 45 W

1шт.

6

3220993R1

LENS

GLASS

1шт.

7

3220995R1

GASKET

SEAL

1шт.

8

SCREW, 3.5 x 18 mm

2шт.

9

SCREW, HM 6 x 40 mm

1шт.

10

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.
