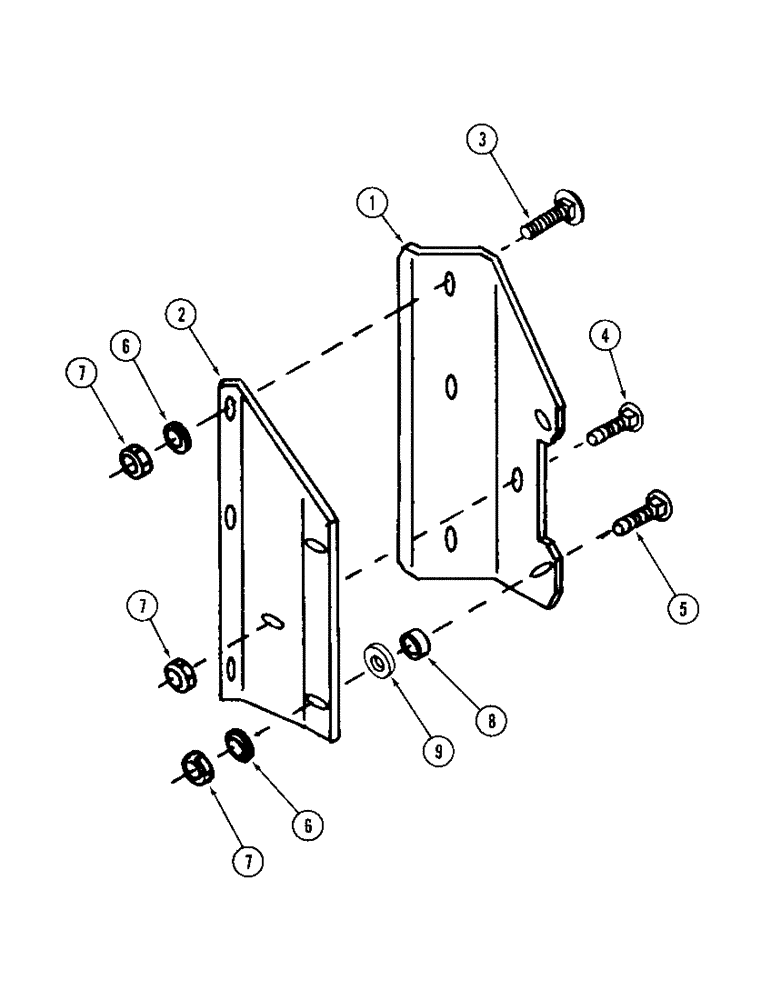

Запчасти Case IH ST148 (62) - EXTENSION WING

1

103107A1

PLATE

- extension, left (Shown)

1шт.

1

103106A1

PLATE

- extension, right

1шт.

2

103109C1

PLATE - end disc support, left (Shown)

1шт.

2

103108C1

SHAFT

PLATE - end disc support, right

1шт.

3

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

4

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

5

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square

4шт.

6

495-31044

WASHER,7/16" x 7/8" x .083"

- flat, 7/16 x 7/8 x 5/64 inch

10шт.

7

230-4135

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

12шт.

8

103110A1

SPACER

4шт.

9

103740A1

WASHER

- flat, heavy

2шт.
