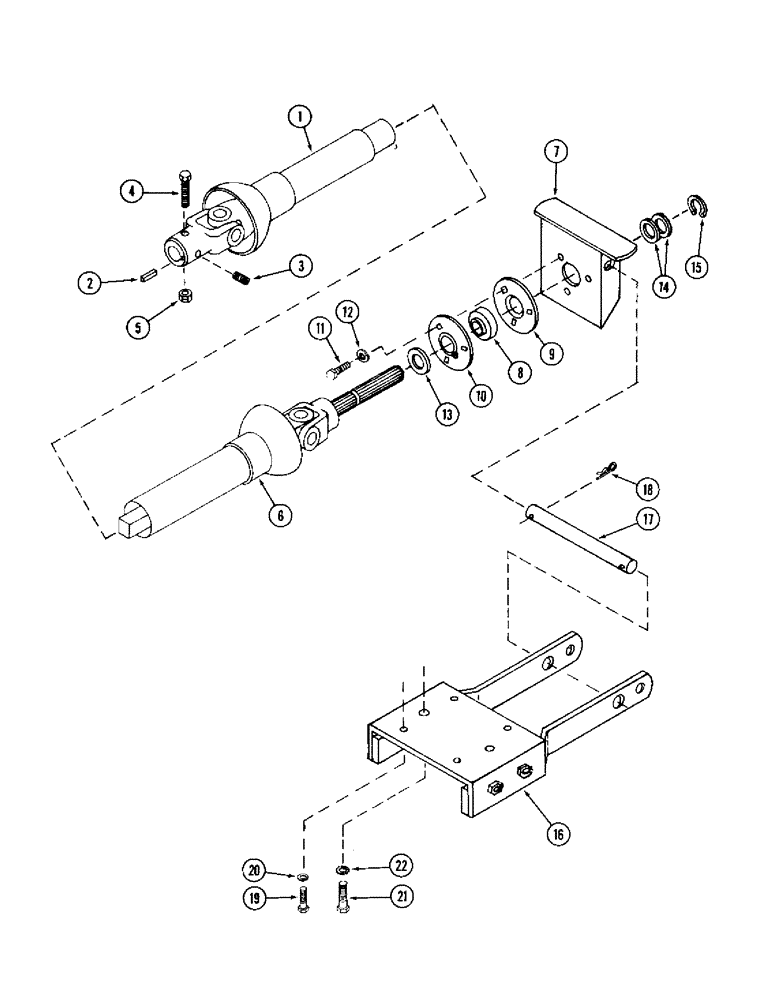

Запчасти Case IH ST148 (56) - DRIVE SHAFT

1

102537A1

DRIVE SHAFT

SHAFT ASSEMBLY - drive (Female)

1шт.

2

1958346C1

KEY

- square

1шт.

3

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW - set, square head, 5/16 NC x 1/2 inch, cup point

1шт.

4

26-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

- hex, 1/4 NC x 2 inch

1шт.

5

378531R1

LOCK NUT,1/4"-20, GA

NUT - hex lock, 1/4 inch NC

1шт.

6

1960523C1

SHAFT

JOINT ASSEMBLY - universal, male

1шт.

7

1976308C1

SUPPORT

BRACKET - drive shaft support

1шт.

8

1349508C1

BALL BEARING,1" ID x 2.0472" OD x 1.0629"

- ball

1шт.

9

1976427C1

FLANGE

- bearing

1шт.

10

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE - bearing

1шт.

11

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

3шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

13

1954930C1

WASHER

- jackshaft backup

1шт.

14

1954979C1

WASHER

- flat

1шт.

15

758318C1

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

16

102546A1

BEARING

CARRIER ASSEMBLY - bearing

1шт.

17

102544A1

PIN

- bearing carrier

1шт.

18

480523R1

HAIR PIN COTTER

9/64" dia

2шт.

19

514-712

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

Used with four-wheel drive tractors.

1шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

Used with four-wheel drive tractors.

1шт.

21

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- hex special, 12 MM - 1.25 x 35 MM

2шт.

Used with two-wheel drive tractors.

1шт.

22

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

2шт.

Used with two-wheel drive tractors.

1шт.
