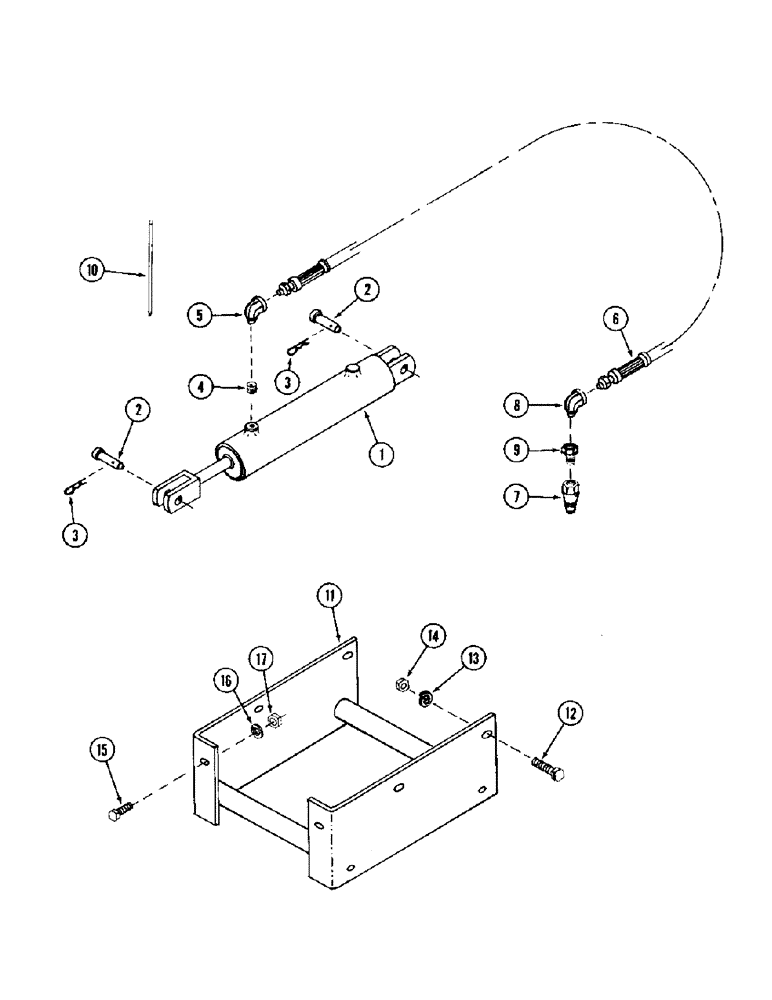

Запчасти Case IH ST148 (54) - LIFT CYLINDER SYSTEM

1

1958335C1

CYLINDER

- hydraulic

1шт.

2

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

2шт.

3

480523R1

HAIR PIN COTTER

9/64" dia

2шт.

4

1958337C1

ORIFICE

- cylinder control

1шт.

5

1976528C1

ELBOW

FITTING - hydraulic

1шт.

6

102574A1

HOSE

- hydraulic, 132 inch

1шт.

7

1976515C1

COUPLING

COUPLER - hydraulic quick connect

1шт.

8

1958336C1

ELBOW

FITTING - hydraulic

1шт.

9

102573A1

REDUCER

1шт.

10

289862C1

CABLE TIE,3/16" x 7"

STRAP - retaining

5шт.

11

102538A1

FRAME

ASSEMBLY - front mounting

1шт.

12

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

425-1010

NUT,5/8"-11, G5

4шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
