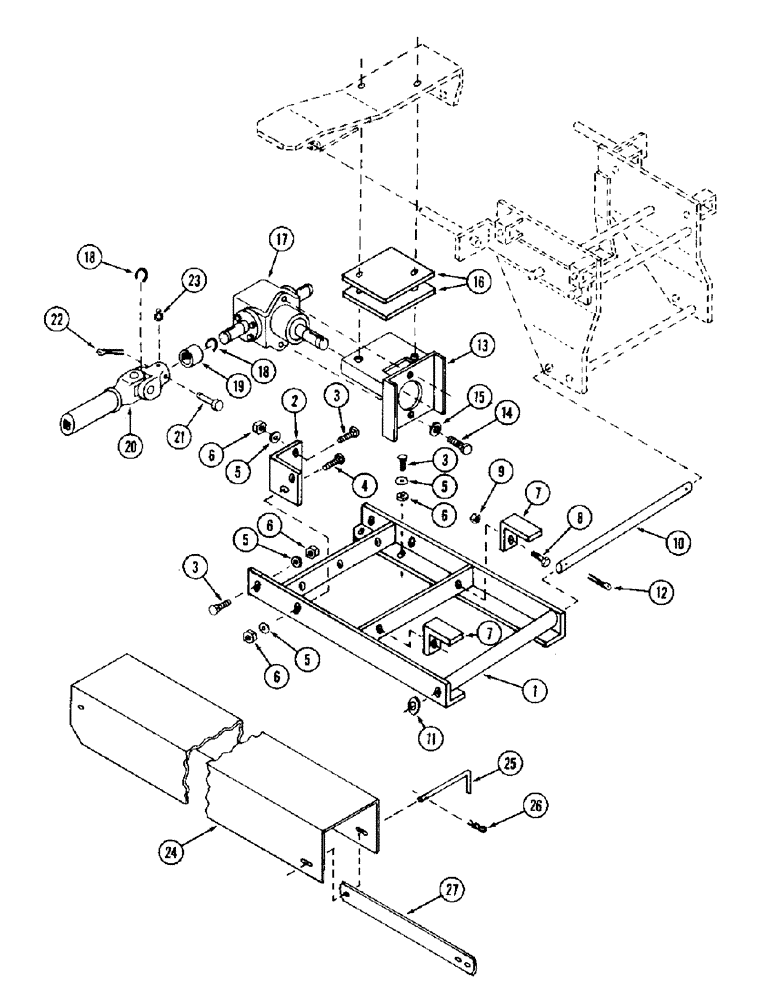

Запчасти Case IH ST148 (52) - MAIN FRAME AND GEARBOX

1

1958355C1

FRAME

- main

1шт.

2

1958356C1

BRACKET

- lift

1шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

1шт.

4

5550796R1

BOLT - round square head square neck, 3/8 NC x 1-1/4 inch

1шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex lock, 3/8 inch NC

9шт.

7

1958357C1

BRACKET

- stop

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

2шт.

10

1958358C1

PIN

- tilt

1шт.

11

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 1/16 inch

2шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

13

1960259C1

BRACKET

- gearbox mounting

1шт.

14

113-433

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5, Full Thd

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

1958321C1

PLATE

- gearbox spacer

2шт.

17

REF

INSTRUCTION

GEARBOX ASSEMBLY - snow thrower (See page 50)

1шт.

18

619467R1

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

2шт.

19

892736R1

SPACER,1 1/8" Tube x 5/8"

- 1-1/2 x 5/8 inch

1шт.

20

1958324C1

YOKE

JOINT ASSEMBLY - universal

1шт.

21

1976451C1

PIN

- shear

4шт.

22

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

23

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch

1шт.

24

102542A1

GUARD

- PTO

1шт.

25

1958192C1

PIN

- locating

2шт.

26

407207R1

CLIP

PIN - cotter, hair, 3/32 inch (Package of 50)

2шт.

27

103730A1

STRAP

- PTO guard mounting

2шт.
