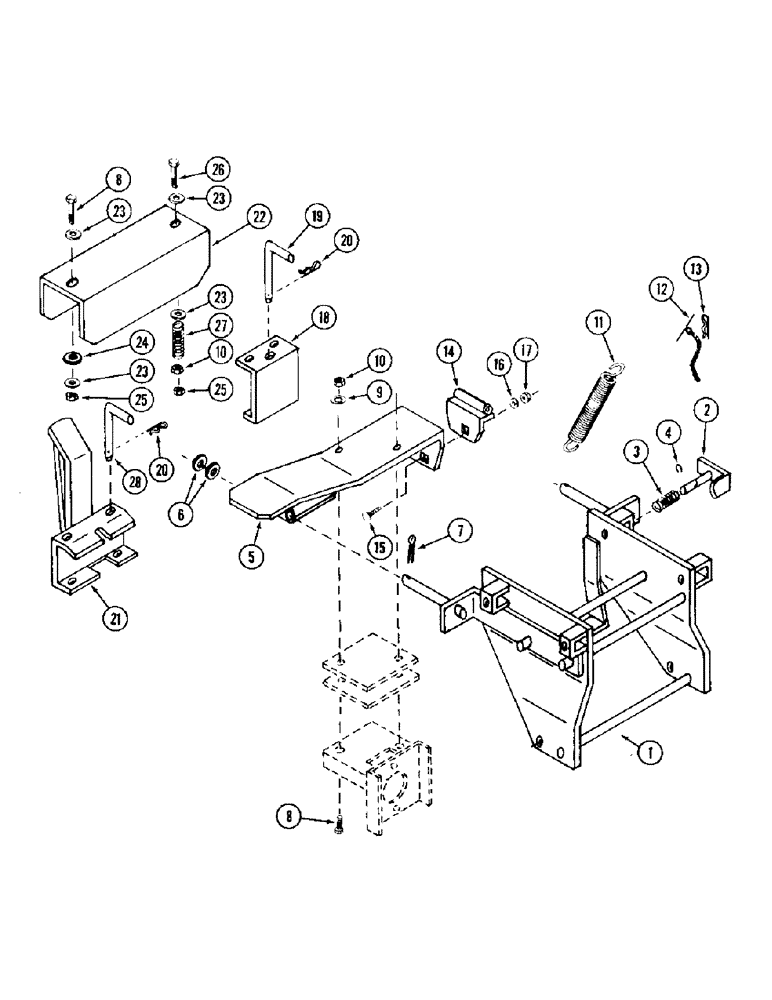

Запчасти Case IH ST148 (48) - HEADER MOUNTING FRAME

1

1958359C1

FRAME

- header mounting

1шт.

2

1958440C1

PIN

- quick release

4шт.

3

1958442C1

SPRING

- release pin tension

4шт.

4

373523R1

SNAP RING,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

4шт.

5

1958320C1

BRACKET

- gearbox adjusting

1шт.

6

495827R1

SPACER,1" Tube x 1/2"

- adjusting bracket

4шт.

7

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

2шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

425-106

NUT,3/8"-16, Cl 5

3шт.

11

1958333C1

SPRING

- lift

2шт.

12

1958334C1

CHAIN (AG)

CHAIN - retaining

2шт.

13

480523R1

HAIR PIN COTTER

9/64" dia

2шт.

14

102536A1

BRACKET

- gearbox locating

1шт.

15

412-820

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/4", Gr 2

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

1шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

18

1958332C1

BRACKET

- spring anchor

1шт.

19

1958192C1

PIN

- locating

1шт.

20

407207R1

CLIP

PIN - cotter, hair, 3/32 inch (Package of 50)

3шт.

21

102550A1

BRACKET

- mounting

1шт.

22

1958328C1

COVER

- PTO

1шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

24

1958329C1

WASHER

- neoprene

1шт.

25

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, grade 8

2шт.

26

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

27

1958442C1

SPRING

- release pin tension

1шт.

28

102533A1

PIN

- locating

2шт.
