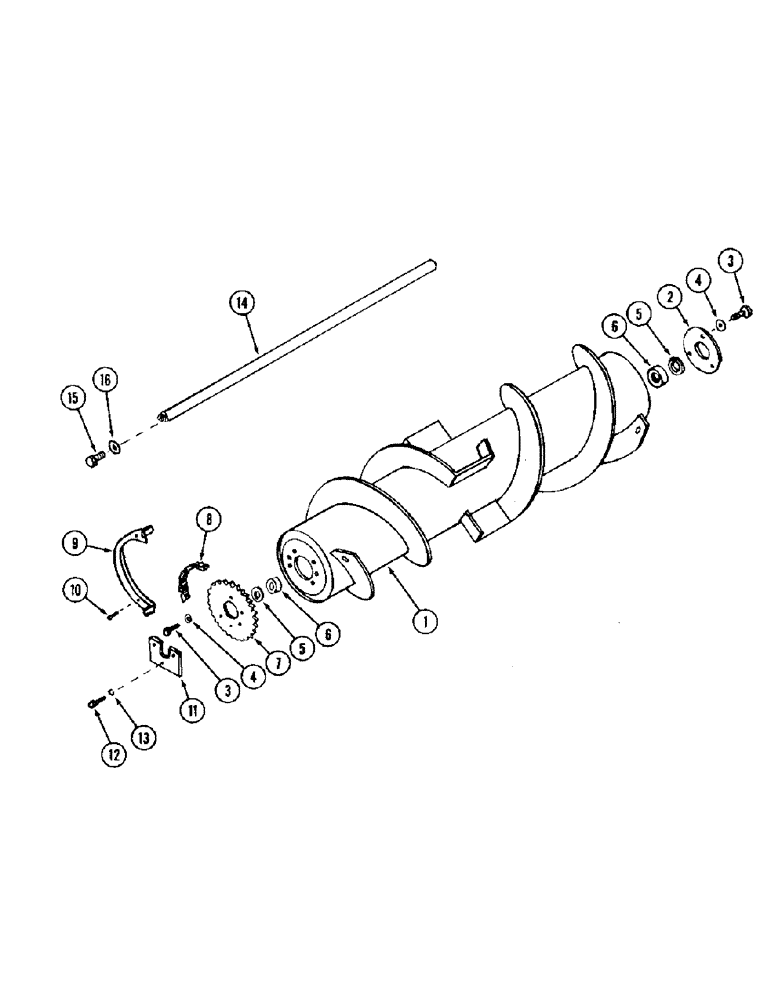

Запчасти Case IH ST148 (46) - AUGER

1

1958399C1

AUGER

- snow thrower

1шт.

2

462360R1

FLANGED BEARING

RETAINER - bearing flangette

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

5

1954930C1

WASHER

- jackshaft backup

2шт.

6

1958383C1

BALL BEARING,1" ID x 2" OD x 1.0629"

BEARING - ball

2шт.

7

1958341C1

SPROCKET ASSY.

SPROCKET - auger

1шт.

8

102528A1

CHAIN ASSEMBLY - auger drive

1шт.

9

1958343C1

GUARD

- chain

2шт.

10

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - 1/4 NC x 1/2 inch, self-tapping

4шт.

11

1958342C1

PLATE

- auger mounting

1шт.

12

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex lock, 5/16 NC x 3/4 inch

3шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

14

1958340C1

SHAFT

- auger

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
