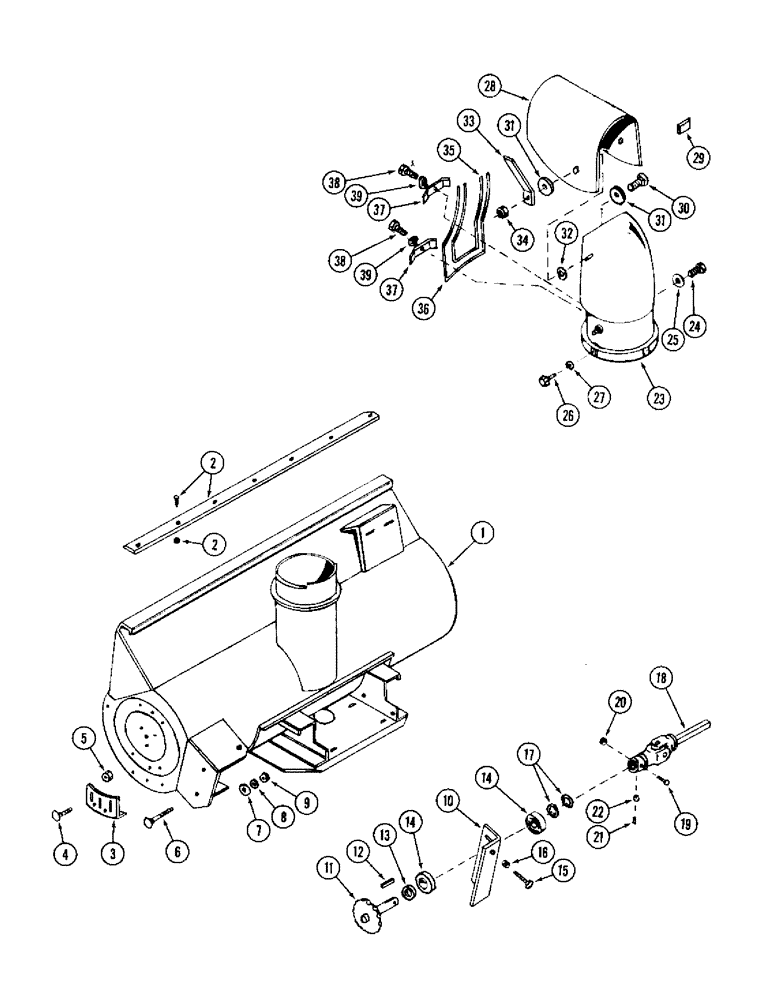

Запчасти Case IH ST148 (44) - AUGER HOUSING AND DISCHARGE CHUTE

1

1958396C1

HEAT-EXCHANGER

HOUSING - auger

1шт.

2

1960260C1

BLADE

REPAIR KIT - scraper blade

1шт.

3

1958398C1

SHOE

- skid

2шт.

4

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

6шт.

5

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

6

1958395C1

BOLT,1/2" - 13 x 3 1/2", Full Thd

- bracket retaining

2шт.

7

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

1шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

10

1958344C1

HOUSING ASSY.

BRACKET - jackshaft

1шт.

11

102529A1

JACKSHAFT

AND SPROCKET ASSEMBLY

1шт.

12

1958346C1

KEY

- square

1шт.

13

1958394C1

SPACER

- jackshaft

1шт.

14

475627R91

BALL BEARING,19.05mm ID x 41.27mm OD x 12.7mm W

BEARING ASSEMBLY - ball

2шт.

15

718031R1

SET SCREW

- adjusting

1шт.

16

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

17

43374D

SPRING WASHER

- flat, 49/64 x 1-1/16 x 1/16 inch

2шт.

18

1958354C1

YOKE

JOINT ASSEMBLY - universal

1шт.

19

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

20

378531R1

LOCK NUT,1/4"-20, GA

NUT - hex lock, 1/4 inch NC

1шт.

21

483-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

SCREW - set, headless hex socket, 3/8 NC x 1/2 inch

1шт.

22

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

23

1958347C1

SPOUT, DISCHARGE

CHUTE - discharge

1шт.

24

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

25

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

1шт.

26

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

4шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

28

1958351C1

DEFLECTOR

- chute

1шт.

29

1958352C1

PAD

- deflector

1шт.

30

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - round head square neck, 5/16 NC x 1 inch

2шт.

31

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

4шт.

32

193-72

LOCK WASHER

- internal-external tooth lock, 3/8 inch

2шт.

33

1958353C1

STRAP

- locking

2шт.

34

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

35

1958348C1

GUARD

WIRE - guard, small

1шт.

36

1958349C1

GUARD

WIRE - guard, large

1шт.

37

1958350C1

BRACKET

- guard

2шт.

38

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

39

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
