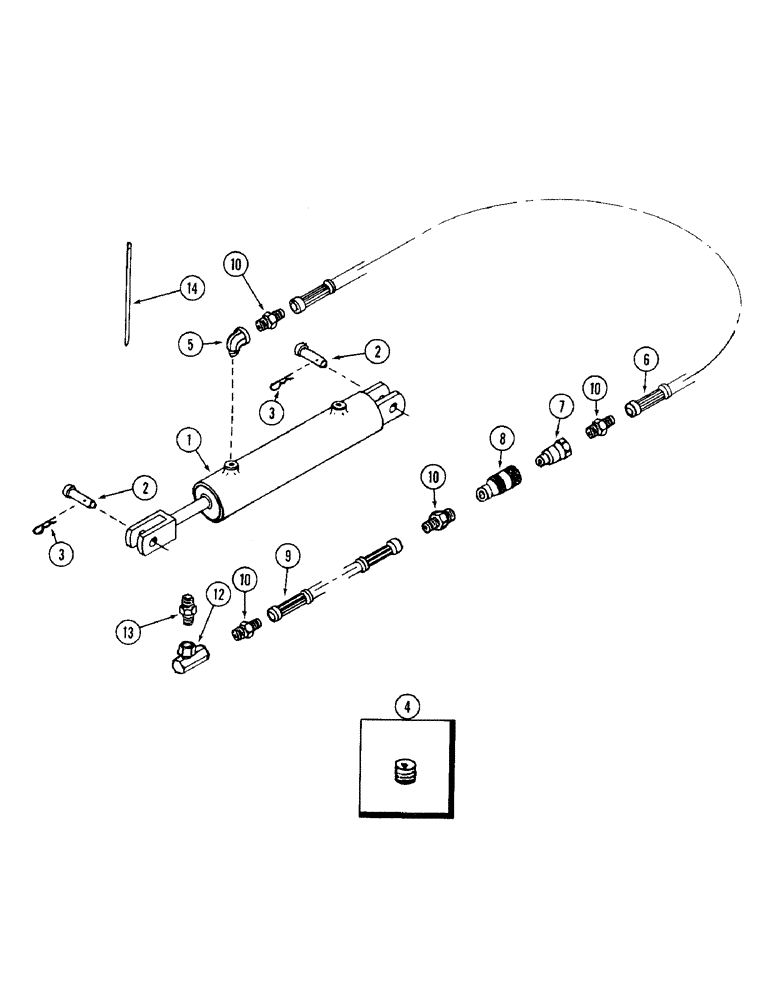

Запчасти Case IH C100 (52) - HYDRAULIC LIFT CYLINDER SYSTEM

1

1958335C1

CYLINDER

ASSEMBLY - hydraulic lift

1шт.

2

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

2шт.

3

480523R1

HAIR PIN COTTER

2шт.

4

1958337C1

ORIFICE

- flow, hydraulic (Not used in this application)

1шт.

5

1958336C1

ELBOW

- 90 degree, 1/4 inch PT

1шт.

6

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

Assy 6.35 mm ID x 2285.00 mm

1шт.

7

166123C91

COUPLING

COUPLER - hydraulic, self sealing male

1шт.

8

166122C92

ASSEMBLY

COUPLER - hydraulic, self sealing female

1шт.

9

1336714C1

HYDRAULIC HOSE

HOSE ASSEMBLY - hydraulic, 14-3/4 inch long

1шт.

10

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

4шт.

12

1960241C1

ELBOW

- 90 degree swivel

1шт.

13

217-1080

HYD CONNECTOR,1/4" - 18 NPT x 1/4" - 18 NPT

CONNECTOR, (NIPPLE, PIPE) 1/4"-18 NPTF

1шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

3шт.
