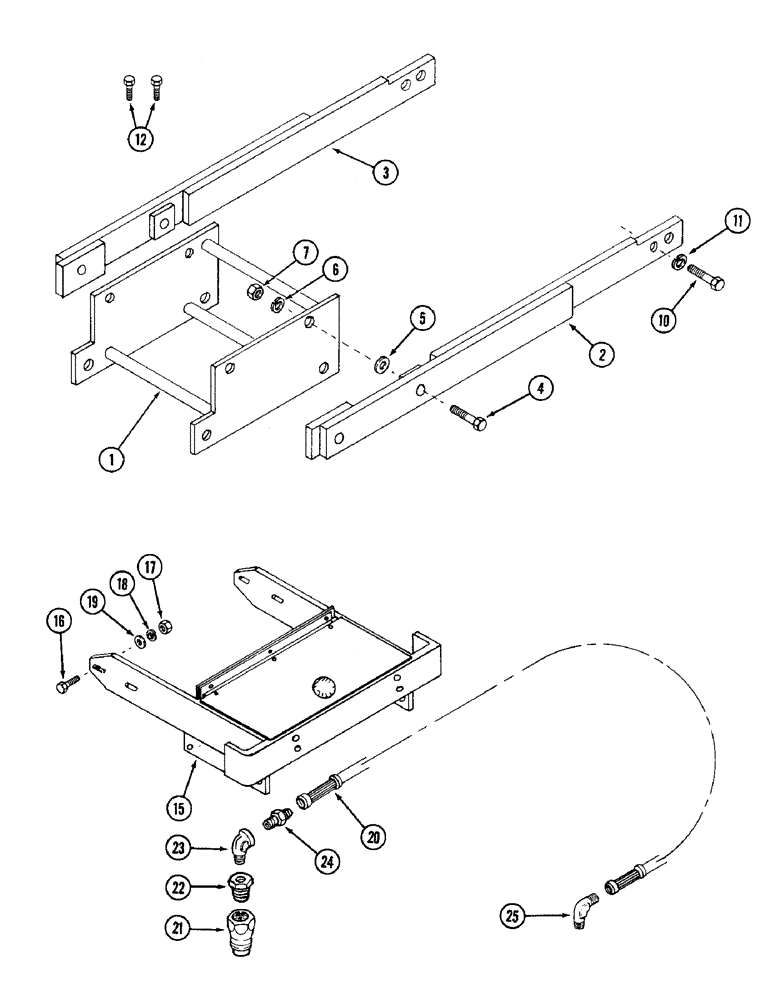

Запчасти Case IH C100 (48) - MOUNTING KIT, 245 AND 255 TRACTORS

1

1958467C1

ANCHOR

- mounting, front

1шт.

2

1976408C1

SUPPORT

FRAME - support, left

1шт.

3

1976409C1

SUPPORT

FRAME - support, right

1шт.

4

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

4шт.

5

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

4шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

7

425-1010

NUT,5/8"-11, G5

4шт.

10

1958424C1

BOLT,Hex, M12 x 1.25 x 35mm

- hex special, 12 MM - 1.25 x 35 MM

2шт.

11

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

12

1954987C1

BOLT,Hex, M10 x 1.25 x 50mm

- hex, 10 MM - 1.25 x 50 MM

2шт.

15

1976514C1

FUNNEL

FRAME - front, 275 tractors

1шт.

16

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

275 tractors Hex, 1/2"-13 x 1 3/4", G5

4шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 275 tractors 1/2"-13, G5

4шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 275 tractors 1/2"

4шт.

19

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch, 275 tractors

4шт.

20

810604C1

HYDRAULIC HOSE

HOSE - hydraulic, 29 inch long, 275 tractors

1шт.

21

1976515C1

COUPLING

COUPLER ASSEMBLY - hydraulic, 275 tractors

1шт.

22

444033

ADAPTER

BUSHING - reducer, 1/2 to 1/4 inch PT, 275 tractors

1шт.

23

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- street, 90 degree, 1/4 inch PT x female PT, 275 tractors

1шт.

24

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT, 275 tractors

1шт.

25

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT, 275 tractors

1шт.
