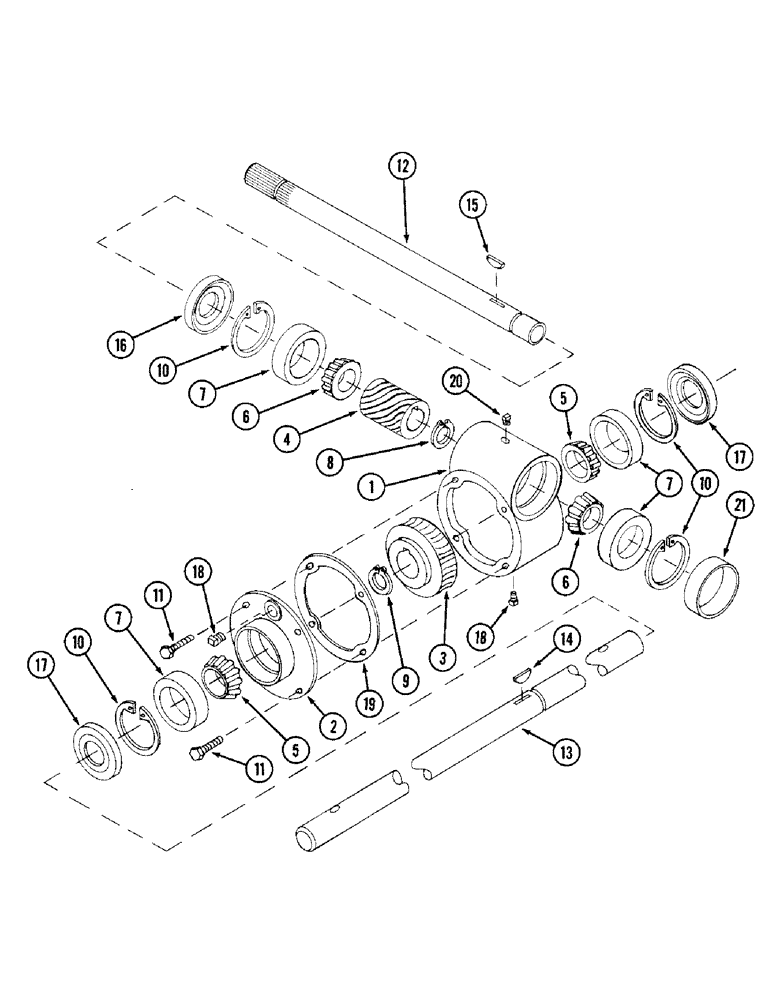

Запчасти Case IH C100 (44) - DRIVE GEARBOX

1349513C1

GEARBOX ASSY

GEARBOX ASSEMBLY - drive

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - gearbox

1шт.

2

1349522C1

COVER

- gearbox

1шт.

3

1349523C1

GEAR

- worm type

1шт.

4

1349524C1

GEAR

- worm type

1шт.

5

1958296C1

ROLLER BEARING

CONE - bearing

2шт.

6

1958295C1

ROLLER BEARING

CONE - bearing

2шт.

7

1958294C1

BEARING

CUP - bearing

4шт.

8

1349525C1

RING, SNAP

RING - retaining, external

1шт.

9

1349526C1

RING, SNAP

RING - retaining, internal

1шт.

10

594433R1

RING

- retaining, internal

4шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

12

1349527C1

SHAFT

- input

1шт.

13

1349533C1

SHAFT

- output

1шт.

14

124556

WOODRUFF KEY,#18, 1/4" x 1 1/8", HT

1шт.

15

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

16

204139C91

SEAL

- input shaft

1шт.

17

1958286C1

SEAL

- output shaft

2шт.

18

20972R1

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - level, square head, 3/8 inch PT

2шт.

19

1349529C1

GASKET

- cover

1шт.

20

1976597C1

PLUG

- vent

1шт.

21

1349531C1

CAP

- input

1шт.

1349532C1

SHIM

- bearing

1шт.
