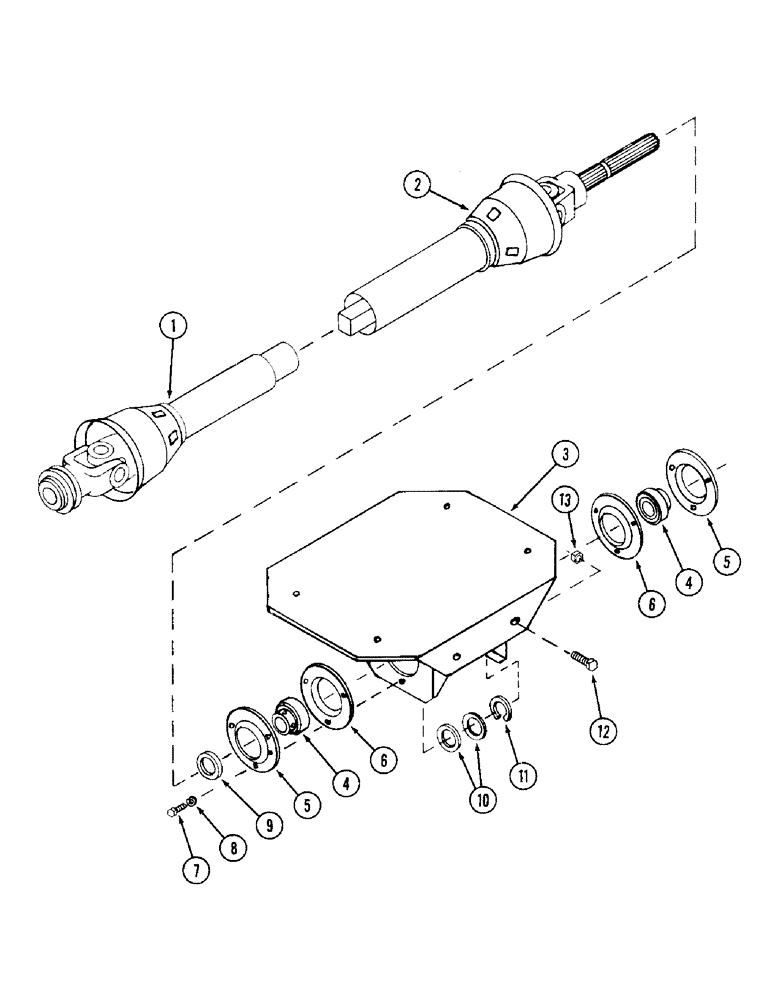

Запчасти Case IH C100 (40) - FRONT DRIVE SHAFT

1

1349575C1

SHAFT

ASSEMBLY - drive, female

1шт.

2

1349506C1

SHAFT

ASSEMBLY - drive, male

1шт.

3

1349507C1

SUPPORT

- drive shaft

1шт.

4

1349508C1

BALL BEARING,1" ID x 2.0472" OD x 1.0629"

- ball

2шт.

5

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE ASSEMBLY - bearing (With lube fitting)

2шт.

6

1976427C1

FLANGE

- bearing

2шт.

7

424-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 2

- hex, 5/16 NC x 5/8 inch

6шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

9

1954930C1

WASHER

- pivot, 5/32 inch thick

1шт.

10

1954979C1

WASHER

- spacer, bearing

2шт.

11

A34428

SNAP RING,#98, Ext

Ring, Snap, #98, Ext

1шт.

12

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

13

131-1182

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.
