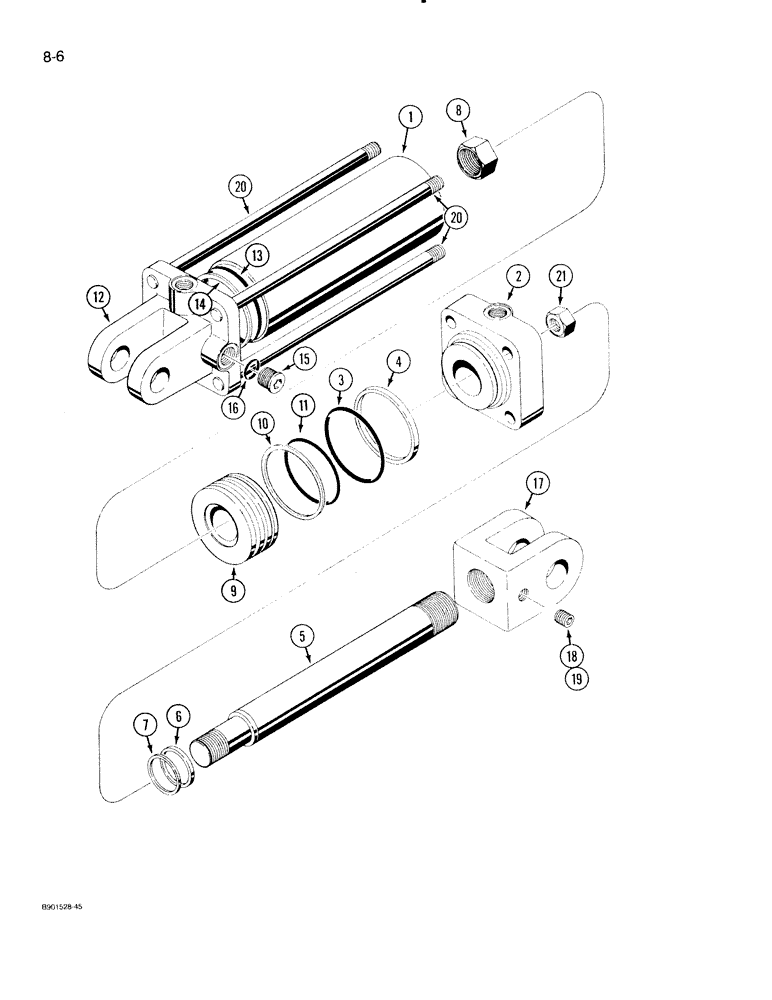

Запчасти Case IH 80 (8-06) - LIFT CYLINDER, 1272147C91, MACHINES WITH TRACTOR DRAWBAR MOUNTING ATTACHMENT (08) - HYDRAULICS

1272147C91

CYLINDER

ASSEMBLY - 3-1/2 ID x 8 inch stroke, 3/4-16 inch ports, transport lift, replaces 61105C91, 140683C94, 145352C91, 371292R95, 403842R94 and 546719R91 cylinder assemblies

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1272826C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, gland

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

5

145231C1

PISTON ROD

ROD - piston

1шт.

6

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

8

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex, self-locking, 7/8 inch NF, grade 8

1шт.

9

145422C2

PISTON

- cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - 3 ID x 3-3/16 inch OD, backup, piston seal

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

12

1272825C1

HEAD

- cylinder, closed end

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - 3-1/4 ID x 3-1/2 inch OD, cylinder head

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

14

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

15

9410359

PLUG

- hex socket, 3/4-16 inch O-ring boss

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of P/N 84919C2 Seal Kit

1шт.

17

145233C1

CLEVIS,1/4" - 12

- rod

1шт.

18

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

19

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

20

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

21

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

22

1266753C1

PIN,25.4mm OD x 96.83mm L

- clevis and cylinder head, not shown

2шт.

23

520175R1

CLIP

PIN - cotter, hair type, 3/16 inch diameter, not shown

4шт.

84919C2

GASKET KIT

KIT - seal, Includes: Ref. 3, 4, 6, 7, 10, 11, 13, 14, 16 and (2) wear rings not used on this cylinder

1шт.
