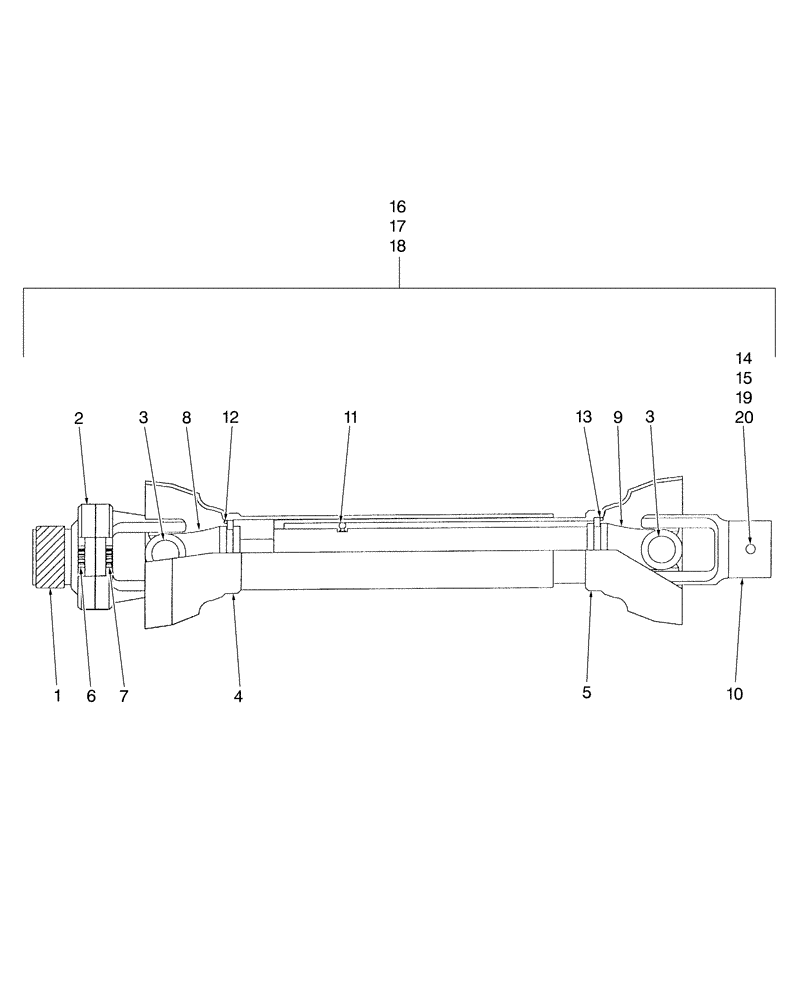

Запчасти Case IH 716C (036) - REAR PTO ASSEMBLY, 72"

1

LF820901

KIT

Kit, Repair, Slide Lock

1шт.

2

LF820902

YOKE

35R Shear

1шт.

3

LF820903

KIT

Kit, Repair, 35 Series Cross

1шт.

4

LF820904

OUTER SHIELD

Shield, Outer

1шт.

5

LF820905

INNER SHIELD

Shield, Inner

1шт.

6

PL

PROCURE LOCALLY

Bolt, Shear, 5/16" x 1", Gr.5

1шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 5/16"

1шт.

8

LF820906

YOKE

Yoke And Shaft, 35R

1шт.

9

LF820907

YOKE

Yoke And Tube, 35R

1шт.

10

LF820908

YOKE

Yoke, 35R, 1-1/2"

1шт.

11

PL

PROCURE LOCALLY

Grease, Zerk

1шт.

12

LF820915

KIT

Snap Ring and Nylon Bearing Outer Shield

1шт.

13

LF820912

BEARING ASSY

Snap Ring and Nylon Bearing Inner Shield

1шт.

14

PL

PROCURE LOCALLY

Bolt, 3/8" x 3-1/2", Gr.5

1шт.

15

PL

PROCURE LOCALLY

Nut, Lock, 3/8"

1шт.

16

NS

NOT SERVICED

Complete Weasler, 35R Series PTO

1шт.

17

LF820913

FRONT PTO ASSY

Complete Weasler, 35R Tractor Half PTO

1шт.

18

LF820914

REAR PTO ASSY

Complete Weasler, 35R Blower Half PTO

1шт.

19

PL

PROCURE LOCALLY

Nut, Jam, 3/8"

1шт.

20

PL

PROCURE LOCALLY

Screw, Set, 3/8" x 1", Fn Th.

1шт.

21

PL

PROCURE LOCALLY

Key, Stock, 3/8" x 2"

1шт.

Not Illustrated

1шт.
