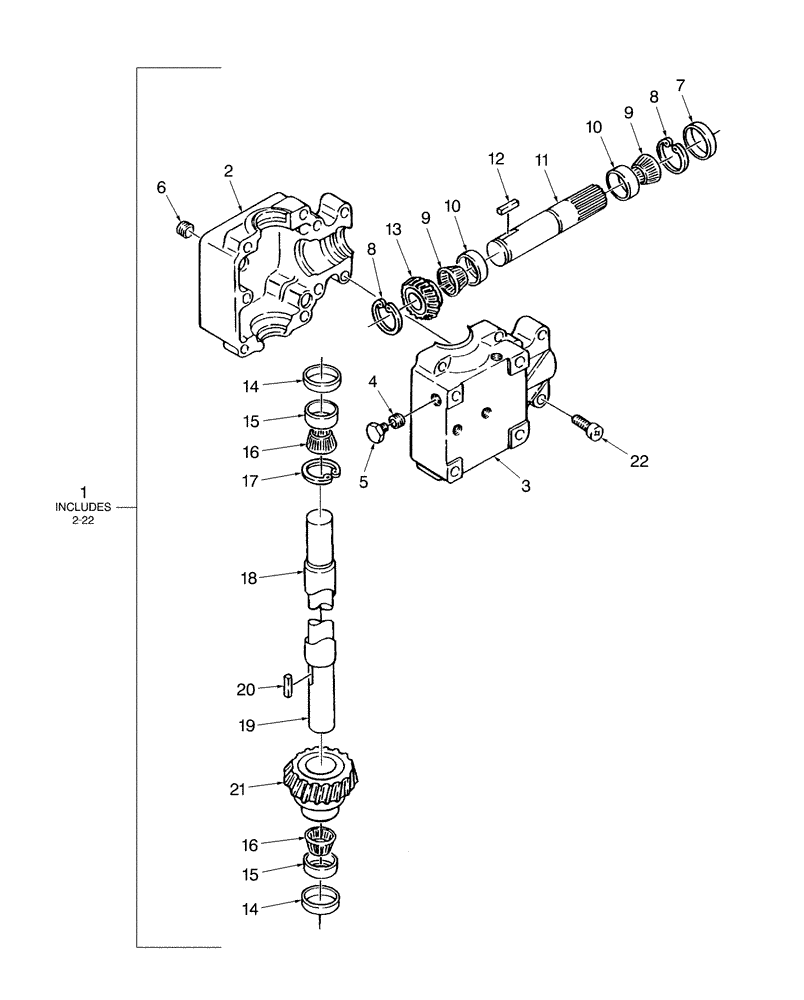

Запчасти Case IH 716C (034) - GEARBOX, 72"

1

LF8203

GEARBOX

Includes: Ref 2 thru 22

1шт.

2

LF820303

HOUSING

Lower

1шт.

3

LF820317

HOUSING

Upper

1шт.

4

LF820319

DRIVE BUSHING

Upper Housing

1шт.

5

AUB141220

ASPIRATOR

Vent, Upper Housing

1шт.

6

LF820320

PLUG

Lower Housing

1шт.

7

LF820309

SEAL

Stub Shaft

1шт.

8

LF820311

RING

Retaining, Stub Shaft

2шт.

9

273631

ROLLER BEARING,31.75mm ID x 19.58mm W

2шт.

10

116210

BEARING CUP,69.01mm OD x 15.88mm W

Bearing

2шт.

11

LF820316

SHAFT

Stub

1шт.

12

LF820314

KEY

Key, Stub Shaft

1шт.

13

LF820302

GEAR

Stub Shaft

1шт.

14

LF820310

SEAL

2шт.

15

V2790

BEARING CUP

Bearing

2шт.

16

36057

BEARING CONE,38.11mm ID x 19.05mm W

2шт.

17

LF820312

RING

Ring

1шт.

18

LF820315

SHAFT

1шт.

19

LF820313

SPACER

Spacer

1шт.

20

LF820304

KEY

Key

1шт.

21

LF820301

GEAR

1шт.

22

PL

PROCURE LOCALLY

Screw, Cap, 3/8x2-1/4"

9шт.

Procure Locally

1шт.
