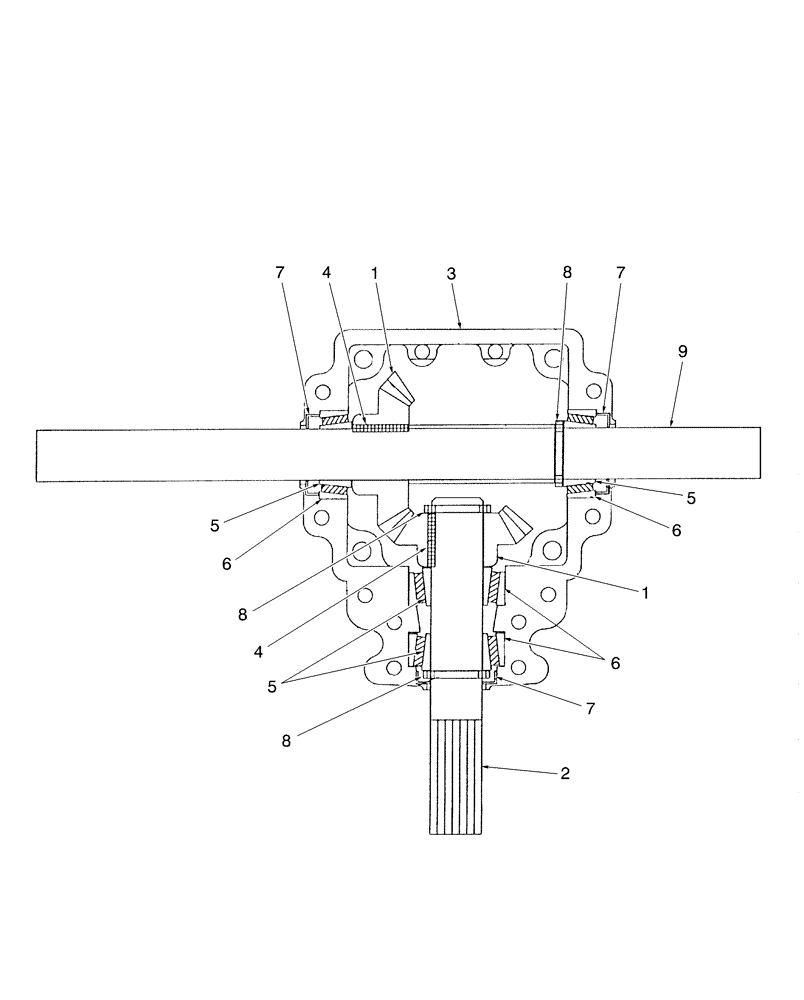

Запчасти Case IH 716C (033) - GEARBOX, 60"

LF8206

GEARBOX

1шт.

1

LF824901

GEAR

Shaft

2шт.

2

LF820210

SHAFT

Stub

1шт.

3

LF820303

HOUSING

Lower

1шт.

4

LF820204

KEY

Shaft, Key

2шт.

5

LF820205

RACE

Bearing

4шт.

6

LF820206

BEARING

4шт.

7

LF820209

SEAL

Shaft

3шт.

8

LF820207

SNAP RING

Ring, Shaft

3шт.

9

LF820208

SHAFT

1шт.

10

LF820211

HOUSING

Upper

1шт.

Not Illustrated

1шт.

11

LF820212

HOUSING

Upper Housing

1шт.

Not Illustrated

1шт.

12

LF820213

DRIVE BUSHING

Upper Housing

1шт.

Not Illustrated

1шт.

13

LF820214

PLUG

Lower Housing

1шт.

Not Illustrated

1шт.

14

LF820215

SCREW

Housing, Cap

1шт.

Not Illustrated

1шт.

15

LF8206

GEARBOX

1шт.

Not Illustrated

1шт.
