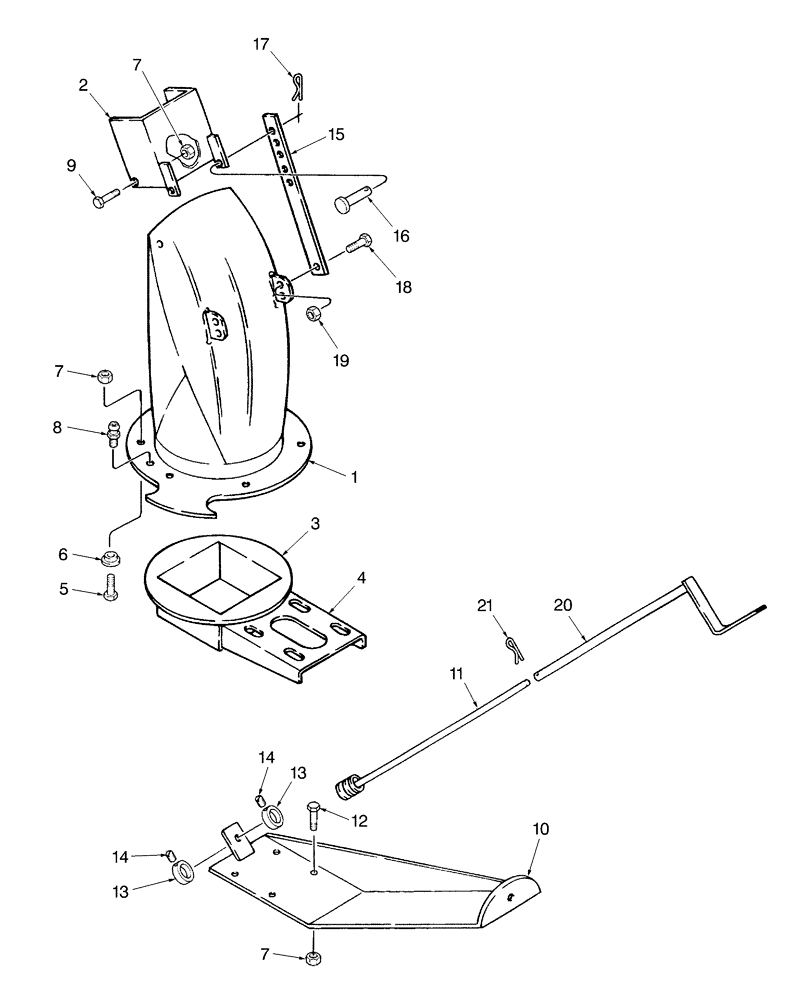

Запчасти Case IH 716C (032) - SPOUT & RELATED PARTS, 60" & 72"

1

LF8243

SPOUT

DISCHARGE SPOUT

1шт.

2

LF9550

DEFLECTOR

Flipper

1шт.

3

LF9551

RING

Ring, Shoulder Bolt

1шт.

4

LF9552

SUPPORT

Rotator

1шт.

5

LF4037

BOLT

Shoulder, 3/8"

1шт.

6

LF4066

WASHER

Step, 3/8"

1шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 3/8"

1шт.

8

PL

PROCURE LOCALLY

Fitting, Grease

1шт.

9

PL

PROCURE LOCALLY

Bolt, G5, 3/8" x 1"

1шт.

10

LF9561

SUPPORT

Hand Crank

1шт.

11

LF9560

CRANK

Hand, Lower Half

1шт.

12

PL

PROCURE LOCALLY

Bolt, G5, 3/8" x 1-1/4"

1шт.

13

LF8288

COLLAR

Collar, Locking

2шт.

14

PL

PROCURE LOCALLY

Screw, Set, 1/4" x 3/8"

1шт.

15

LF9554

BRACKET

Flipper Adjustment

1шт.

16

LF4088

PIN

Flipper, Flat Hd., 1" x 1/2" x 3"

1шт.

17

PL

PROCURE LOCALLY

Clip, Spring

1/2шт.

18

PL

PROCURE LOCALLY

Bolt, G5, 1/2" x 4-1/2"

1шт.

19

PL

PROCURE LOCALLY

Nut, Lock, 1/2"

1шт.

20

LF9582

CRANK

Hand, Upper Half

1шт.

21

PL

PROCURE LOCALLY

Pin, Spring Clip

1шт.
