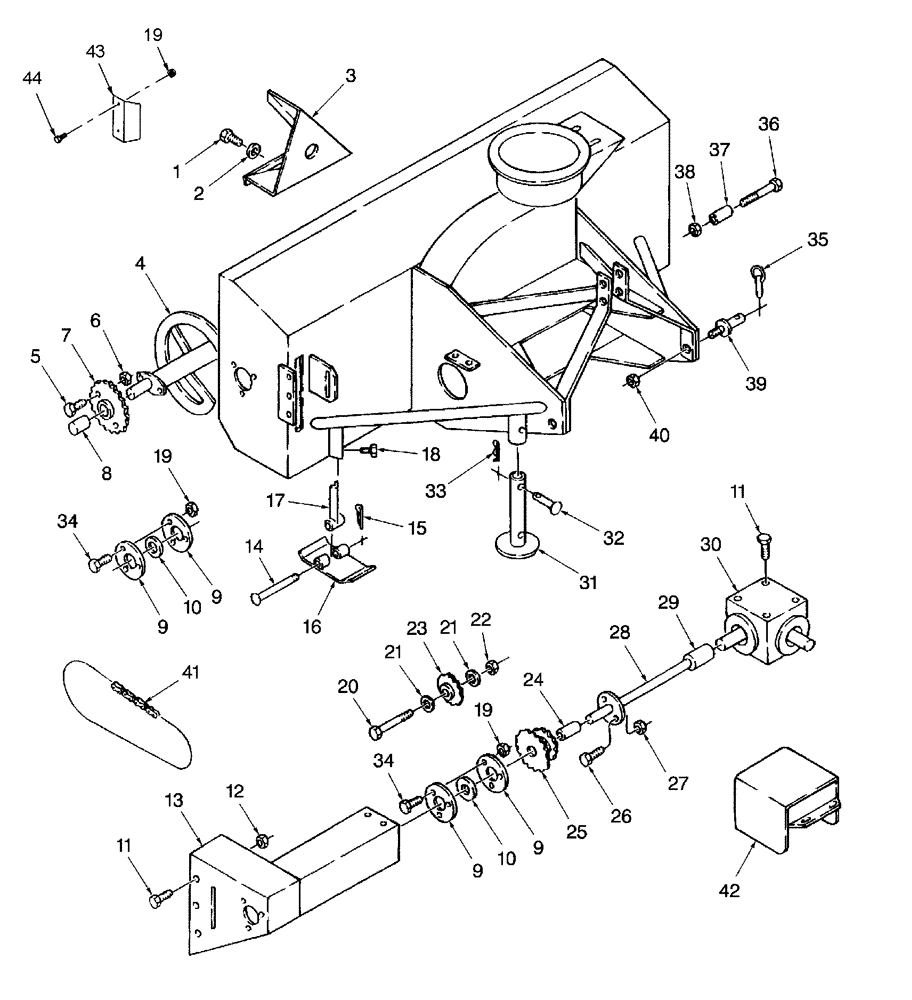

Запчасти Case IH 716C (031) - AUGER & FRAME, 72"
№
Артикул
Название
Примечание
Количество
1
PL
PROCURE LOCALLY
Bolt, 5/8" x 1-1/4"
1шт.
2
PL
PROCURE LOCALLY
Washer, Lock, 5/8"
1шт.
3
LF9535
FAN
27" Dia. x 6" Deep
1шт.
4
LF9601
AUGER
16" Dia. x 72"
1шт.
5
PL
PROCURE LOCALLY
Bolt, 7/16" x 1-1/2"
1шт.
6
PL
PROCURE LOCALLY
Nut, Lock, 7/16"
1шт.
7
LF8225
DRIVING SPROCKET
Auger Drive, W/Bushing
1шт.
8
LF822501
BUSHING
Auger Drive Sprocket
1шт.
9
LF8290
BEARING
Flange
4шт.
10
LF8260
BEARING
1-3/8"
2шт.
11
PL
PROCURE LOCALLY
Bolt, 1/2" x 1-1/2"
4шт.
12
PL
PROCURE LOCALLY
Nut, Lock, 1/2"
1шт.
13
LF9678
SHIELD
Cross Shaft - Replaces LF9547
1шт.
14
LF4094A
FILTER, ENGINE OIL
FILTER, OIL Skid Shoe, 3/4" x 5"
2шт.
15
PL
PROCURE LOCALLY
Pin, Cotter, 1/8" x 1"
2шт.
16
LF9575
PAD
Skid
2шт.
17
LF9576
ARM
Skid Shoe
2шт.
18
PL
PROCURE LOCALLY
Screw, Set, Square Hd.
2шт.
19
PL
PROCURE LOCALLY
Nut, Lock, 3/8"
1шт.
20
PL
PROCURE LOCALLY
Bolt, 5/8" x 4"
1шт.
21
PL
PROCURE LOCALLY
Washer, Flat, 5/8"
1шт.
22
PL
PROCURE LOCALLY
Nut, Lock, 5/8"
1шт.
23
LF8229
DRIVING SPROCKET
Idler
1шт.
24
LF823201
BUSHING
Drive Sprocket, 1-5/8" OD
1шт.
25
LF8232
DRIVING SPROCKET
Drive, W/Shear Flange
1шт.
26
PL
PROCURE LOCALLY
Bolt, 5/16" x 1"
1шт.
27
PL
PROCURE LOCALLY
Nut, Lock, 5/16"
1шт.
28
LF9607
DRIVE SHAFT
1-3/8" x 28-1/2"
1шт.
29
LF8236
COUPLING
Spline
1шт.
30
LF8203
GEARBOX
1шт.
31
LF9572
STAND
Jack
1шт.
32
LF4096
HEADED PIN
Jack Stand
1шт.
33
PL
PROCURE LOCALLY
Clip, Pin Spring
1шт.
34
PL
PROCURE LOCALLY
Bolt, Carriage, 3/8" x 3/4"
1шт.
35
PL
PROCURE LOCALLY
Clip, Linch Pin
2шт.
36
PL
PROCURE LOCALLY
Bolt, 3/4" x 4-1/2"
2шт.
37
LF9614
BUSHING
3/4" x 2-1/2"
2шт.
38
PL
PROCURE LOCALLY
Nut, Lock, 3/4"
2шт.
39
LF4101
PIN
Cat. II & III
2шт.
40
PL
PROCURE LOCALLY
Nut, 7/8"
2шт.
41
719026
CHAIN
Roller, 69" Lg., 92 Links
1шт.
42
LF641
SHIELD
PTO
1шт.
43
LF9544
SHIELD
Auger Chain
1шт.
44
PL
PROCURE LOCALLY
Bolt, 3/8" x 1-1/4" Grade 5
2шт.
45
LF7154
CUTTING EDGE
3"x72", Weld-On
1шт.
Not Illustrated
1шт.
Выбрано товаров: 46
