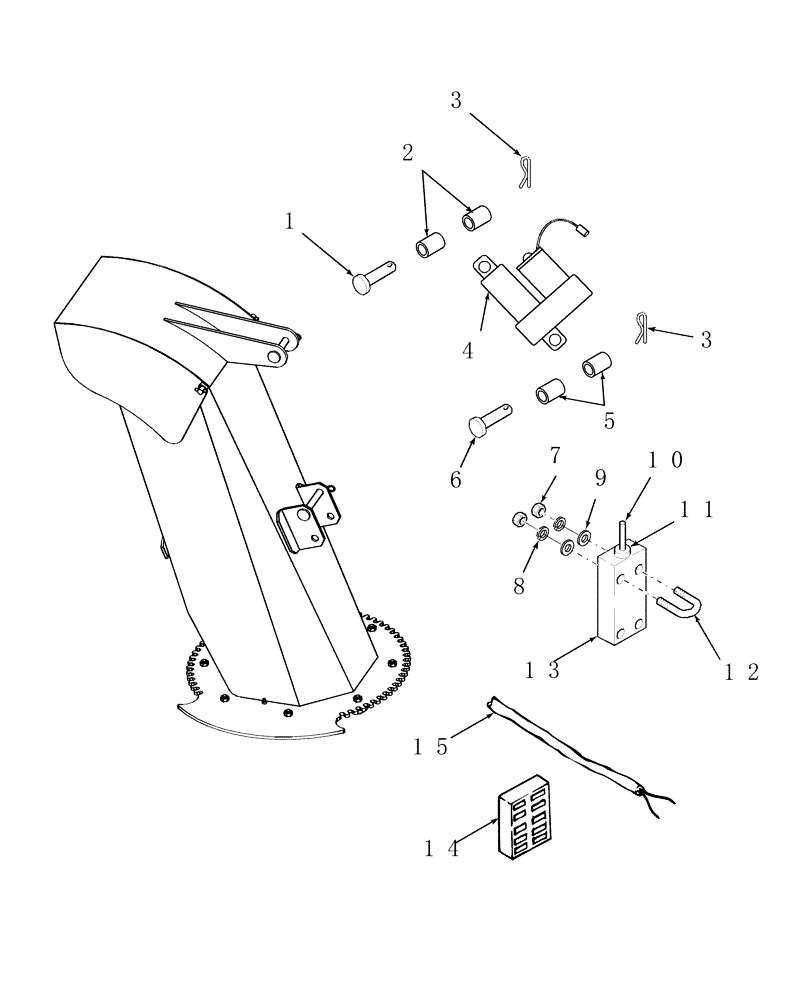

Запчасти Case IH 716C (041) - ELECTRIC DEFLECTOR KIT

W0

ORDER WHOLEGOODS

Kit, Electric Deflector Kit {716358001}

1шт.

Order Thru Wholegoods

1шт.

1

LF4088

PIN

Flipper, 1/2" x 3" Lg. Hdtop Pin

1шт.

2

LF9591

BUSHING

Electric Actuator, 1/2", Top

2шт.

3

LF4089

SPRING CLIP

Clip Hair, 0.093 x 1-5/8"

2шт.

4

Motor, Electric Flipper

1шт.

5

LF9592

BUSHING

Electric Actuator, 1", Bottom

2шт.

6

LF4242

PIN

Hydraulic Cylinder Mount, 1/2" x 4" (Flipper) Bottom

1шт.

7

PL

PROCURE LOCALLY

Nut, Lock, 1/4"

4шт.

8

PL

PROCURE LOCALLY

Washer, Lock, 1/4"

4шт.

9

PL

PROCURE LOCALLY

Washer, Flat 1/4"

4шт.

10

LF8298

SWITCH

Two-Way Electric

1шт.

11

LF8297

BOOT

Rubber Switch

1шт.

12

LF4219

U-BOLT

1/4" x 1-1/2 x 2-1/2", Grade 5

2шт.

13

LF9556

BRACKET

Electric Switch

1шт.

14

LF4220

FUSE HOLDER

Circuit, 20 Amp, In Line

1шт.

Not Illustrated

1шт.

15

LF8299

WIRE HARNESS

2-Wire x 14 Gage x 30' Wire Harness Includes: Ref. 10, 11, 13 & 14)

1шт.

Not Illustrated

1шт.
