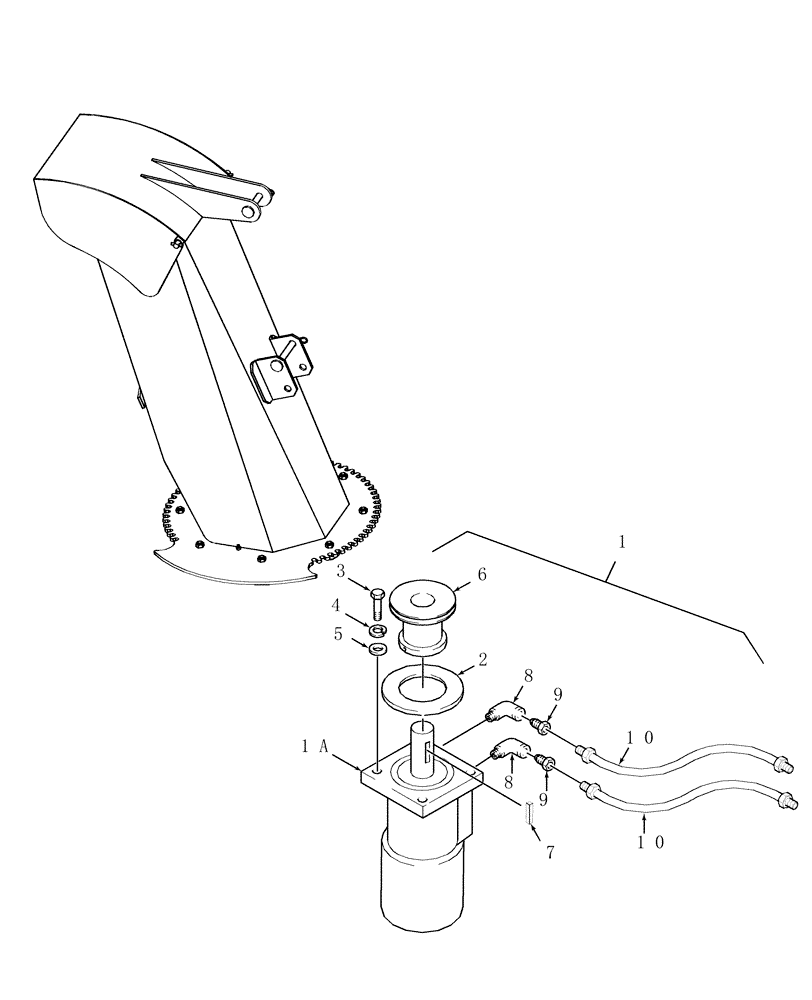

Запчасти Case IH 716C (039) - HYDRAULIC SPOUT ROTATION KIT

1

W0

ORDER WHOLEGOODS

Kit, Hydraulic Spout Rotation Kit {715445001} Includes: Ref. 1A thru 10

1шт.

Order Thru Wholegoods

1шт.

1a

LF8247

HYDRAULIC MOTOR

Rotator

1шт.

2

LF4200

WASHER

Spacer

1шт.

3

PL

PROCURE LOCALLY

Bolt, HH, G5, 3/8" x 1-1/4"

4шт.

4

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

4шт.

5

PL

PROCURE LOCALLY

Washer, Flat, 3/8"

4шт.

6

LF9553

SPROCKET

Rotator

1шт.

7

PL

PROCURE LOCALLY

Stock, Key, 1/4" Square x 1"

1шт.

8

LF4153

ELBOW

Street, 1/2", 90°

2шт.

9

LF4192

ORIFICE

Hydraulic Motor

2шт.

10

LF418420

HYDRAULIC HOSE,0.38" ID x 78.00"

1/2" Pipe Thread on Hydraulic Motor End & 3/8" Pipe Thread on Tractor Service End

2шт.
