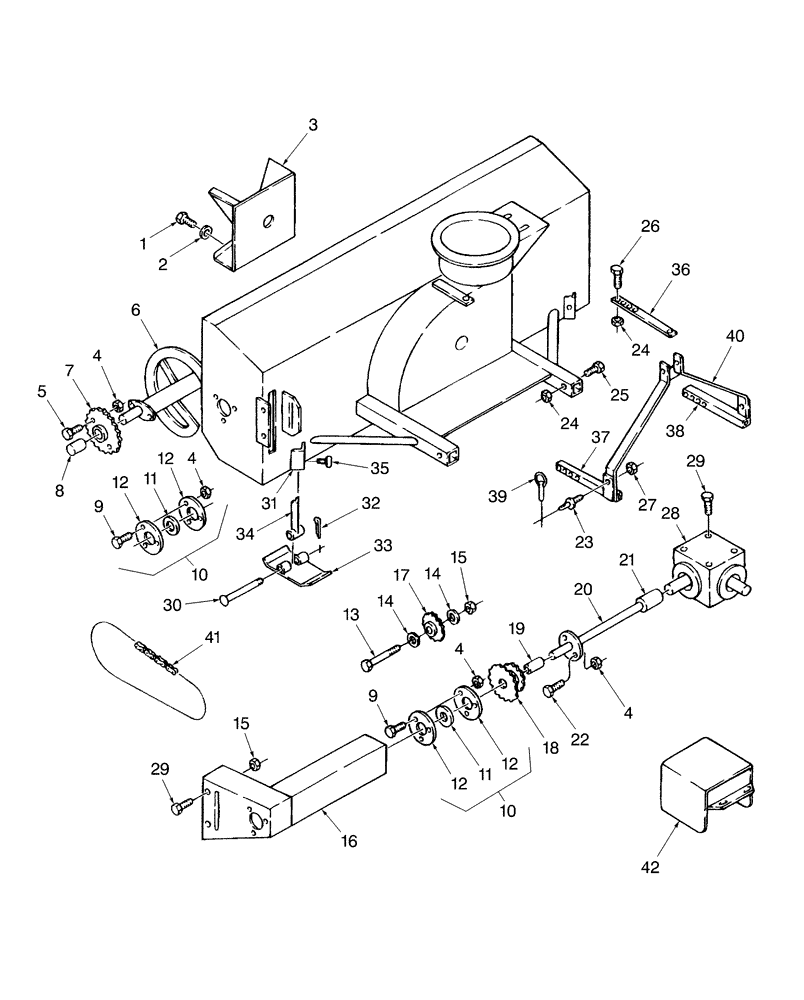

Запчасти Case IH 716C (030) - AUGER & FRAME, 60"

1

PL

PROCURE LOCALLY

Bolt, 3/8" x 3/4"

1шт.

2

PL

PROCURE LOCALLY

Washer, 3/8"

1шт.

3

LF9533

FAN

20" Dia. x 6" Deep

1шт.

4

PL

PROCURE LOCALLY

Nut, Lock, 3/8"

1шт.

4

PL

PROCURE LOCALLY

Nut, Lock, 1/4"

1шт.

5

LF4000

SHEAR BOLT

1/4" x 1-1/4"

2шт.

6

LF9667A

FILTER, ENGINE OIL

FILTER, OIL

1шт.

7

LF9622

DRIVING SPROCKET

Auger Drive

1шт.

8

LF822401

DRIVE BUSHING

Bushing, Auger Sprocket

1шт.

9

PL

PROCURE LOCALLY

Bolt, Carriage, 3/8" x 3/4"

1шт.

10

NS

NOT SERVICED

Bearing Assy. Includes: Ref. 11 & 12

2шт.

NS - Not Serviced

1шт.

11

LF8259

BEARING

2шт.

12

LF8289

PLATE

Bearing Flange

4шт.

13

PL

PROCURE LOCALLY

Bolt, 1/2" x 3"

1шт.

14

PL

PROCURE LOCALLY

Washer, Flat, 1/2"

1шт.

15

PL

PROCURE LOCALLY

Nut, Lock, 1/2"

1шт.

16

LF9546

SHIELD

Plate, Cross Shaft, W/Shield

1шт.

17

LF8228

DRIVING SPROCKET

Idler

1шт.

18

LF8323

DRIVING SPROCKET

Drive, W/Shear Flange

1шт.

19

LF823101

DRIVE BUSHING

Bushing, Drive Sprocket

1шт.

20

LF9605

SHAFT

1" x 23-1/2". Includes: Ref. 21

1шт.

21

LF8235

SPLINED

Cross Shaft

1шт.

22

LF4300

SHEAR BOLT

1/4" x 1"

2шт.

23

PL

PROCURE LOCALLY

Pin, Hitch, Cat. 0

2шт.

23

PL

PROCURE LOCALLY

Pin, Hitch, Cat. I

2шт.

24

PL

PROCURE LOCALLY

Nut, 5/8"

1шт.

25

PL

PROCURE LOCALLY

Bolt, 5/8" x 3"

1шт.

26

PL

PROCURE LOCALLY

Bolt, 5/8" x 1-3/4"

1шт.

27

PL

PROCURE LOCALLY

Nut, 7/8"

2шт.

28

LF8206

GEARBOX

Refer to Fig. 004 for Breakdown

1шт.

29

PL

PROCURE LOCALLY

Bolt, 1/2" x 1-1/4"

4шт.

30

LF4094A

FILTER, ENGINE OIL

FILTER, OIL Skid Shoe

2шт.

31

LF9543

PLATE

Mounting, Skid Shoe

2шт.

32

PL

PROCURE LOCALLY

Pin, Cotter

2шт.

33

LF9541

SKID/SHOE

Pad, Skid

2шт.

34

LF8542

ARM

Skid Pad

2шт.

35

PL

PROCURE LOCALLY

Screw, Set, Square Hd., 7/16"

2шт.

36

LF9563

ARM

Top Adjustment

1шт.

37

LF9620A

FILTER, ENGINE OIL

FILTER, OIL Mount, Left, Bottom

1шт.

38

LF9621

ARM

Mount, Right, Bottom

1шт.

39

PL

PROCURE LOCALLY

Clip, Linch Pin

2шт.

40

LF9562

HITCH

Hitch, 3-Point Mount - Replaces Ref. 38,39&40

1шт.

41

324209

CHAIN

Roller, 61-1/4" Lg., 98 Links

1шт.

42

LF641

SHIELD

PTO

1шт.

43

LF7152

CUTTING EDGE

3"x60" - Weld-On

1шт.

Not Illustrated

1шт.
