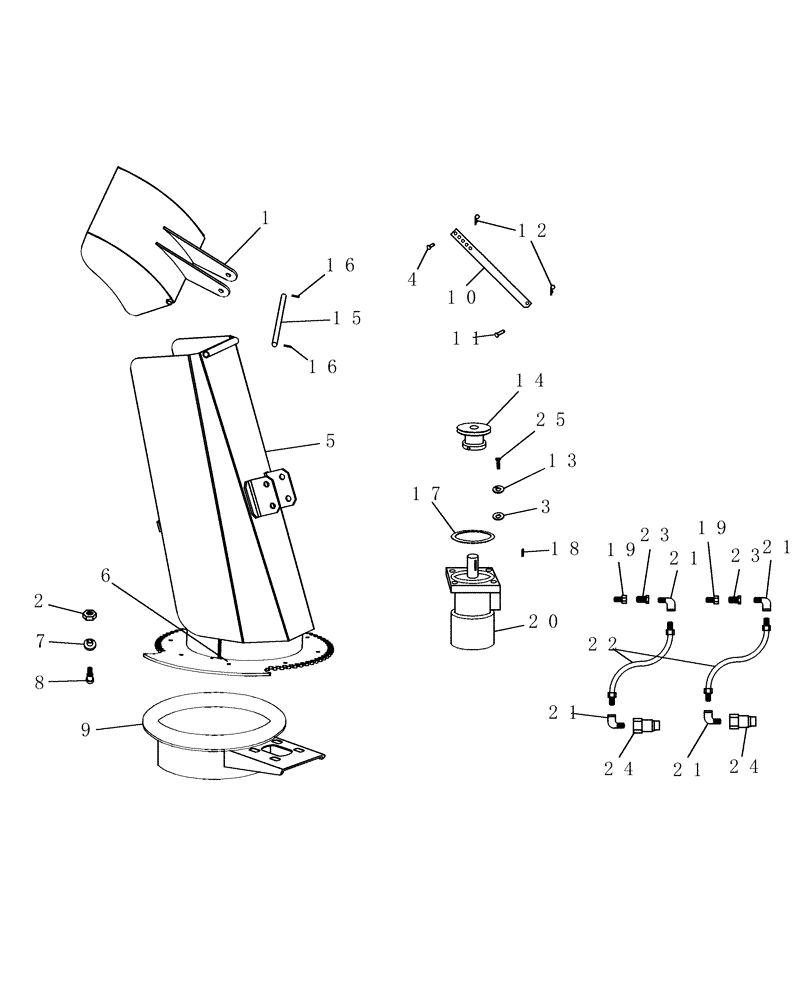

Запчасти Case IH 716B (008) - 11" SPOUT HYDRAULIC ROTATOR & MANUAL DEFLECTOR, 72"

1

LFN10523

DEFLECTOR

9-1/2" & 11" Spout Curved

1шт.

2

PL

PROCURE LOCALLY

Nut, Lock 3/8"

1шт.

3

PL

PROCURE LOCALLY

Washer, 3/8" Flat

1шт.

4

PL

PROCURE LOCALLY

Pin, Deflector 1/2" x 3" Top

1шт.

5

LFN10597

SPOUT

DISCHARGE SPOUT 11" New Style

1шт.

6

PL

PROCURE LOCALLY

Grease Zerk, Drive-In

1шт.

7

PL

PROCURE LOCALLY

Washer, 1/2" ID Step

1шт.

8

PL

PROCURE LOCALLY

Bolt, Shoulder 1/2" x 1/2" x 3/8"

1шт.

9

Blower Body, Shown For Mounting Only

1шт.

10

LF9554

BRACKET

Link, Deflector Adjustment

1шт.

11

LF4242

PIN

Deflector, 1/2" x 4" Bottom

1шт.

12

LF4089

SPRING CLIP

Clip, Hair Pin .093 x 1-5.8"

1шт.

13

PL

PROCURE LOCALLY

Washer, 3/8" Lock

1шт.

14

LF9553

SPROCKET

Spout Rotator

1шт.

15

LFN10518

PIN

Pin, 9-1/2" & 11" New Spout Deflector

1шт.

16

PL

PROCURE LOCALLY

Pin, 3/16" x 1" Roll

1шт.

17

PL

PROCURE LOCALLY

Washer, 2-7/8" OD x 1-3/4" ID x 1/8" THK

1шт.

18

PL

PROCURE LOCALLY

Key, 1/4" x 1"

1шт.

19

LF4192

ORIFICE

.031 Hydraulic Motor

1шт.

20

LF8247

HYDRAULIC MOTOR

Spout Rotator

1шт.

21

LF4153

ELBOW

1/2" Street 90 DEG

1шт.

22

LF418420

HYDRAULIC HOSE,0.38" ID x 78.00"

1шт.

23

LF4202

HYD CONNECTOR

Bushing, Reducing 1/2" x 3/8"

1шт.

24

LFN11824

HYD CONNECTOR

3/8" Hyd Quick

1шт.

25

PL

PROCURE LOCALLY

Bolt, 3/8" x 1-1/4" GR 5

1шт.
